QweakSimVDC Class Reference

Region 3 Vertical Drift Chamber. More...

#include <QweakSimVDC.hh>

Collaboration diagram for QweakSimVDC:

Public Member Functions
	QweakSimVDC ()
	~QweakSimVDC ()
void	ConstructComponent (G4VPhysicalVolume *)
void	DestroyComponent ()
void	SetVDC_MasterContainerMaterial (G4String)
void	SetVDC_SubContainerMaterial (G4String)
void	SetVDC_FoilMaterial (G4String)
void	SetVDC_WirePlaneMaterial (G4String)
void	SetVDC_G10FrameMaterial (G4String)
void	SetVDC_AluFrameMaterial (G4String)
void	SetVDC_DriftCellMaterial (G4String)
void	SetVDC_DriftCellFrontWireAngle (G4double frontWireAngle)
void	SetVDC_DriftCellBackWireAngle (G4double backWireAngle)
void	SetVDC_DriftCellFullHeight (G4double fullHeight)
void	SetVDC_DriftCellFullWidthOnFrame (G4double fullWidthOnFrame)
void	SetVDC_DriftCellFullThickness (G4double fullThickness)
void	SetVDC_DriftCellNumberPerPlane (G4int numberPerPlane)
void	SetVDC_DriftCellGeometryUpdate ()
void	SetFrontVDC_CenterPositionInX (G4double xPos, G4int pkg)
void	SetFrontVDC_CenterPositionInY (G4double yPos, G4int pkg)
void	SetFrontVDC_CenterPositionInZ (G4double zPos, G4int pkg)
void	SetVDC_RotationAngleInPhi (G4double vdc_phiangle, G4int pkg)
void	SetVDC_MeanTrackAngleInTheta (G4double angle)
G4LogicalVolume *	getVDC_LogicalVolume ()
G4VPhysicalVolume *	getVDCFront_PhysicalVolume ()
G4VPhysicalVolume *	getVDCBack_PhysicalVolume ()
G4LogicalVolume *	getVDC_WirePlane_LogicalVolume ()
G4VPhysicalVolume *	getVDC_UWirePlane_PhysicalVolume ()
G4VPhysicalVolume *	getVDC_VWirePlane_PhysicalVolume ()
G4LogicalVolume *	getVDC_DriftCellMasterContainer_LogicalVolume ()
G4VPhysicalVolume *	getVDC_DriftCellMasterContainer_PhysicalVolume ()
G4LogicalVolume *	getVDC_DriftCellFrontContainer_LogicalVolume ()
G4VPhysicalVolume *	getVDC_DriftCellFrontContainer_PhysicalVolume ()
G4LogicalVolume *	getVDC_DriftCellBackContainer_LogicalVolume ()
G4VPhysicalVolume *	getVDC_DriftCellBackContainer_PhysicalVolume ()
G4LogicalVolume *	getVDC_DriftCellFront_LogicalVolume ()
G4VPhysicalVolume *	getVDC_DriftCellFront_PhysicalVolume ()
G4LogicalVolume *	getVDC_DriftCellBack_LogicalVolume ()
G4VPhysicalVolume *	getVDC_DriftCellBack_PhysicalVolume ()
G4double	GetDCWidthOnFrame ()
G4double	GetDCFullThickness ()
G4double	GetDCUPlaneWireAngle ()
G4double	GetDCVPlaneWireAngle ()
void	SetVDCRotator (QweakSimVDCRotator *theRotator)
QweakSimVDCRotator *	GetVDCRotator ()
void	SetTriggerScintillator (QweakSimTriggerScintillator *theTriggerScintillator)
QweakSimTriggerScintillator *	GetTriggerScintillator ()

Private Member Functions
void	SetVDC_BackVDC_CenterPosition (G4int pkg)
void	SetVDC_DriftCell_MasterContainer_CenterPosition (G4int pkg)
void	PlaceVDC_MasterContainers ()

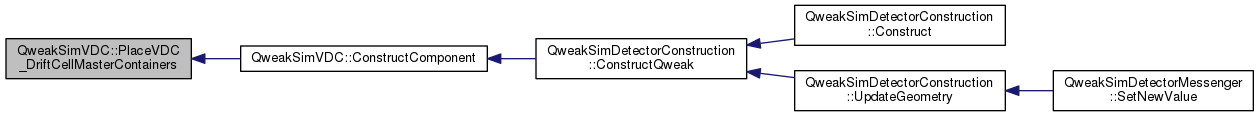

void	PlaceVDC_DriftCellMasterContainers ()

Private Attributes
QweakSimVDCRotator *	myRotator
QweakSimTriggerScintillator *	myTriggerScintillator
std::vector< G4RotationMatrix * >	Rotation_VDC_MasterContainer
G4double	MeanTrackAngle
G4double	VDC_RotationAngleInPhi [2]
std::vector < QweakSimVDCMessenger * >	VDC_Messenger
QweakSimMaterial *	pMaterial
G4VPhysicalVolume *	theMotherPV
G4LogicalVolume *	VDC_DriftCellMasterContainer_Logical
std::vector< G4VPhysicalVolume * >	VDC_DriftCellMasterContainer_Physical
G4LogicalVolume *	VDC_DriftCellFrontContainer_Logical
G4VPhysicalVolume *	VDC_DriftCellFrontContainer_Physical
G4LogicalVolume *	VDC_DriftCellBackContainer_Logical
G4VPhysicalVolume *	VDC_DriftCellBackContainer_Physical
G4Para *	VDC_DriftCellFront_Solid
G4LogicalVolume *	VDC_DriftCellFront_Logical
G4VPhysicalVolume *	VDC_DriftCellFront_Physical
G4Para *	VDC_DriftCellBack_Solid
G4LogicalVolume *	VDC_DriftCellBack_Logical
G4VPhysicalVolume *	VDC_DriftCellBack_Physical
G4double	G10Frame_Thickness
G4double	G10Frame_OuterLength
G4double	G10Frame_OuterWidth
G4double	G10Frame_InnerLength
G4double	G10Frame_InnerWidth
G4double	G10Frame_BorderWidthInX
G4double	G10Frame_BorderWidthInY
G4double	AluFrame_Thickness
G4double	AluFrame_OuterLength
G4double	AluFrame_OuterWidth
G4double	AluFrame_InnerLength
G4double	AluFrame_InnerWidth
std::vector< G4double >	VDC_CenterFront_XPos
std::vector< G4double >	VDC_CenterFront_YPos
std::vector< G4double >	VDC_CenterFront_ZPos
std::vector< G4double >	VDC_CenterBack_XPos
std::vector< G4double >	VDC_CenterBack_YPos
std::vector< G4double >	VDC_CenterBack_ZPos
G4double	VDC_FrontBackDistance
std::vector< G4double >	VDC_DriftCell_MasterContainer_XPos
std::vector< G4double >	VDC_DriftCell_MasterContainer_YPos
std::vector< G4double >	VDC_DriftCell_MasterContainer_ZPos
G4int	DriftCell_NumberPerPlane
G4double	DriftCell_FullWidthOnFrame
G4double	DriftCell_FullHeight
G4double	DriftCell_FullThickness
G4double	DriftCell_WireAngleFront
G4double	DriftCell_WireAngleBack
G4double	DriftCell_MasterContainer_FullLength
G4double	DriftCell_MasterContainer_FullHeight
G4double	DriftCell_MasterContainer_FullThickness
G4VisAttributes *	VDC_DriftCellMasterContainer_VisAtt
G4VisAttributes *	VDC_DriftCellFrontContainer_VisAtt
G4VisAttributes *	VDC_DriftCellBackContainer_VisAtt
G4VisAttributes *	VDC_DriftCellFront_VisAtt
G4VisAttributes *	VDC_DriftCellBack_VisAtt
G4VSensitiveDetector *	driftChamberSD
G4VSensitiveDetector *	driftCellFrontSD
G4VSensitiveDetector *	driftCellBackSD
G4double	VDC_AluLayer_Thickness
G4double	VDC_MylarFoil_Thickness
G4LogicalVolume *	VDC_MasterContainer_Logical
std::vector< G4VPhysicalVolume * >	VDC_MasterContainerFront_Physical
std::vector< G4VPhysicalVolume * >	VDC_MasterContainerBack_Physical
G4LogicalVolume *	VDC_SubContainer_Logical
G4VPhysicalVolume *	VDC_SubContainer_Physical
G4SubtractionSolid *	VDC_G10Frame_Solid
G4LogicalVolume *	VDC_G10Frame_Logical
G4VPhysicalVolume *	VDC_G10Frame_Physical
G4SubtractionSolid *	VDC_AluFrame_Solid
G4LogicalVolume *	VDC_AluFrame_Logical
G4VPhysicalVolume *	VDC_AluTopFrame_Physical
G4VPhysicalVolume *	VDC_AluBottomFrame_Physical
G4LogicalVolume *	VDC_MylarFoil_Logical
G4LogicalVolume *	VDC_AluLayer_Logical
G4LogicalVolume *	VDC_WirePlane_Logical
G4VPhysicalVolume *	VDC_UPlane_Physical
G4VPhysicalVolume *	VDC_VPlane_Physical
G4LogicalVolume *	VDC_AMA_FoilContainer_Logical
G4LogicalVolume *	VDC_AM_FoilContainer_Logical
G4LogicalVolume *	VDC_MA_FoilContainer_Logical
G4VPhysicalVolume *	VDC_TopGasFoilContainer_Physical
G4VPhysicalVolume *	VDC_TopHVFoilContainer_Physical
G4VPhysicalVolume *	VDC_CenterHVFoilContainer_Physical
G4VPhysicalVolume *	VDC_BottomHVFoilContainer_Physical
G4VPhysicalVolume *	VDC_BottomGasFoilContainer_Physical
G4VisAttributes *	VDC_MasterContainer_VisAtt
G4VisAttributes *	VDC_SubContainer_VisAtt
G4VisAttributes *	VDC_G10Frame_VisAtt
G4VisAttributes *	VDC_AluFrame_VisAtt
G4VisAttributes *	VDC_AMA_FoilContainer_VisAtt
G4VisAttributes *	VDC_AM_FoilContainer_VisAtt
G4VisAttributes *	VDC_MA_FoilContainer_VisAtt
G4VisAttributes *	VDC_AluLayer_VisAtt
G4VisAttributes *	VDC_MylarFoil_VisAtt
G4VisAttributes *	VDC_WirePlane_VisAtt
G4double	fGammaCut
G4double	fElectronCut
G4double	fPositronCut
G4Region *	fRegGasDet

Static Private Attributes
static const G4bool	fEnablePAI = false

Detailed Description

Region 3 Vertical Drift Chamber.

Placeholder for a long explaination

Definition at line 67 of file QweakSimVDC.hh.

Constructor & Destructor Documentation

QweakSimVDC::QweakSimVDC

(

)

Definition at line 42 of file QweakSimVDC.cc.

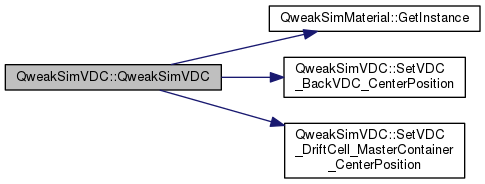

References AluFrame_InnerLength, AluFrame_InnerWidth, AluFrame_OuterLength, AluFrame_OuterWidth, AluFrame_Thickness, DriftCell_FullHeight, DriftCell_FullThickness, DriftCell_FullWidthOnFrame, DriftCell_MasterContainer_FullHeight, DriftCell_MasterContainer_FullLength, DriftCell_MasterContainer_FullThickness, DriftCell_NumberPerPlane, DriftCell_WireAngleBack, DriftCell_WireAngleFront, fElectronCut, fGammaCut, fPositronCut, fRegGasDet, G10Frame_BorderWidthInX, G10Frame_BorderWidthInY, G10Frame_InnerLength, G10Frame_InnerWidth, G10Frame_OuterLength, G10Frame_OuterWidth, G10Frame_Thickness, QweakSimMaterial::GetInstance(), MeanTrackAngle, myRotator, pMaterial, Rotation_VDC_MasterContainer, SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), VDC_AluBottomFrame_Physical, VDC_AluFrame_Logical, VDC_AluFrame_VisAtt, VDC_AluLayer_Thickness, VDC_AluTopFrame_Physical, VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, VDC_DriftCell_MasterContainer_ZPos, VDC_DriftCellBack_Logical, VDC_DriftCellBack_Physical, VDC_DriftCellBack_Solid, VDC_DriftCellBack_VisAtt, VDC_DriftCellBackContainer_Logical, VDC_DriftCellBackContainer_Physical, VDC_DriftCellBackContainer_VisAtt, VDC_DriftCellFront_Logical, VDC_DriftCellFront_Physical, VDC_DriftCellFront_Solid, VDC_DriftCellFront_VisAtt, VDC_DriftCellFrontContainer_Logical, VDC_DriftCellFrontContainer_Physical, VDC_DriftCellFrontContainer_VisAtt, VDC_DriftCellMasterContainer_Logical, VDC_DriftCellMasterContainer_Physical, VDC_FrontBackDistance, VDC_G10Frame_Logical, VDC_G10Frame_Physical, VDC_G10Frame_VisAtt, VDC_MasterContainer_Logical, VDC_MasterContainer_VisAtt, VDC_MasterContainerBack_Physical, VDC_MasterContainerFront_Physical, VDC_Messenger, VDC_MylarFoil_Thickness, VDC_RotationAngleInPhi, VDC_SubContainer_Logical, VDC_SubContainer_Physical, VDC_SubContainer_VisAtt, VDC_UPlane_Physical, VDC_VPlane_Physical, and VDC_WirePlane_Logical.

{
  G4cout << G4endl << "###### Calling QweakSimVDC::QweakVDC() " << G4endl << G4endl;

  //===============================
  // cuts for G4Region and PAIModel
  //===============================
  fGammaCut    = 1*mm;
  fElectronCut = 1*mm;
  fPositronCut = 1*mm;

  fRegGasDet = NULL;

  //========================
  //  DriftCell Array setup
  //=======================

 VDC_DriftCellMasterContainer_Logical  = NULL;
 //VDC_DriftCellMasterContainer_Physical = NULL;

 VDC_DriftCellFrontContainer_Logical  = NULL;
 VDC_DriftCellFrontContainer_Physical = NULL;

 VDC_DriftCellBackContainer_Logical  = NULL;
 VDC_DriftCellBackContainer_Physical = NULL;

 VDC_DriftCellFront_Solid    = NULL;
 VDC_DriftCellFront_Logical  = NULL;
 VDC_DriftCellFront_Physical = NULL;

 VDC_DriftCellBack_Solid    = NULL;
 VDC_DriftCellBack_Logical  = NULL;
 VDC_DriftCellBack_Physical = NULL;

 VDC_DriftCellFrontContainer_VisAtt = NULL;
 VDC_DriftCellBackContainer_VisAtt  = NULL;
 VDC_DriftCellFront_VisAtt          = NULL;
 VDC_DriftCellBack_VisAtt           = NULL;


//QweakSimVDC_DriftCellSD::SetNumberOfDriftCellsPerPlane(401);

  // define target geometry values
  G10Frame_Thickness        =   0.5*2.54*cm;
  G10Frame_BorderWidthInX   =  15.0*cm;
  G10Frame_BorderWidthInY   =  15.0*cm;
  G10Frame_InnerLength      = 210.0*cm; // 78 inch
  G10Frame_InnerWidth       =  50.0*cm; // 18 inch

  G10Frame_OuterLength      = G10Frame_InnerLength + G10Frame_BorderWidthInX;
  G10Frame_OuterWidth       = G10Frame_InnerWidth  + G10Frame_BorderWidthInY;


  AluFrame_Thickness        =   0.5*2.54*cm;
  AluFrame_OuterLength      = 240.0*cm; // to be checked with SW
  AluFrame_OuterWidth       = 120.0*cm; // to be checked with SW
  AluFrame_InnerLength      = 210.0*cm;
  AluFrame_InnerWidth       =  50.0*cm;

  VDC_CenterFront_XPos.resize(2,0);
  VDC_CenterFront_YPos.resize(2,0);
  VDC_CenterFront_ZPos.resize(2,0);
  VDC_CenterBack_XPos.resize(2,0);
  VDC_CenterBack_YPos.resize(2,0);
  VDC_CenterBack_ZPos.resize(2,0);

  MeanTrackAngle                =  24.43*degree;  //20.57*degree;  // also tilting angle of VDcs  //
  VDC_RotationAngleInPhi[0]     =   0.0*degree;   // normally 0.0*degree = 12 o'clock = octant 1
  VDC_RotationAngleInPhi[1]     =  90*degree; //VDC_RotationAngleInPhi[0] + 180.0*degree;

  for(int i = 0; i < 2; i++){//temp loop to assign values for package 2. Although same as package 1, will be rotated to different octant.
    VDC_CenterFront_XPos[i]        =   0.0*cm;
    VDC_CenterFront_YPos[i]        = 276.165*cm; // 280.0*cm;  // SW for 20.75 deg
    VDC_CenterFront_ZPos[i]        = 443.920*cm; //480.0*cm;   // SW: 330.0 +107.0
    //VDC_CenterFront_ZPos        = -700*cm;   // for testing

    VDC_FrontBackDistance       = 53.18*cm; // center to center
    // updated 2012-04-09 by wdconinc based on qwanalysis geometry
    SetVDC_BackVDC_CenterPosition(i);
  }




  // How many drift cells per plane
  DriftCell_NumberPerPlane   =   341;
  DriftCell_FullWidthOnFrame =  11.1125*mm;
  DriftCell_FullHeight       =  70.0*cm;
  DriftCell_FullThickness    =   2.54*cm;
  DriftCell_WireAngleFront   =  65.57; // 63.43*degree; // (90-26.57)*degree
  DriftCell_WireAngleBack    =  180.0 - DriftCell_WireAngleFront;

  DriftCell_MasterContainer_FullThickness    =    6.0*cm;   //extral large value
  DriftCell_MasterContainer_FullHeight       =   85.00*cm;  //extral large value
  DriftCell_MasterContainer_FullLength       =  600.00*cm;  //extral large value

  VDC_DriftCell_MasterContainer_XPos.resize(2,0);
  VDC_DriftCell_MasterContainer_YPos.resize(2,0);
  VDC_DriftCell_MasterContainer_ZPos.resize(2,0);

  SetVDC_DriftCell_MasterContainer_CenterPosition(0);
  SetVDC_DriftCell_MasterContainer_CenterPosition(1);



  pMaterial = QweakSimMaterial::GetInstance();



  //===============
  // new VDC setup
  //===============

  // define Rotation matrix for MasterContainer orientated in MotherVolume
  //Rotation_VDC_MasterContainer      = NULL;
  //Rotation_VDC_MasterContainer      = new G4RotationMatrix();

  VDC_MasterContainer_Logical       = NULL;
  //VDC_MasterContainerFront_Physical = NULL;
  //VDC_MasterContainerBack_Physical  = NULL;

  VDC_SubContainer_Logical          = NULL;
  VDC_SubContainer_Physical         = NULL;

  VDC_G10Frame_Logical              = NULL;
  VDC_G10Frame_Physical             = NULL;

  VDC_AluFrame_Logical              = NULL;
  VDC_AluTopFrame_Physical          = NULL;
  VDC_AluBottomFrame_Physical       = NULL;

  VDC_MasterContainer_VisAtt        = NULL;
  VDC_SubContainer_VisAtt           = NULL;
  VDC_G10Frame_VisAtt               = NULL;
  VDC_AluFrame_VisAtt               = NULL;

  VDC_WirePlane_Logical             = NULL;
  VDC_UPlane_Physical               = NULL;
  VDC_VPlane_Physical               = NULL;


  VDC_AluLayer_Thickness            = 1000*angstrom;   //   0.1um
  VDC_MylarFoil_Thickness           = 6.25*micrometer; //   1/4*mil

  //Resizing vectors and setting values to 0
  VDC_MasterContainerFront_Physical.resize(2,0);
  VDC_MasterContainerBack_Physical.resize(2,0);
  VDC_DriftCellMasterContainer_Physical.resize(2,0);
  Rotation_VDC_MasterContainer.resize(2,0);
  VDC_Messenger.resize(2,0);

  // Creates a messenger for each VDC package (0 for Package 1 and 1 for Package 2)
  for(size_t i = 0; i < VDC_Messenger.size(); i++){
    VDC_Messenger[i] = new QweakSimVDCMessenger(this, i);
    VDC_Messenger.at(i)->SetVDCRotator(myRotator);
  }
}

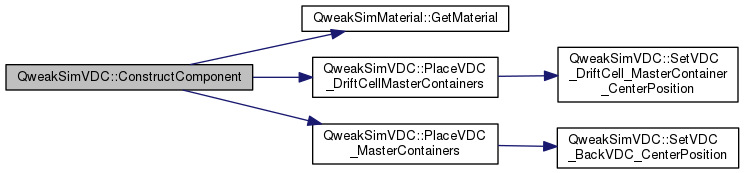

Here is the call graph for this function:

QweakSimVDC::~QweakSimVDC

(

)

Definition at line 201 of file QweakSimVDC.cc.

References VDC_DriftCellBack_VisAtt, VDC_DriftCellBackContainer_VisAtt, VDC_DriftCellFront_VisAtt, VDC_DriftCellFrontContainer_VisAtt, VDC_DriftCellMasterContainer_VisAtt, and VDC_WirePlane_VisAtt.

{
  //if (driftChamberSD)   delete driftChamberSD;
  //if (driftCellFrontSD) delete driftCellFrontSD;
  //if (driftCellBackSD)  delete driftCellBackSD;

  if (VDC_DriftCellFront_VisAtt)           delete VDC_DriftCellFront_VisAtt;
  if (VDC_DriftCellBack_VisAtt)            delete VDC_DriftCellBack_VisAtt;
  if (VDC_DriftCellFrontContainer_VisAtt)  delete VDC_DriftCellFrontContainer_VisAtt;
  if (VDC_DriftCellBackContainer_VisAtt)   delete VDC_DriftCellBackContainer_VisAtt;
  if (VDC_DriftCellMasterContainer_VisAtt) delete VDC_DriftCellMasterContainer_VisAtt;

  if (VDC_WirePlane_VisAtt)                delete VDC_WirePlane_VisAtt;
}

Member Function Documentation

void QweakSimVDC::ConstructComponent

(

G4VPhysicalVolume *

MotherVolume

)

Definition at line 218 of file QweakSimVDC.cc.

References AluFrame_InnerLength, AluFrame_InnerWidth, AluFrame_OuterLength, AluFrame_OuterWidth, AluFrame_Thickness, DriftCell_FullHeight, DriftCell_FullThickness, DriftCell_FullWidthOnFrame, DriftCell_MasterContainer_FullHeight, DriftCell_MasterContainer_FullLength, DriftCell_MasterContainer_FullThickness, DriftCell_NumberPerPlane, DriftCell_WireAngleBack, DriftCell_WireAngleFront, driftCellBackSD, driftCellFrontSD, driftChamberSD, fElectronCut, fEnablePAI, fGammaCut, fPositronCut, fRegGasDet, G10Frame_InnerLength, G10Frame_InnerWidth, G10Frame_OuterLength, G10Frame_OuterWidth, G10Frame_Thickness, QweakSimMaterial::GetMaterial(), PlaceVDC_DriftCellMasterContainers(), PlaceVDC_MasterContainers(), pMaterial, pSurfChk, theMotherPV, VDC_AluBottomFrame_Physical, VDC_AluFrame_Logical, VDC_AluFrame_Solid, VDC_AluFrame_VisAtt, VDC_AluLayer_Logical, VDC_AluLayer_Thickness, VDC_AluLayer_VisAtt, VDC_AluTopFrame_Physical, VDC_AM_FoilContainer_Logical, VDC_AM_FoilContainer_VisAtt, VDC_AMA_FoilContainer_Logical, VDC_AMA_FoilContainer_VisAtt, VDC_BottomGasFoilContainer_Physical, VDC_BottomHVFoilContainer_Physical, VDC_CenterHVFoilContainer_Physical, VDC_DriftCellBack_Logical, VDC_DriftCellBack_Physical, VDC_DriftCellBack_Solid, VDC_DriftCellBack_VisAtt, VDC_DriftCellBackContainer_Logical, VDC_DriftCellBackContainer_Physical, VDC_DriftCellBackContainer_VisAtt, VDC_DriftCellFront_Logical, VDC_DriftCellFront_Physical, VDC_DriftCellFront_Solid, VDC_DriftCellFront_VisAtt, VDC_DriftCellFrontContainer_Logical, VDC_DriftCellFrontContainer_Physical, VDC_DriftCellFrontContainer_VisAtt, VDC_DriftCellMasterContainer_Logical, VDC_DriftCellMasterContainer_VisAtt, VDC_G10Frame_Logical, VDC_G10Frame_Physical, VDC_G10Frame_Solid, VDC_G10Frame_VisAtt, VDC_MA_FoilContainer_Logical, VDC_MA_FoilContainer_VisAtt, VDC_MasterContainer_Logical, VDC_MasterContainer_VisAtt, VDC_MylarFoil_Logical, VDC_MylarFoil_Thickness, VDC_MylarFoil_VisAtt, VDC_SubContainer_Logical, VDC_SubContainer_Physical, VDC_SubContainer_VisAtt, VDC_TopGasFoilContainer_Physical, VDC_TopHVFoilContainer_Physical, VDC_UPlane_Physical, VDC_VPlane_Physical, VDC_WirePlane_Logical, and VDC_WirePlane_VisAtt.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
  G4cout << G4endl << "###### Calling QweakSimVDC::ConstructComponent() " << G4endl << G4endl;
  theMotherPV = MotherVolume;

  // assign material-

  G4Material* VDC_DriftCell_Material                = pMaterial->GetMaterial("Vacuum");
  G4Material* VDC_DriftCellContainer_Material       = pMaterial->GetMaterial("Vacuum");

  G4Material* VDC_MasterContainer_Material          = pMaterial->GetMaterial("Air");
  G4Material* VDC_SubContainer_Material             = pMaterial->GetMaterial("Ar-C2H6_40-60");
  G4Material* VDC_G10Frame_Material                 = pMaterial->GetMaterial("NemaG10");
  G4Material* VDC_AluFrame_Material                 = pMaterial->GetMaterial("Aluminum");

  G4Material* VDC_WirePlane_Material                = pMaterial->GetMaterial("Vacuum");
  G4Material* VDC_AluLayer_Material                 = pMaterial->GetMaterial("Aluminum");
  G4Material* VDC_MylarFoil_Material                = pMaterial->GetMaterial("Mylar");

  //==========================================================================================================

  //============================
  // new code of the VDC setup
  //============================


  //----------------------------
  // Define VDC MasterContainer
  //----------------------------

  // define  MasterContainer
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_MasterContainer_Solid" << G4endl << G4endl;

  G4double NumberOfG10FramesInsideVDC = 8;
  G4double NumberOfAluFramesInsideVDC = 2;


  G4Box* VDC_MasterContainer_Solid    = new G4Box("VDC_MasterContainer_Sol",
              0.5* AluFrame_OuterLength + 1*mm,
              0.5* AluFrame_OuterWidth  + 1*mm,
              0.5* (G10Frame_Thickness*NumberOfG10FramesInsideVDC+ AluFrame_Thickness*NumberOfAluFramesInsideVDC) + 1*mm);

  // define VDC_MasterContainer_Logical volume of drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_MasterContainer_Logical " << G4endl << G4endl;

  VDC_MasterContainer_Logical  = new G4LogicalVolume(VDC_MasterContainer_Solid,
                 VDC_MasterContainer_Material,
                 "VDC_MasterContainer_Log",
                 0,0,0);


  PlaceVDC_MasterContainers(); //Places physical volumes of VDCs
  //-----------------------
  // Define Stesalit frame
  //-----------------------

  //===============================================================================
  // Definition of the VDC Stesalit Frame ( symbolizes the stack of real frames )
  //===============================================================================

  // define outer frame solid
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_G10OuterFrame_Solid" << G4endl << G4endl;

  G4Box* VDC_G10OuterFrame_Solid    = new G4Box("VDC_G10OuterFrame_Sol",
            0.5* G10Frame_OuterLength,
            0.5* G10Frame_OuterWidth,
            0.5* G10Frame_Thickness*NumberOfG10FramesInsideVDC);

  // define inner frame solid
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_G10InnerFrame_Solid" << G4endl << G4endl;

  G4Box* VDC_G10InnerFrame_Solid    = new G4Box("VDC_G10InnerFrame_Sol",
            0.5* G10Frame_InnerLength,
            0.5* G10Frame_InnerWidth,
            0.5* G10Frame_Thickness*NumberOfG10FramesInsideVDC + 0.1*mm);


 // create frame by subtracting outer framebox from inner framebox
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_G10Frame_Solid" << G4endl << G4endl;

  VDC_G10Frame_Solid  =  new G4SubtractionSolid("VDC_G10Frame_Solid",
            VDC_G10OuterFrame_Solid,
            VDC_G10InnerFrame_Solid);


  G4cout << G4endl << "###### QweakSimVDC: Define VDC_G10Frame_Logical" << G4endl << G4endl;
  VDC_G10Frame_Logical  = new G4LogicalVolume(VDC_G10Frame_Solid,
                VDC_G10Frame_Material,
                "VDC_G10Frame_Log",
                0,0,0);


  // define the position of the Frame within the VDC MasterContainer: put it in the center of MasterContainer
  G4ThreeVector position_G10Frame = G4ThreeVector(0. , 0. , 0.);

  G4cout << G4endl << "###### QweakSimVDC: Define VDC_G10Frame_Physical" << G4endl << G4endl;

  VDC_G10Frame_Physical =   new G4PVPlacement(0,                          // no rotation matrix needed
                position_G10Frame,
                VDC_G10Frame_Logical,
                "VDC_G10Frame_Physical",
                VDC_MasterContainer_Logical,
                0,
                0,
                pSurfChk); //copy number: 0




  //-----------------------
  // Define Aluminum frame
  //-----------------------

  //=====================================================================================
  // Definition of the VDC Alu Frame ( symbolizes the top and bottom alu support frames)
  //=====================================================================================

  // define outer frame solid
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluOuterFrame_Solid" << G4endl << G4endl;

  G4Box* VDC_AluOuterFrame_Solid    = new G4Box("VDC_AluOuterFrame_Sol",
            0.5* AluFrame_OuterLength,
            0.5* AluFrame_OuterWidth,
            0.5* AluFrame_Thickness);

  // define inner frame solid
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluInnerFrame_Solid" << G4endl << G4endl;

  G4Box* VDC_AluInnerFrame_Solid    = new G4Box("VDC_AluInnerFrame_Sol",
            0.5* AluFrame_InnerLength,
            0.5* AluFrame_InnerWidth,
            0.5* AluFrame_Thickness + 0.1*mm);


  // create frame by subtracting outer framebox from inner framebox
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluFrame_Solid" << G4endl << G4endl;

  VDC_AluFrame_Solid  =  new G4SubtractionSolid("VDC_AluFrame_Solid",
            VDC_AluOuterFrame_Solid,
            VDC_AluInnerFrame_Solid);


  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluFrame_Logical" << G4endl << G4endl;

  VDC_AluFrame_Logical  = new G4LogicalVolume(VDC_AluFrame_Solid,
                VDC_AluFrame_Material,
                "VDC_AluFrame_Log",
                0,0,0);


  // define the position of the Frame within the VDC MasterContainer: put it in the center of MasterContainer
  // AluTopFrame     = downstream side, looking to beam dunp
  // AluBottomFrame  = upstream side, looking to target

  G4ThreeVector position_AluTopFrame    = G4ThreeVector(0. , 0. ,  0.5*(G10Frame_Thickness*NumberOfG10FramesInsideVDC + AluFrame_Thickness));
  G4ThreeVector position_AluBottomFrame = G4ThreeVector(0. , 0. , -0.5*(G10Frame_Thickness*NumberOfG10FramesInsideVDC + AluFrame_Thickness));

  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluTopFrame_Physical" << G4endl << G4endl;

  VDC_AluTopFrame_Physical =   new G4PVPlacement(0,                          // no rotation matrix needed
             position_AluTopFrame,
             VDC_AluFrame_Logical,
             "VDC_AluTopFrame_Physical",
             VDC_MasterContainer_Logical,
             0,
             0,
             pSurfChk); //copy number: 0

  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluBottomFrame_Physical" << G4endl << G4endl;

  VDC_AluBottomFrame_Physical =   new G4PVPlacement(0,                          // no rotation matrix needed
                position_AluBottomFrame,
                VDC_AluFrame_Logical,
                "VDC_AluBottomFrame_Physical",
                VDC_MasterContainer_Logical,
                0,
                1,
                pSurfChk); //copy number: 1 , to be checked if necessary



  //======================================================================================
  // Definition of the VDC SubContainer holding the stack of foil planes and readout plane
  //======================================================================================


  // define outer frame solid
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_SubContainer_Solid" << G4endl << G4endl;

  G4Box* VDC_SubContainer_Solid    = new G4Box("VDC_OuterFrame_Sol",
                 0.5* G10Frame_InnerLength                          - 100.0*micrometer,   // X
                 0.5* G10Frame_InnerWidth                           - 100.0*micrometer,   // Y
                 0.5* G10Frame_Thickness*NumberOfG10FramesInsideVDC + 100.0*micrometer);  // Z

  G4cout << G4endl << "###### QweakSimVDC: Define VDC_SubContainer_Logical" << G4endl << G4endl;

  VDC_SubContainer_Logical  = new G4LogicalVolume(VDC_SubContainer_Solid,
              VDC_SubContainer_Material,
              "VDC_SubContainer_Log",
              0,0,0);


  // define the position of the SubContainer within the VDC MasterContainer: put it in the center
  G4ThreeVector position_SubContainer = G4ThreeVector(0. , 0. , 0.);

  G4cout << G4endl << "###### QweakSimVDC: Define VDC_SubContainer_Physical" << G4endl << G4endl;

  VDC_SubContainer_Physical =   new G4PVPlacement(0,                          // no rotation matrix needed
              position_SubContainer,
              VDC_SubContainer_Logical,
              "VDC_SubContainer_Physical",
              VDC_MasterContainer_Logical,
              0,
              0,
              pSurfChk); //copy number: 0



  //====================================================================
  // Definition of the VDC Wire Plane
  //====================================================================

   // define wire plane solid
   G4cout << G4endl << "###### QweakSimVDC: Define VDC_WirePlane_Solid" << G4endl << G4endl;

   G4Box* VDC_WirePlane_Solid    = new G4Box("VDC_WirePlane_Sol",
               VDC_SubContainer_Solid->GetXHalfLength() -1.0*micrometer,
               VDC_SubContainer_Solid->GetYHalfLength() -1.0*micrometer,
               0.5* 10.0*micrometer);

   // define wire plane logical
   G4cout << G4endl << "###### QweakSimVDC: Define VDC_WirePlane_Logical" << G4endl << G4endl;

   VDC_WirePlane_Logical  = new G4LogicalVolume(VDC_WirePlane_Solid,
            VDC_WirePlane_Material,
            "VDC_WirePlane_Log",
            0,0,0);

   // define wire planes physical
   G4cout << G4endl << "###### QweakSimVDC: Define VDC_WirePlane_Physical" << G4endl << G4endl;


   // place two VDC_Plane_Logical alias U-Plane and V-Plane into the VDC SubContainer

  // define VDC Plane position relativ to container
  //  U Plane    = downstream side , looking to beam dunp
  //  V Plane    = upstream side   , looking to target

  G4ThreeVector position_Uplane    = G4ThreeVector( 0.0*cm, 0.0*cm, -1.0 * G10Frame_Thickness);
  G4ThreeVector position_Vplane    = G4ThreeVector( 0.0*cm, 0.0*cm,        G10Frame_Thickness);

  VDC_UPlane_Physical = new G4PVPlacement(0,
            position_Uplane,
            VDC_WirePlane_Logical,
            "VDC_UPlane_Physical",
            VDC_SubContainer_Logical,
            0,
            0,
            pSurfChk); //copy number: 0

  VDC_VPlane_Physical = new G4PVPlacement(0,
            position_Vplane,
            VDC_WirePlane_Logical,
            "VDC_VPlane_Physical",
            VDC_SubContainer_Logical,
            0,
            1,
            pSurfChk); //copy number: 1



  //%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

  //====================================================================
  //             Definition of the VDC Foils
  //====================================================================

  //============================================
  // Define a 6.25 micrometer thick Mylar foil
  //============================================

  G4Box* VDC_MylarFoil_Solid    = new G4Box("VDC_MylarFoil_Sol",
              VDC_SubContainer_Solid->GetXHalfLength() -20.0*micrometer ,
              VDC_SubContainer_Solid->GetYHalfLength() -20.0*micrometer,
              0.5* VDC_MylarFoil_Thickness);

  // define foil logical
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_MylarFoil_Logical" << G4endl << G4endl;

  VDC_MylarFoil_Logical  = new G4LogicalVolume(VDC_MylarFoil_Solid,
                 VDC_MylarFoil_Material,
                 "VDC_MylarFoil_Log",
                 0,0,0);


  //=========================================================
  // Define a 1000 Angstrom (= 0.1 micrometer) thick Alu layer
  //=========================================================

  // define solid
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluLayer_Solid" << G4endl << G4endl;

  G4Box* VDC_AluLayer_Solid    =  new G4Box("VDC_AluLayer_Sol",
              VDC_SubContainer_Solid->GetXHalfLength() -20.0*micrometer,
              VDC_SubContainer_Solid->GetYHalfLength() -20.0*micrometer,
              0.5* VDC_AluLayer_Thickness);

  // define logical
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluFoil_Logical" << G4endl << G4endl;

  VDC_AluLayer_Logical  = new G4LogicalVolume(VDC_AluLayer_Solid,
                VDC_AluLayer_Material,
                "VDC_AluLayer_Log",
                0,0,0);


  //====================================================================================================
  //                      create the double sided foil container : Alu-Mylar-Alu == AMA
  //
  // (define a container holding a 6.25um thick Mylar foil coated with 0.1um Aluminum on each side.
  //====================================================================================================


  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AMA_FoilContainer_Solid" << G4endl << G4endl;

  G4Box* VDC_AMA_FoilContainer_Solid    = new G4Box("VDC_AMA_FoilContainer_Sol",
                  VDC_SubContainer_Solid->GetXHalfLength() -10.0*micrometer,
                  VDC_SubContainer_Solid->GetYHalfLength() -10.0*micrometer,
                  0.5* (VDC_MylarFoil_Thickness + 2*VDC_AluLayer_Thickness) + 10.0*micrometer );

  // define foil logical
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AMA_FoilContainer_Logical" << G4endl << G4endl;

  VDC_AMA_FoilContainer_Logical  = new G4LogicalVolume(VDC_AMA_FoilContainer_Solid,
                   VDC_SubContainer_Material,
                   "VDC_AMA_FoilContainer_Log",
                   0,0,0);


  //========================================================================
  // Place the 6.25 micrometer thick Mylar foil inside VDC_AMA_FoilContainer
  //========================================================================


  // place 6.25um thick Mylar foil into VDC_DoubleSidedFoilContainer: center
  new G4PVPlacement(0,
      G4ThreeVector(0. , 0. , 0. ),
      VDC_MylarFoil_Logical,
      "VDC_MylarFoil_Physical",
        VDC_AMA_FoilContainer_Logical,
        0,
        0,
        pSurfChk); //copy number 0


  //=========================================================================================
  // Place the  1000 Angstrom (= 0.1 micrometer) thick Alu layers inside VDC_AMA_FoilContainer
  //=========================================================================================

  // define physical
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AluLayer_Physical" << G4endl << G4endl;

  // Z Location of the AluLayer within VDC_AMA_FoilContainer:
  // (first go to border of box and go half the alu layer thickness back)

  G4double _LocalPostionInZ_TopAluLayer =
      +  0.5*(VDC_MylarFoil_Thickness + 2*VDC_AluLayer_Thickness) - 0.5*  VDC_AluLayer_Thickness;

  G4double _LocalPostionInZ_BottomAluLayer =
      -  0.5*(VDC_MylarFoil_Thickness + 2*VDC_AluLayer_Thickness) + 0.5*  VDC_AluLayer_Thickness;


  G4cout << G4endl << "###### QweakSimVDC: Place Top AluLayer inside VDC_AMA_FoilContainer_Logical" << G4endl << G4endl;
  // place alu top layer
  new G4PVPlacement(0,
        G4ThreeVector(0. , 0. , _LocalPostionInZ_TopAluLayer ),
        VDC_AluLayer_Logical,
        "VDC_TopAluLayer_Physical",
        VDC_AMA_FoilContainer_Logical,
        0,
        0,
        pSurfChk); //copy number for top layer

  G4cout << G4endl << "###### QweakSimVDC: Place Bottom AluLayer inside VDC_AMA_FoilContainer_Logical" << G4endl << G4endl;
  // place alu bottom layer
  new G4PVPlacement(0,
        G4ThreeVector(0. , 0. , _LocalPostionInZ_BottomAluLayer ),
        VDC_AluLayer_Logical,
        "VDC_BottomAluLayer_Physical",
        VDC_AMA_FoilContainer_Logical,
        0,
        1,
        pSurfChk); //copy number for bottom layer



  //====================================================================================================
  //                      create the "AM" sided foil container: Alu-Mylar (alias "AM")
  //
  // (define a container holding a 6.25um thick Mylar foil coated with 0.1um Aluminum on top side.
  //====================================================================================================


  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AM_FoilContainer_Solid" << G4endl << G4endl;

  G4Box* VDC_AM_FoilContainer_Solid    = new G4Box("VDC_AM_FoilContainer_Sol",
               VDC_SubContainer_Solid->GetXHalfLength() -10.0*micrometer,
               VDC_SubContainer_Solid->GetYHalfLength() -10.0*micrometer,
               0.5* (VDC_MylarFoil_Thickness + VDC_AluLayer_Thickness) );

  // define foil logical
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_AM_FoilContainer_Logical" << G4endl << G4endl;

  VDC_AM_FoilContainer_Logical  = new G4LogicalVolume(VDC_AM_FoilContainer_Solid,
                  VDC_SubContainer_Material,
                  "VDC_AM_FoilContainer_Log",
                  0,0,0);


  //=======================================================================
  // Place the 6.25 micrometer thick Mylar foil inside VDC_AM_FoilContainer
  //=======================================================================

  G4double position_MylarFoilInsideAMContainer_Z = -1*VDC_AM_FoilContainer_Solid->GetZHalfLength() + VDC_MylarFoil_Solid->GetZHalfLength();

  G4cout << G4endl << "###### QweakSimVDC: Place Mylar inside VDC_AM_FoilContainer_Logical" << G4endl << G4endl;

  new G4PVPlacement(0,
        G4ThreeVector(0. , 0. , position_MylarFoilInsideAMContainer_Z ),
        VDC_MylarFoil_Logical,
        "VDC_MylarFoil_Physical",
        VDC_AM_FoilContainer_Logical,
        0,
        0,
        pSurfChk); //copy number


  //=======================================================================================
  // Place the 1000 Angstrom (= 0.1 micrometer) thick Alu layer inside VDC_AM_FoilContainer
  //=======================================================================================

  G4double position_AluLayerInsideAMContainer_Z = +1*VDC_AM_FoilContainer_Solid->GetZHalfLength() - VDC_AluLayer_Solid->GetZHalfLength();

  G4cout << G4endl << "###### QweakSimVDC: Place AluLayer inside VDC_AM_FoilContainer_Logical" << G4endl << G4endl;

  new G4PVPlacement(0,
        G4ThreeVector(0. , 0. , position_AluLayerInsideAMContainer_Z),
        VDC_AluLayer_Logical,
        "VDC_TopAluLayer_Physical",
        VDC_AM_FoilContainer_Logical,
        0,
        0,
        pSurfChk); //copy number


  //====================================================================================================
  //                      create the "MA" sided foil container: Mylar-Alu (alias "MA")
  //
  // (define a container holding a 6.25um thick Mylar foil coated with 0.1um Aluminum on bottom side.
  //====================================================================================================


  G4cout << G4endl << "###### QweakSimVDC: Define VDC_MA_FoilContainer_Solid" << G4endl << G4endl;

  G4Box* VDC_MA_FoilContainer_Solid    = new G4Box("VDC_MA_FoilContainer_Sol",
               VDC_SubContainer_Solid->GetXHalfLength() -10.0*micrometer,
               VDC_SubContainer_Solid->GetYHalfLength() -10.0*micrometer,
               0.5* (VDC_MylarFoil_Thickness + VDC_AluLayer_Thickness) );

  // define foil logical
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_MA_FoilContainer_Logical" << G4endl << G4endl;

  VDC_MA_FoilContainer_Logical  = new G4LogicalVolume(VDC_MA_FoilContainer_Solid,
                  VDC_SubContainer_Material,
                  "VDC_MA_FoilContainer_Log",
                  0,0,0);


  //=======================================================================
  // Place the 6.25 micrometer thick Mylar foil inside VDC_MA_FoilContainer
  //=======================================================================

  G4double position_MylarFoilInsideMAContainer_Z = 1*VDC_MA_FoilContainer_Solid->GetZHalfLength() - VDC_MylarFoil_Solid->GetZHalfLength();

  G4cout << G4endl << "###### QweakSimVDC: Place Mylar inside VDC_MA_FoilContainer_Logical" << G4endl << G4endl;

  new G4PVPlacement(0,
        G4ThreeVector(0. , 0. , position_MylarFoilInsideMAContainer_Z ),
        VDC_MylarFoil_Logical,
        "VDC_MylarFoil_Physical",
        VDC_MA_FoilContainer_Logical,
        0,
        0,
        pSurfChk); //copy number


  //=======================================================================================
  // Place the 1000 Angstrom (= 0.1 micrometer) thick Alu layer inside VDC_MA_FoilContainer
  //=======================================================================================

  G4double position_AluLayerInsideMAContainer_Z = -1*VDC_MA_FoilContainer_Solid->GetZHalfLength() + VDC_AluLayer_Solid->GetZHalfLength();

  G4cout << G4endl << "###### QweakSimVDC: Place AluLayer inside VDC_MA_FoilContainer_Logical" << G4endl << G4endl;

  new G4PVPlacement(0,
        G4ThreeVector(0. , 0. , position_AluLayerInsideMAContainer_Z),
        VDC_AluLayer_Logical,
        "VDC_TopAluLayer_Physical",
        VDC_MA_FoilContainer_Logical,
        0,
        0,
        pSurfChk); //copy number

  //%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

  //----------------------------------------------------------------------------
  //
  //  Final assembly of AM, MA, and AMA FoilContainers within VDC_SubContainer
  //
  //----------------------------------------------------------------------------
  //
  // Foil Stack orientation (AM=Alu-Mylar, MA=Mylar-Alu, AMA=Alu-Mylar-Alu)
  //
  // Single sided gas foil  : AM   , zpos= 4*G10Frame_Thickness
  // Single sided HV  foil  : MA   , zpos= 2*G10Frame_Thickness
  // (U-Plane)
  // Double sided HV  foil  : AMA  , zpos= 0*G10Frame_Thickness
  // (V-Plane)
  // Single sided HV  foil  : AM   , zpos= -2*G10Frame_Thickness
  // Single sided gas foil  : MA   , zpos= -4*G10Frame_Thickness
  //
  //---------------------------------------------------------------------------

  G4cout << G4endl << "###### QweakSimVDC: Place VDC_TopGasFoilContainer_Physical inside VDC_SubContainer_Physical" << G4endl << G4endl;
  //
  VDC_TopGasFoilContainer_Physical  =
      new G4PVPlacement(0,
          G4ThreeVector(0. , 0. , 4*G10Frame_Thickness ),
          "VDC_TopGasFoilContainer_Physical",
          VDC_AM_FoilContainer_Logical,
      VDC_SubContainer_Physical,
      false,
      0,
      pSurfChk);

  G4cout << G4endl << "###### QweakSimVDC: Place VDC_TopHVFoilContainer_Physical inside VDC_SubContainer_Physical" << G4endl << G4endl;
  //
  VDC_TopHVFoilContainer_Physical  =
      new G4PVPlacement(0,
      G4ThreeVector(0. , 0. , 2*G10Frame_Thickness ),
      "VDC_TopHVFoilContainer_Physical",
      VDC_MA_FoilContainer_Logical,
      VDC_SubContainer_Physical,
      false,
      0,
      pSurfChk);


  G4cout << G4endl << "###### QweakSimVDC: Place VDC_CenterHVFoilContainer_Physical inside VDC_SubContainer_Physical" << G4endl << G4endl;
  //
  VDC_CenterHVFoilContainer_Physical  =
      new G4PVPlacement(0,
      G4ThreeVector(0. , 0. , 0. ),
      "VDC_CenterHVFoilContainer_Physical",
      VDC_AMA_FoilContainer_Logical,
      VDC_SubContainer_Physical,
      false,
      0,
      pSurfChk);

  G4cout << G4endl << "###### QweakSimVDC: PlaceVDC_BottomHVFoilContainer_Physical inside VDC_SubContainer_Physical" << G4endl << G4endl;
  //
  VDC_BottomHVFoilContainer_Physical  =
      new G4PVPlacement(0,
      G4ThreeVector(0. , 0. , -2*G10Frame_Thickness ),
      "VDC_TopHVFoilContainer_Physical",
      VDC_AM_FoilContainer_Logical,
      VDC_SubContainer_Physical,
      false,
      1,
      pSurfChk); // copy number 1 (second VDC_AM_FoilContainer_Logical placement inside SubContainer)

  G4cout << G4endl << "###### QweakSimVDC: Place VDC_BottomGasFoilContainer_Physical inside VDC_SubContainer_Physical" << G4endl << G4endl;
  //
  VDC_BottomGasFoilContainer_Physical  =
      new G4PVPlacement(0,
      G4ThreeVector(0. , 0. , -4*G10Frame_Thickness ),
      "VDC_TopHVFoilContainer_Physical",
      VDC_MA_FoilContainer_Logical,
      VDC_SubContainer_Physical,
      false,
      1,
      pSurfChk); // copy number 1 (second  VDC_MA_FoilContainer_Logical placement inside SubContainer)

  //==========================================================================================================



  //==========================================================
  //
  //        Define a master container which hold the
  //        Front+Back Drift cell containers
  //
  //==========================================================

  //                   | DX1  |     <== half width of master container: Dx =DX1+DX2+ FullWidthOnFrame of following DCs
  //                   |  _|_DX2          DX1 =  driftcell_halfheight*tan(wireangle)
  //                   | / / /            DX2 =  driftCell_halfWidthOnFrame
  //                   |/ / /
  //                   | / /
  //                  /|/ /
  //          -------------------------
  //                / /|/
  //               / / |
  //              / / /|
  //               - -

  // define  solid volume of the drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellMasteContainer_Solid" << G4endl << G4endl;


//   G4double myContainerX =   0.5*DriftCell_FullHeight*TMath::Tan( DriftCell_WireAngleFront/degree*TMath::DegToRad())
//                           + 0.5*DriftCell_FullWidthOnFrame
//                           + 0.5*(DriftCell_NumberPerPlane -1)*DriftCell_FullWidthOnFrame +1.0*mm;

// G4double myContainerX = 250*cm;




//  G4cout << "Half Length of DriftCellMasterContainer [cm] = " << myContainerX/cm << G4endl;


//   G4Box* VDC_DriftCellMasterContainer_Solid    = new G4Box("VDC_DriftCellMasterContainer_Solid",
//                                                            0.5*DriftCell_FullHeight*TMath::Tan( DriftCell_WireAngleFront
//                                                                                                *TMath::RadToDeg())
//                                                            + 0.5*DriftCell_FullWidthOnFrame
//                                                            + 0.5*(DriftCell_NumberPerPlane -1)*DriftCell_FullWidthOnFrame +1.0*mm,
//                                                            0.5* DriftCell_FullHeight,
//                                                            1.0* DriftCell_FullThickness);


  G4Box* VDC_DriftCellMasterContainer_Solid    = new G4Box("VDC_DriftCellMasterContainer_Solid",
                 0.5* DriftCell_MasterContainer_FullLength,
                 0.5* DriftCell_MasterContainer_FullHeight,
                 0.5* DriftCell_MasterContainer_FullThickness);

  // define VDC logical volume of drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellMasterContainer_Logical " << G4endl << G4endl;

  VDC_DriftCellMasterContainer_Logical  = new G4LogicalVolume(VDC_DriftCellMasterContainer_Solid,
                   VDC_DriftCellContainer_Material,
                   "VDC_DriftCellMasterContainer_Log",
                   0,0,0);



  PlaceVDC_DriftCellMasterContainers();


  //==========================================================
  //
  //               Front Drift cell container definition
  //
  //==========================================================


  // define  solid volume of the drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellFrontContainer_Solid" << G4endl << G4endl;

  G4Box* VDC_DriftCellFrontContainer_Solid    = new G4Box("VDC_DriftCellFrontContainer_Solid",
                 0.5* DriftCell_MasterContainer_FullLength,
                 0.5* DriftCell_MasterContainer_FullHeight,
                 0.5* (0.5*DriftCell_MasterContainer_FullThickness -0.01*mm) );

  // define VDC logical volume of drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellFrontContainer_Logical " << G4endl << G4endl;

  VDC_DriftCellFrontContainer_Logical  = new G4LogicalVolume(VDC_DriftCellFrontContainer_Solid,
                   VDC_DriftCellContainer_Material,
                   "VDC_DriftCellFrontContainer_Log",
                   0,0,0);

  // define VDC Drift Cell Container position within the master container
  G4ThreeVector position_DriftCellFrontContainer = G4ThreeVector(0,
                 0,
                 -0.25* DriftCell_MasterContainer_FullThickness);

  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellFrontContainer_Physical " << G4endl << G4endl;
  // define VDC physical volume of drift chamber container
  VDC_DriftCellFrontContainer_Physical = new G4PVPlacement(0,
                 position_DriftCellFrontContainer,
                 VDC_DriftCellFrontContainer_Logical,
                 "VDC_DriftCellFrontContainer_Physical",
                 VDC_DriftCellMasterContainer_Logical,
                 false,
                 0,
                 pSurfChk);

  //==========================================================
  //
  //           Front Drift cell  definition
  //
  //==========================================================

  // define  solid volume of the drift chamber drift cell
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellFront_Solid" << G4endl << G4endl;

  VDC_DriftCellFront_Solid    = new G4Para("VDC_DriftCellFront_Solid",
             0.5* DriftCell_FullWidthOnFrame,
             0.5* DriftCell_FullHeight,
             0.5* DriftCell_FullThickness,
             1.0* DriftCell_WireAngleFront,
             0.0*degree,
             0.0*degree);

  // define VDC logical volume of drift cell container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellFront_Logical " << G4endl << G4endl;

  VDC_DriftCellFront_Logical  = new G4LogicalVolume(VDC_DriftCellFront_Solid,
                VDC_DriftCell_Material,
                "VDC_DriftCellFront_Log",
                0,0,0);


  //===============================================================================================


  //==========================================================
  //
  //    Back Drift cell container definition
  //
  //==========================================================



  // define  solid volume of the drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellBackContainer_Solid" << G4endl << G4endl;

  G4Box* VDC_DriftCellBackContainer_Solid    = new G4Box("VDC_DriftCellBackContainer_Solid",
               0.5* DriftCell_MasterContainer_FullLength,
                 0.5* DriftCell_MasterContainer_FullHeight,
               0.5* (0.5*DriftCell_MasterContainer_FullThickness -0.01*mm ));

  // define VDC logical volume of drift chamber container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellBackContainer_Logical " << G4endl << G4endl;

  VDC_DriftCellBackContainer_Logical  = new G4LogicalVolume(VDC_DriftCellBackContainer_Solid,
                  VDC_DriftCellContainer_Material,
                  "VDC_DriftCellbackContainer_Log",
                  0,0,0);

  // define VDC Drift Cell Back Container position in MotherVolume
  G4ThreeVector position_DriftCellBackContainer = G4ThreeVector(0,
                0,
                0.25* DriftCell_MasterContainer_FullThickness);

   // define VDC physical volume of drift chamber container
  VDC_DriftCellBackContainer_Physical = new G4PVPlacement(0,
                position_DriftCellBackContainer,
                VDC_DriftCellBackContainer_Logical,
                "VDC_DriftCellBackContainer_Physical",
                VDC_DriftCellMasterContainer_Logical,
                false,
                0,
                pSurfChk);

  //==========================================================
  //
  //           Back Drift cell  definition
  //
  //==========================================================


  // define  solid volume of the drift chamber drift cell
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellBack_Solid" << G4endl << G4endl;

  VDC_DriftCellBack_Solid    = new G4Para("VDC_DriftCellBack_Solid",
            0.5* DriftCell_FullWidthOnFrame,
            0.5* DriftCell_FullHeight,
            0.5* DriftCell_FullThickness,
            1.0* DriftCell_WireAngleBack,
            0.0* degree,
            0.0* degree);

  // define VDC logical volume of drift cell container
  G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellBack_Logical " << G4endl << G4endl;

  VDC_DriftCellBack_Logical  = new G4LogicalVolume(VDC_DriftCellBack_Solid,
               VDC_DriftCell_Material,
               "VDC_DriftCellBack_Log",
               0,0,0);

  //==========================================================
  //
  //           Front/Back Drift cell row definition
  //-
  //==========================================================


  G4VPVParameterisation* driftCellParam = new QweakSimVDC_DriftCellParameterisation( DriftCell_NumberPerPlane,
                               DriftCell_FullWidthOnFrame);

  //dummy value : kXAxis -- modified by parameterised volume

  VDC_DriftCellFront_Physical  =
    new G4PVParameterised("VDC_DriftCellFront_Physical",         // their name
          VDC_DriftCellFront_Logical,          // their logical volume
          VDC_DriftCellFrontContainer_Logical, // Mother logical volume
          kXAxis,                              // Are placed along this axis
          DriftCell_NumberPerPlane,            // Number of drift cells
          driftCellParam,                      // The parametrisation
          pSurfChk);                           // Check overlaps


  VDC_DriftCellBack_Physical  =
    new G4PVParameterised("VDC_DriftCellBack_Physical",          // their name
          VDC_DriftCellBack_Logical,           // their logical volume
          VDC_DriftCellBackContainer_Logical,  // Mother logical volume
          kXAxis,                              // Are placed along this axis
          DriftCell_NumberPerPlane,            // Number of drift cells
          driftCellParam,                      // The parametrisation
          pSurfChk);                           // Check overlaps





  //==========================================================================================
  //
  // ------------------------------------------------------
  // Define a Region which is required for the PAI model
  // handling a precise energy loss of relativistic charged
  // particles crossing the drift chamber gas.
  // ------------------------------------------------------

  if (fEnablePAI) {

    if( fRegGasDet != 0 )  // remove obsolete root logical volume
    {
      fRegGasDet->RemoveRootLogicalVolume(VDC_DriftCellFront_Logical);
      fRegGasDet->RemoveRootLogicalVolume(VDC_DriftCellBack_Logical);
    }

    G4ProductionCuts* cuts = 0;

    if( fRegGasDet == 0 ) // First time - instantiate a region and a cut objects
    {
      fRegGasDet = new G4Region("DriftCellRegion_VDC");
      cuts = new G4ProductionCuts();
      fRegGasDet->SetProductionCuts(cuts);
    }
    else  // Second time - get a cut object from region
    {
      cuts = fRegGasDet->GetProductionCuts();
    }

    VDC_DriftCellFront_Logical->SetRegion(fRegGasDet);
    VDC_DriftCellBack_Logical->SetRegion(fRegGasDet);

    fRegGasDet->AddRootLogicalVolume(VDC_DriftCellFront_Logical);
    fRegGasDet->AddRootLogicalVolume(VDC_DriftCellBack_Logical);

    cuts->SetProductionCut(fGammaCut,"gamma");
    cuts->SetProductionCut(fElectronCut,"e-");
    cuts->SetProductionCut(fPositronCut,"e+");

  }

  //==========================================================================================



  G4cout << G4endl << "###### QweakSimVDC: Setting Sensitive Detectors " << G4endl << G4endl;

  // Sensitive detectors
  //------------------------------------------------
  // All managed (deleted) by SDManager

  G4SDManager* SDman = G4SDManager::GetSDMpointer();


  //#######################################################
  // define drift chamber elements as sensitiv detectors
  // "sensitivity" will be handled by class QweakSimVDCSD
  //#######################################################


  //***********************************************************
  driftChamberSD = new QweakSimVDC_WirePlaneSD("VDCWirePlaneSD");
  SDman->AddNewDetector(driftChamberSD);

  // add wire plane as a sensitive element
  VDC_WirePlane_Logical->SetSensitiveDetector(driftChamberSD);
  //***********************************************************


  //***********************************************************
  driftCellFrontSD = new QweakSimVDC_DriftCellFrontSD("VDCDriftCellFrontSD");
  SDman->AddNewDetector(driftCellFrontSD);

  // add Front Drift Cell as a sensitive element
  VDC_DriftCellFront_Logical->SetSensitiveDetector(driftCellFrontSD);
  //***********************************************************


  //***********************************************************
  driftCellBackSD = new QweakSimVDC_DriftCellBackSD("VDCDriftCellBackSD");
  SDman->AddNewDetector(driftCellBackSD);

  // add Back Drift Cell as a sensitive element
  VDC_DriftCellBack_Logical->SetSensitiveDetector(driftCellBackSD);
  //***********************************************************




  G4cout << G4endl << "###### QweakSimVDC: Setting Attributes " << G4endl << G4endl;

  G4Colour  orange       (241/255.,224/255.,0/255.);
  G4Colour  gray         (210/255.,213/255.,210/255.);

  G4Colour  red          (255/255.,   0/255.,0/255.);
  G4Colour  green        (  0/255., 255/255.,0/255.);
  G4Color   green_yellow (173/255., 255/255., 47/255.);

  VDC_DriftCellMasterContainer_VisAtt  = new G4VisAttributes(gray);
  VDC_DriftCellMasterContainer_VisAtt  -> SetVisibility(false);
  VDC_DriftCellMasterContainer_VisAtt  -> SetForceWireframe(true);
  VDC_DriftCellMasterContainer_Logical -> SetVisAttributes(VDC_DriftCellMasterContainer_VisAtt);

  VDC_DriftCellFrontContainer_VisAtt = new G4VisAttributes(gray);
  VDC_DriftCellFrontContainer_VisAtt -> SetVisibility(false);
  VDC_DriftCellFrontContainer_Logical->SetVisAttributes(VDC_DriftCellFrontContainer_VisAtt);

  VDC_DriftCellBackContainer_VisAtt = new G4VisAttributes(gray);
  VDC_DriftCellBackContainer_VisAtt -> SetVisibility(false);
  VDC_DriftCellBackContainer_Logical->SetVisAttributes(VDC_DriftCellBackContainer_VisAtt);

  VDC_DriftCellFront_VisAtt = new G4VisAttributes(red);
  //VDC_DriftCellFront_VisAtt  -> SetVisibility(true);
  VDC_DriftCellFront_VisAtt  -> SetVisibility(false);
  VDC_DriftCellFront_VisAtt  -> SetForceWireframe(true);
  VDC_DriftCellFront_Logical -> SetVisAttributes(VDC_DriftCellFront_VisAtt);

  VDC_DriftCellBack_VisAtt = new G4VisAttributes(green);
  //VDC_DriftCellBack_VisAtt  -> SetVisibility(true);
  VDC_DriftCellBack_VisAtt  -> SetVisibility(false);
  VDC_DriftCellBack_VisAtt -> SetForceWireframe(true);
  VDC_DriftCellBack_Logical -> SetVisAttributes(VDC_DriftCellBack_VisAtt);

  //===============
  // new VDC setup
  //===============
  VDC_MasterContainer_VisAtt  = new G4VisAttributes(gray);
  VDC_MasterContainer_VisAtt  -> SetVisibility(false);
  VDC_MasterContainer_VisAtt  -> SetForceWireframe(true);
  VDC_MasterContainer_Logical -> SetVisAttributes(VDC_MasterContainer_VisAtt);

  VDC_SubContainer_VisAtt  = new G4VisAttributes(orange);
  VDC_SubContainer_VisAtt  -> SetVisibility(false);
  //VDC_SubContainer_VisAtt  -> SetForceWireframe(true);
  VDC_SubContainer_Logical -> SetVisAttributes(VDC_SubContainer_VisAtt);

  VDC_G10Frame_VisAtt  = new G4VisAttributes(green);
  VDC_G10Frame_VisAtt  -> SetVisibility(true);
  //VDC_G10Frame_VisAtt  -> SetForceWireframe(true);
  VDC_G10Frame_Logical -> SetVisAttributes(VDC_G10Frame_VisAtt);

  VDC_AluFrame_VisAtt  = new G4VisAttributes(gray);
  VDC_AluFrame_VisAtt  -> SetVisibility(true);
  //VDC_AluFrame_VisAtt  -> SetForceWireframe(true);
  VDC_AluFrame_Logical -> SetVisAttributes(VDC_AluFrame_VisAtt);

  VDC_AluLayer_VisAtt  = new G4VisAttributes(gray);
  VDC_AluLayer_VisAtt  -> SetVisibility(true);
  //VDC_AluLayer_VisAtt  -> SetForceWireframe(true);
  VDC_AluLayer_Logical -> SetVisAttributes(VDC_AluLayer_VisAtt);

  VDC_MylarFoil_VisAtt  = new G4VisAttributes(red);
  VDC_MylarFoil_VisAtt  -> SetVisibility(true);
  //VDC_MylarFoil_VisAtt  -> SetForceWireframe(true);
  VDC_MylarFoil_Logical -> SetVisAttributes(VDC_MylarFoil_VisAtt);

  VDC_AMA_FoilContainer_VisAtt  = new G4VisAttributes(gray);
  VDC_AMA_FoilContainer_VisAtt  -> SetVisibility(false);
  VDC_AMA_FoilContainer_VisAtt  -> SetForceWireframe(true);
  VDC_AMA_FoilContainer_Logical -> SetVisAttributes(VDC_AMA_FoilContainer_VisAtt);

  VDC_AM_FoilContainer_VisAtt  = new G4VisAttributes(gray);
  VDC_AM_FoilContainer_VisAtt  -> SetVisibility(false);
  VDC_AM_FoilContainer_VisAtt  -> SetForceWireframe(true);
  VDC_AM_FoilContainer_Logical -> SetVisAttributes(VDC_AM_FoilContainer_VisAtt);

  VDC_MA_FoilContainer_VisAtt  = new G4VisAttributes(gray);
  VDC_MA_FoilContainer_VisAtt  -> SetVisibility(false);
  VDC_MA_FoilContainer_VisAtt  -> SetForceWireframe(true);
  VDC_MA_FoilContainer_Logical -> SetVisAttributes(VDC_MA_FoilContainer_VisAtt);

  VDC_WirePlane_VisAtt = new G4VisAttributes(green_yellow);
  VDC_WirePlane_VisAtt -> SetVisibility(true);
  //VDC_MyWirePlane_VisAtt -> SetForceWireframe(true);
  VDC_WirePlane_Logical -> SetVisAttributes(VDC_WirePlane_VisAtt);


  G4cout << G4endl << "###### Leaving QweakSimVDC::ConstructComponent() " << G4endl << G4endl;

} // end of  QweakSimVDC::ConstructComponent()

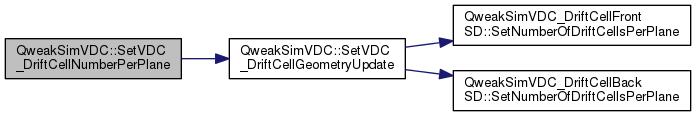

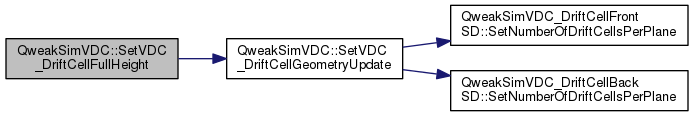

Here is the call graph for this function:

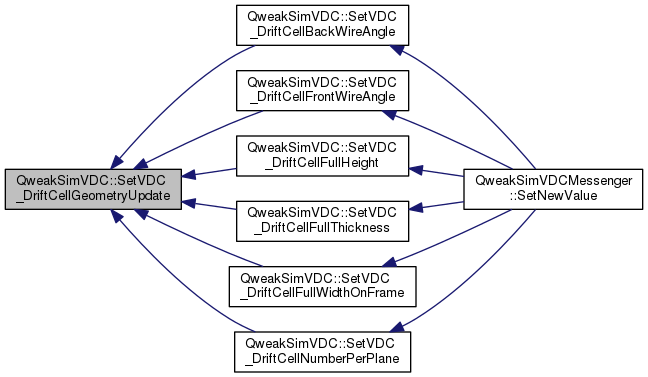

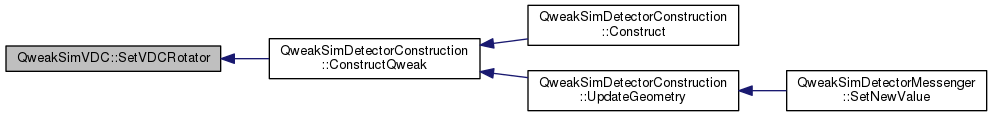

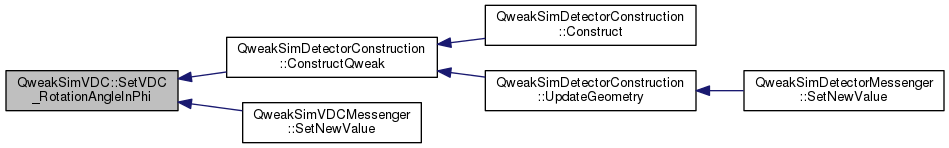

Here is the caller graph for this function:

void QweakSimVDC::DestroyComponent

(

)

Definition at line 1348 of file QweakSimVDC.cc.

{
}

G4double QweakSimVDC::GetDCFullThickness ( )

inline

Definition at line 134 of file QweakSimVDC.hh.

References DriftCell_FullThickness.

{return DriftCell_FullThickness;}

G4double QweakSimVDC::GetDCUPlaneWireAngle ( )

inline

Definition at line 135 of file QweakSimVDC.hh.

References DriftCell_WireAngleFront.

{return DriftCell_WireAngleFront;}

G4double QweakSimVDC::GetDCVPlaneWireAngle ( )

inline

Definition at line 136 of file QweakSimVDC.hh.

References DriftCell_WireAngleBack.

{return DriftCell_WireAngleBack;}

G4double QweakSimVDC::GetDCWidthOnFrame ( )

inline

Definition at line 133 of file QweakSimVDC.hh.

References DriftCell_FullWidthOnFrame.

{return DriftCell_FullWidthOnFrame;}

QweakSimTriggerScintillator* QweakSimVDC::GetTriggerScintillator ( )

inline

Definition at line 142 of file QweakSimVDC.hh.

Referenced by QweakSimVDCMessenger::SetNewValue().

{return myTriggerScintillator;};

Here is the caller graph for this function:

G4LogicalVolume* QweakSimVDC::getVDC_DriftCellBack_LogicalVolume ( )

inline

Definition at line 130 of file QweakSimVDC.hh.

References VDC_DriftCellBack_Logical.

{return VDC_DriftCellBack_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_DriftCellBack_PhysicalVolume ( )

inline

Definition at line 131 of file QweakSimVDC.hh.

References VDC_DriftCellBack_Physical.

{return VDC_DriftCellBack_Physical;}

G4LogicalVolume* QweakSimVDC::getVDC_DriftCellBackContainer_LogicalVolume ( )

inline

Definition at line 124 of file QweakSimVDC.hh.

References VDC_DriftCellBackContainer_Logical.

{return VDC_DriftCellBackContainer_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_DriftCellBackContainer_PhysicalVolume ( )

inline

Definition at line 125 of file QweakSimVDC.hh.

References VDC_DriftCellBackContainer_Physical.

{return VDC_DriftCellBackContainer_Physical;}

G4LogicalVolume* QweakSimVDC::getVDC_DriftCellFront_LogicalVolume ( )

inline

Definition at line 127 of file QweakSimVDC.hh.

References VDC_DriftCellFront_Logical.

{return VDC_DriftCellFront_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_DriftCellFront_PhysicalVolume ( )

inline

Definition at line 128 of file QweakSimVDC.hh.

References VDC_DriftCellFront_Physical.

{return VDC_DriftCellFront_Physical;}

G4LogicalVolume* QweakSimVDC::getVDC_DriftCellFrontContainer_LogicalVolume ( )

inline

Definition at line 121 of file QweakSimVDC.hh.

References VDC_DriftCellFrontContainer_Logical.

{return VDC_DriftCellFrontContainer_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_DriftCellFrontContainer_PhysicalVolume ( )

inline

Definition at line 122 of file QweakSimVDC.hh.

References VDC_DriftCellFrontContainer_Physical.

{return VDC_DriftCellFrontContainer_Physical;}

G4LogicalVolume* QweakSimVDC::getVDC_DriftCellMasterContainer_LogicalVolume ( )

inline

Definition at line 118 of file QweakSimVDC.hh.

References VDC_DriftCellMasterContainer_Logical.

{return VDC_DriftCellMasterContainer_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_DriftCellMasterContainer_PhysicalVolume ( )

inline

Definition at line 119 of file QweakSimVDC.hh.

References VDC_DriftCellMasterContainer_Physical.

{return VDC_DriftCellMasterContainer_Physical[0];}

G4LogicalVolume* QweakSimVDC::getVDC_LogicalVolume ( )

inline

Definition at line 109 of file QweakSimVDC.hh.

References VDC_MasterContainer_Logical.

{return VDC_MasterContainer_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_UWirePlane_PhysicalVolume ( )

inline

Definition at line 115 of file QweakSimVDC.hh.

References VDC_UPlane_Physical.

{return VDC_UPlane_Physical;}

G4VPhysicalVolume* QweakSimVDC::getVDC_VWirePlane_PhysicalVolume ( )

inline

Definition at line 116 of file QweakSimVDC.hh.

References VDC_VPlane_Physical.

{return VDC_VPlane_Physical;}

G4LogicalVolume* QweakSimVDC::getVDC_WirePlane_LogicalVolume ( )

inline

Definition at line 114 of file QweakSimVDC.hh.

References VDC_WirePlane_Logical.

{return VDC_WirePlane_Logical;}

G4VPhysicalVolume* QweakSimVDC::getVDCBack_PhysicalVolume ( )

inline

Definition at line 112 of file QweakSimVDC.hh.

References VDC_MasterContainerBack_Physical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{return VDC_MasterContainerBack_Physical[0];}

Here is the caller graph for this function:

G4VPhysicalVolume* QweakSimVDC::getVDCFront_PhysicalVolume ( )

inline

Definition at line 111 of file QweakSimVDC.hh.

References VDC_MasterContainerFront_Physical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{return VDC_MasterContainerFront_Physical[0];}

Here is the caller graph for this function:

QweakSimVDCRotator* QweakSimVDC::GetVDCRotator ( )

inline

Definition at line 139 of file QweakSimVDC.hh.

References myRotator.

Referenced by QweakSimVDCMessenger::SetNewValue().

{return myRotator;};

Here is the caller graph for this function:

void QweakSimVDC::PlaceVDC_DriftCellMasterContainers ( )

private

Definition at line 1708 of file QweakSimVDC.cc.

References pSurfChk, Rotation_VDC_MasterContainer, SetVDC_DriftCell_MasterContainer_CenterPosition(), theMotherPV, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, VDC_DriftCell_MasterContainer_ZPos, VDC_DriftCellMasterContainer_Logical, and VDC_DriftCellMasterContainer_Physical.

Referenced by ConstructComponent().

{


    for (size_t i=0; i< VDC_DriftCellMasterContainer_Physical.size();i++) {

      // define VDC Drift Cell Container position in MotherVolume
      SetVDC_DriftCell_MasterContainer_CenterPosition(i);

      G4ThreeVector position_DriftCellMasterContainer = G4ThreeVector(VDC_DriftCell_MasterContainer_XPos[i],
                      VDC_DriftCell_MasterContainer_YPos[i],
                      VDC_DriftCell_MasterContainer_ZPos[i] );

    G4cout << G4endl << "###### QweakSimVDC: Define VDC_DriftCellMasterContainer_Physical " << G4endl << G4endl;
    // define VDC physical volume of drift chamber container
    VDC_DriftCellMasterContainer_Physical[i] = new G4PVPlacement(Rotation_VDC_MasterContainer[i],
                    position_DriftCellMasterContainer,
                    "VDC_DriftCellMasterContainer_Physical",
                    VDC_DriftCellMasterContainer_Logical,
                    theMotherPV,
                    false,
                    i,
                    pSurfChk);
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::PlaceVDC_MasterContainers ( )

private

Definition at line 1647 of file QweakSimVDC.cc.

References pSurfChk, Rotation_VDC_MasterContainer, SetVDC_BackVDC_CenterPosition(), theMotherPV, VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_MasterContainer_Logical, VDC_MasterContainerBack_Physical, and VDC_MasterContainerFront_Physical.

Referenced by ConstructComponent().

{
   G4cout << G4endl << "###### Calling QweakSimVDC::PlaceHDC_MasterContainers() " << G4endl << G4endl;


    G4cout << G4endl << "###### QweakSimVDC: Define VDC_MasterContainerFront Orientation" << G4endl << G4endl;

    // define VDC Container Orientation in MotherVolume
    for (size_t i = 0; i < Rotation_VDC_MasterContainer.size(); i++) {
    Rotation_VDC_MasterContainer[i]      = new G4RotationMatrix();
    G4double Angle_VDC_MasterContainer = (-90.0+45.0+20.82)*degree;
    Rotation_VDC_MasterContainer[i]       ->rotateX(Angle_VDC_MasterContainer);

    }


    for (size_t i=0; i< VDC_MasterContainerFront_Physical.size();i++) {

    G4cout << G4endl << "###### QweakSimVDC: Define VDC_MasterContainerFront Position" << G4endl << G4endl;

    // define VDC MasterContainer Front position in MotherVolume
    //VDC_CenterFront_ZPos = -600*cm; // just make an z offset for display
    //VDC_CenterBack_ZPos  = -560*cm; // just make an z offset for display



    G4ThreeVector position_MasterContainerFront = G4ThreeVector(VDC_CenterFront_XPos[i],VDC_CenterFront_YPos[i],VDC_CenterFront_ZPos[i] );

    // define VDC MasterContainer Back position in MotherVolume
    SetVDC_BackVDC_CenterPosition(i);

    G4ThreeVector position_MasterContainerBack = G4ThreeVector(VDC_CenterBack_XPos[i],VDC_CenterBack_YPos[i],VDC_CenterBack_ZPos[i] );


    G4cout << G4endl << "###### QweakSimVDC: Define VDC_MasterContainerFront_Physical" << G4endl << G4endl;

    // define VDC physical volume of drift chamber container
    VDC_MasterContainerFront_Physical[i] = new G4PVPlacement(Rotation_VDC_MasterContainer[i],
                position_MasterContainerFront,
                Form("VDC_MasterContainerFront_Physical%ld",i+1),
                VDC_MasterContainer_Logical,
                theMotherPV,
                false,
                2*i,
                pSurfChk); // copy number for front

    G4cout << G4endl << "###### QweakSimVDC: Define VDC_MasterContainerBack_Physical" << G4endl << G4endl;

    // define VDC physical volume of drift chamber container
    VDC_MasterContainerBack_Physical[i] = new G4PVPlacement(Rotation_VDC_MasterContainer[i],
                     position_MasterContainerBack,
                     Form("VDC_MasterContainerBack_Physical%ld",i+1),
                     VDC_MasterContainer_Logical,
                     theMotherPV,
                     false,
                     2*i+1,
                     pSurfChk);// copy number for back
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetFrontVDC_CenterPositionInX	(	G4double	xPos,
		G4int	pkg
	)

Definition at line 1496 of file QweakSimVDC.cc.

References SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, VDC_DriftCell_MasterContainer_ZPos, VDC_DriftCellMasterContainer_Physical, VDC_MasterContainerBack_Physical, and VDC_MasterContainerFront_Physical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
    G4cout << G4endl << "###### Calling QweakSimVDC::SetFrontVDC_CenterPositionInX() " << G4endl << G4endl;

    VDC_CenterFront_XPos[pkg] = xPos;

    SetVDC_BackVDC_CenterPosition(pkg);
    SetVDC_DriftCell_MasterContainer_CenterPosition(pkg);

    VDC_MasterContainerFront_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_CenterFront_XPos[pkg],
                    VDC_CenterFront_YPos[pkg],
                    VDC_CenterFront_ZPos[pkg]));

    VDC_MasterContainerBack_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_CenterBack_XPos[pkg],
                   VDC_CenterBack_YPos[pkg],
                   VDC_CenterBack_ZPos[pkg]));

    VDC_DriftCellMasterContainer_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_DriftCell_MasterContainer_XPos[pkg],
                  VDC_DriftCell_MasterContainer_YPos[pkg],
                  VDC_DriftCell_MasterContainer_ZPos[pkg]));

    G4cout << G4endl << "###### Leaving QweakSimVDC::SetFrontVDC_CenterPositionInX() " << G4endl << G4endl;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetFrontVDC_CenterPositionInY	(	G4double	yPos,
		G4int	pkg
	)

Definition at line 1521 of file QweakSimVDC.cc.

References SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, VDC_DriftCell_MasterContainer_ZPos, VDC_DriftCellMasterContainer_Physical, VDC_MasterContainerBack_Physical, and VDC_MasterContainerFront_Physical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
    G4cout << G4endl << "###### Calling QweakSimVDC::SetFrontVDC_CenterPositionInY() " << G4endl << G4endl;

    VDC_CenterFront_YPos[pkg] = yPos;

    SetVDC_BackVDC_CenterPosition(pkg);
    SetVDC_DriftCell_MasterContainer_CenterPosition(pkg);

    VDC_MasterContainerFront_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_CenterFront_XPos[pkg],
                    VDC_CenterFront_YPos[pkg],
                    VDC_CenterFront_ZPos[pkg]));

    VDC_MasterContainerBack_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_CenterBack_XPos[pkg],
                   VDC_CenterBack_YPos[pkg],
                   VDC_CenterBack_ZPos[pkg]));

    VDC_DriftCellMasterContainer_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_DriftCell_MasterContainer_XPos[pkg],
                  VDC_DriftCell_MasterContainer_YPos[pkg],
                  VDC_DriftCell_MasterContainer_ZPos[pkg]));


 G4cout << G4endl << "###### Leaving QweakSimVDC::SetFrontVDC_CenterPositionInY() " << G4endl << G4endl;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetFrontVDC_CenterPositionInZ	(	G4double	zPos,
		G4int	pkg
	)

Definition at line 1547 of file QweakSimVDC.cc.

References SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, VDC_DriftCell_MasterContainer_ZPos, VDC_DriftCellMasterContainer_Physical, VDC_MasterContainerBack_Physical, and VDC_MasterContainerFront_Physical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
    G4cout << G4endl << "###### Calling QweakSimVDC::SetFrontVDC_CenterPositionInZ() " << G4endl << G4endl;

    VDC_CenterFront_ZPos[pkg] = zPos;

    SetVDC_BackVDC_CenterPosition(pkg);
    SetVDC_DriftCell_MasterContainer_CenterPosition(pkg);


    VDC_MasterContainerFront_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_CenterFront_XPos[pkg],
                    VDC_CenterFront_YPos[pkg],
                    VDC_CenterFront_ZPos[pkg]));

    VDC_MasterContainerBack_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_CenterBack_XPos[pkg],
                   VDC_CenterBack_YPos[pkg],
                   VDC_CenterBack_ZPos[pkg]));

    VDC_DriftCellMasterContainer_Physical[pkg]->SetTranslation(G4ThreeVector(VDC_DriftCell_MasterContainer_XPos[pkg],
                  VDC_DriftCell_MasterContainer_YPos[pkg],
                  VDC_DriftCell_MasterContainer_ZPos[pkg]));

    G4cout << G4endl << "###### Leaving QweakSimVDC::SetFrontVDC_CenterPositionInZ() " << G4endl << G4endl;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetTriggerScintillator ( QweakSimTriggerScintillator *  theTriggerScintillator )

inline

Definition at line 141 of file QweakSimVDC.hh.

References myTriggerScintillator.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{myTriggerScintillator = theTriggerScintillator;};

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_AluFrameMaterial

(

G4String

materialName

)

Definition at line 1330 of file QweakSimVDC.cc.

References VDC_AluFrame_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC AluFrame Material: Looking up Material  " << G4endl;
                VDC_AluFrame_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing AluFrame Material:  Now the VDC AluFrame is made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC AluFrame Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_BackVDC_CenterPosition ( G4int  pkg )

private

Definition at line 1573 of file QweakSimVDC.cc.

References MeanTrackAngle, VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, and VDC_FrontBackDistance.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), and SetFrontVDC_CenterPositionInZ().

{

  // define VDC ContainerBack position in MotherVolume
  VDC_CenterBack_XPos[pkg]   = VDC_CenterFront_XPos[pkg];
  VDC_CenterBack_YPos[pkg]   = VDC_CenterFront_YPos[pkg] + VDC_FrontBackDistance*TMath::Tan(MeanTrackAngle/degree*TMath::DegToRad());
  VDC_CenterBack_ZPos[pkg]   = VDC_CenterFront_ZPos[pkg] + VDC_FrontBackDistance;

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCell_MasterContainer_CenterPosition ( G4int  pkg )

private

Definition at line 1584 of file QweakSimVDC.cc.

References VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, and VDC_DriftCell_MasterContainer_ZPos.

Referenced by PlaceVDC_DriftCellMasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), and SetFrontVDC_CenterPositionInZ().

{
  VDC_DriftCell_MasterContainer_XPos[pkg] = VDC_CenterFront_XPos[pkg];
  VDC_DriftCell_MasterContainer_YPos[pkg] = VDC_CenterFront_YPos[pkg];
  VDC_DriftCell_MasterContainer_ZPos[pkg] = VDC_CenterFront_ZPos[pkg] + 15.0*cm;
}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellBackWireAngle

(

G4double

backWireAngle

)

Definition at line 1366 of file QweakSimVDC.cc.

References DriftCell_WireAngleBack, SetVDC_DriftCellGeometryUpdate(), QweakSimVDC_DriftCellFrontSD::StoreDCVPlaneWireAngle(), and QweakSimVDC_DriftCellBackSD::StoreDCVPlaneWireAngle().

Referenced by QweakSimVDCMessenger::SetNewValue().

{
G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellbackWireAngle() " << G4endl << G4endl;

 DriftCell_WireAngleBack = backWireAngle;

 QweakSimVDC_DriftCellFrontSD::StoreDCVPlaneWireAngle(DriftCell_WireAngleBack);
 QweakSimVDC_DriftCellBackSD::StoreDCVPlaneWireAngle(DriftCell_WireAngleBack);

 SetVDC_DriftCellGeometryUpdate();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellFrontWireAngle

(

G4double

frontWireAngle

)

Definition at line 1353 of file QweakSimVDC.cc.

References DriftCell_WireAngleFront, SetVDC_DriftCellGeometryUpdate(), QweakSimVDC_DriftCellFrontSD::StoreDCUPlaneWireAngle(), and QweakSimVDC_DriftCellBackSD::StoreDCUPlaneWireAngle().

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellFrontWireAngle() " << G4endl << G4endl;

  DriftCell_WireAngleFront = frontWireAngle;

  QweakSimVDC_DriftCellFrontSD::StoreDCUPlaneWireAngle(DriftCell_WireAngleFront);
  QweakSimVDC_DriftCellBackSD::StoreDCUPlaneWireAngle(DriftCell_WireAngleFront);

  SetVDC_DriftCellGeometryUpdate();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellFullHeight

(

G4double

fullHeight

)

Definition at line 1379 of file QweakSimVDC.cc.

References DriftCell_FullHeight, and SetVDC_DriftCellGeometryUpdate().

Referenced by QweakSimVDCMessenger::SetNewValue().

{
G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellFullHeight() " << G4endl << G4endl;

 DriftCell_FullHeight = fullHeight;
 SetVDC_DriftCellGeometryUpdate();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellFullThickness

(

G4double

fullThickness

)

Definition at line 1401 of file QweakSimVDC.cc.

References DriftCell_FullThickness, SetVDC_DriftCellGeometryUpdate(), QweakSimVDC_DriftCellFrontSD::StoreDCFullThickness(), and QweakSimVDC_DriftCellBackSD::StoreDCFullThickness().

Referenced by QweakSimVDCMessenger::SetNewValue().

{
G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellFullThickness() " << G4endl << G4endl;

 DriftCell_FullThickness = fullThickness;

 QweakSimVDC_DriftCellFrontSD::StoreDCFullThickness(DriftCell_FullThickness);
 QweakSimVDC_DriftCellBackSD::StoreDCFullThickness(DriftCell_FullThickness);

 SetVDC_DriftCellGeometryUpdate();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellFullWidthOnFrame

(

G4double

fullWidthOnFrame

)

Definition at line 1388 of file QweakSimVDC.cc.

References DriftCell_FullWidthOnFrame, SetVDC_DriftCellGeometryUpdate(), QweakSimVDC_DriftCellFrontSD::StoreDCWidthOnFrame(), and QweakSimVDC_DriftCellBackSD::StoreDCWidthOnFrame().

Referenced by QweakSimVDCMessenger::SetNewValue().

{
G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellFullWidthOnFrame() " << G4endl << G4endl;

 DriftCell_FullWidthOnFrame = fullWidthOnFrame;

 QweakSimVDC_DriftCellFrontSD::StoreDCWidthOnFrame(DriftCell_FullWidthOnFrame);
 QweakSimVDC_DriftCellBackSD::StoreDCWidthOnFrame(DriftCell_FullWidthOnFrame);

 SetVDC_DriftCellGeometryUpdate();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellGeometryUpdate

(

)

Definition at line 1424 of file QweakSimVDC.cc.

References DriftCell_FullHeight, DriftCell_FullThickness, DriftCell_FullWidthOnFrame, DriftCell_NumberPerPlane, DriftCell_WireAngleBack, DriftCell_WireAngleFront, pSurfChk, QweakSimVDC_DriftCellFrontSD::SetNumberOfDriftCellsPerPlane(), QweakSimVDC_DriftCellBackSD::SetNumberOfDriftCellsPerPlane(), VDC_DriftCellBack_Logical, VDC_DriftCellBack_Physical, VDC_DriftCellBack_Solid, VDC_DriftCellBackContainer_Logical, VDC_DriftCellFront_Logical, VDC_DriftCellFront_Physical, VDC_DriftCellFront_Solid, and VDC_DriftCellFrontContainer_Logical.

Referenced by SetVDC_DriftCellBackWireAngle(), SetVDC_DriftCellFrontWireAngle(), SetVDC_DriftCellFullHeight(), SetVDC_DriftCellFullThickness(), SetVDC_DriftCellFullWidthOnFrame(), and SetVDC_DriftCellNumberPerPlane().

{
G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellGeometryUpdate() " << G4endl << G4endl;


// redefine the drift cells according to the changed parameters

 VDC_DriftCellFront_Solid->SetAllParameters( 0.5* DriftCell_FullWidthOnFrame,
               0.5* DriftCell_FullHeight,
               0.5* DriftCell_FullThickness,
               1.0* DriftCell_WireAngleFront,
               0.0* degree,
               0.0* degree);

 VDC_DriftCellBack_Solid->SetAllParameters( 0.5* DriftCell_FullWidthOnFrame,
              0.5* DriftCell_FullHeight,
              0.5* DriftCell_FullThickness,
              1.0* DriftCell_WireAngleBack,
              0.0* degree,
              0.0* degree);


 // if exist, remove the current drift cells with the old parameters
 if(VDC_DriftCellFront_Physical)
   {
     VDC_DriftCellFrontContainer_Logical->RemoveDaughter(VDC_DriftCellFront_Physical);
     delete VDC_DriftCellFront_Physical;
   }

 if(VDC_DriftCellBack_Physical)
   {
     VDC_DriftCellBackContainer_Logical->RemoveDaughter(VDC_DriftCellBack_Physical);
     delete VDC_DriftCellBack_Physical;
   }


 // and rebuild from scratch the new drift cells and their arrangement

  G4VPVParameterisation* driftCellParam = new QweakSimVDC_DriftCellParameterisation( DriftCell_NumberPerPlane,
                     DriftCell_FullWidthOnFrame);

  //dummy value : kXAxis -- modified by parameterised volume

  VDC_DriftCellFront_Physical  =
    new G4PVParameterised("VDC_DriftCellFront_Physical",         // their name
          VDC_DriftCellFront_Logical,          // their logical volume
          VDC_DriftCellFrontContainer_Logical, // Mother logical volume
          kXAxis,                              // Are placed along this axis
          DriftCell_NumberPerPlane,            // Number of drift cells
          driftCellParam,                      // The parametrisation
          pSurfChk);                           // Check overlaps


  VDC_DriftCellBack_Physical  =
    new G4PVParameterised("VDC_DriftCellBack_Physical",          // their name
          VDC_DriftCellBack_Logical,           // their logical volume
          VDC_DriftCellBackContainer_Logical,  // Mother logical volume
          kXAxis,                              // Are placed along this axis
          DriftCell_NumberPerPlane,            // Number of drift cells
          driftCellParam,                      // The parametrisation
          pSurfChk);                           // Check overlaps

  // we have to update QweakSimVDC_DriftCellSD  about a possible new DriftCell_NumberPerPlane value
  QweakSimVDC_DriftCellFrontSD::SetNumberOfDriftCellsPerPlane(DriftCell_NumberPerPlane);
  QweakSimVDC_DriftCellBackSD::SetNumberOfDriftCellsPerPlane(DriftCell_NumberPerPlane);

  // tell G4RunManager that we have changed the geometry
  G4RunManager::GetRunManager()->GeometryHasBeenModified();

}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellMaterial

(

G4String

materialName

)

Definition at line 1262 of file QweakSimVDC.cc.

References VDC_DriftCellBack_Logical, and VDC_DriftCellFront_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC DriftCell Material: Looking up Material  " << G4endl;
                VDC_DriftCellFront_Logical->SetMaterial(pttoMaterial);
    VDC_DriftCellBack_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing VDC DriftCell Material:  Now the VDC DriftCells are made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC DriftCell Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_DriftCellNumberPerPlane

(

G4int

numberPerPlane

)

Definition at line 1414 of file QweakSimVDC.cc.

References DriftCell_NumberPerPlane, and SetVDC_DriftCellGeometryUpdate().

Referenced by QweakSimVDCMessenger::SetNewValue().

{
G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_DriftCellFullWidthOnFrame() " << G4endl << G4endl;

  DriftCell_NumberPerPlane   =   numberPerPlane;
  SetVDC_DriftCellGeometryUpdate();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_FoilMaterial

(

G4String

materialName

)

Definition at line 1280 of file QweakSimVDC.cc.

References VDC_MylarFoil_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC Foil Material: Looking up Material  " << G4endl;
                VDC_MylarFoil_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing VDC Foil Material: Now the VDC Foils are made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC Foil Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_G10FrameMaterial

(

G4String

materialName

)

Definition at line 1313 of file QweakSimVDC.cc.

References VDC_G10Frame_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC G10Frame Material: Looking up Material  " << G4endl;
                VDC_G10Frame_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing G10Frame Material:  Now the VDC G10Frame is made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC G10Frame Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_MasterContainerMaterial

(

G4String

materialName

)

Definition at line 1228 of file QweakSimVDC.cc.

References VDC_MasterContainer_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC MasterContainer Material: Looking up Material  " << G4endl;
                VDC_MasterContainer_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing VDC MasterContainer Material:  Now the VDC MasterContainer is made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC MasterConrainer Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_MeanTrackAngleInTheta ( G4double  angle )

inline

Definition at line 102 of file QweakSimVDC.hh.

References MeanTrackAngle.

Referenced by QweakSimVDCMessenger::SetNewValue().

{  MeanTrackAngle = angle; }

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_RotationAngleInPhi	(	G4double	vdc_phiangle,
		G4int	pkg
	)

Definition at line 1593 of file QweakSimVDC.cc.

References Rotation_VDC_MasterContainer, VDC_CenterBack_XPos, VDC_CenterBack_YPos, VDC_CenterBack_ZPos, VDC_CenterFront_XPos, VDC_CenterFront_YPos, VDC_CenterFront_ZPos, VDC_DriftCell_MasterContainer_XPos, VDC_DriftCell_MasterContainer_YPos, VDC_DriftCell_MasterContainer_ZPos, VDC_DriftCellMasterContainer_Physical, VDC_MasterContainerBack_Physical, VDC_MasterContainerFront_Physical, and VDC_RotationAngleInPhi.

Referenced by QweakSimDetectorConstruction::ConstructQweak(), and QweakSimVDCMessenger::SetNewValue().

{
    G4cout << G4endl << "###### Calling QweakSimVDC::SetVDC_RotationAngleInPhi() " << G4endl << G4endl;

    //------------------------------------------------------
    //   VDC related
    //------------------------------------------------------
    G4ThreeVector Translation_VDC_ContainerFront;
    G4double VDCFront_RadialDistance = sqrt(VDC_CenterFront_XPos[pkg]*VDC_CenterFront_XPos[pkg] + VDC_CenterFront_YPos[pkg]*VDC_CenterFront_YPos[pkg]);
    //
    Translation_VDC_ContainerFront.setX(cos(vdc_phiangle)*VDCFront_RadialDistance) ;
    Translation_VDC_ContainerFront.setY(sin(vdc_phiangle)*VDCFront_RadialDistance) ;
    Translation_VDC_ContainerFront.setZ(VDC_CenterFront_ZPos[pkg]) ;
    //---
    G4ThreeVector Translation_VDC_ContainerBack;
    G4double VDCBack_RadialDistance = sqrt(VDC_CenterBack_XPos[pkg]*VDC_CenterBack_XPos[pkg] + VDC_CenterBack_YPos[pkg]*VDC_CenterBack_YPos[pkg]);
    //
    Translation_VDC_ContainerBack.setX(cos(vdc_phiangle)*VDCBack_RadialDistance) ;
    Translation_VDC_ContainerBack.setY(sin(vdc_phiangle)*VDCBack_RadialDistance) ;
    Translation_VDC_ContainerBack.setZ(VDC_CenterBack_ZPos[pkg]);
    //------------------------------------------------------

    //------------------------------------------------------
    //   DriftCell related
    //------------------------------------------------------
    G4ThreeVector Translation_DriftCell_MasterContainer;
    G4double DriftCell_MasterContainer_RadialDistance = sqrt(VDC_DriftCell_MasterContainer_XPos[pkg]*VDC_DriftCell_MasterContainer_XPos[pkg] + VDC_DriftCell_MasterContainer_YPos[pkg]*VDC_DriftCell_MasterContainer_YPos[pkg]);
    //
    Translation_DriftCell_MasterContainer.setX(cos(vdc_phiangle)*DriftCell_MasterContainer_RadialDistance) ;
    Translation_DriftCell_MasterContainer.setY(sin(vdc_phiangle)*DriftCell_MasterContainer_RadialDistance) ;
    Translation_DriftCell_MasterContainer.setZ(VDC_DriftCell_MasterContainer_ZPos[pkg]) ;
    //------------------------------------------------------


    // assign new phi tilting angle
    VDC_RotationAngleInPhi[pkg] = vdc_phiangle;
    Rotation_VDC_MasterContainer[pkg]      -> setPhi(VDC_RotationAngleInPhi[pkg] -90*degree);

    // Rotation of VDCs
    VDC_MasterContainerFront_Physical[pkg] -> SetRotation(Rotation_VDC_MasterContainer[pkg]);
    VDC_MasterContainerBack_Physical[pkg]  -> SetRotation(Rotation_VDC_MasterContainer[pkg]);
    VDC_MasterContainerFront_Physical[pkg] -> SetTranslation(Translation_VDC_ContainerFront);
    VDC_MasterContainerBack_Physical[pkg]  -> SetTranslation(Translation_VDC_ContainerBack);

    // Rotation of DriftCells
    VDC_DriftCellMasterContainer_Physical[pkg] -> SetRotation(Rotation_VDC_MasterContainer[pkg]);
    VDC_DriftCellMasterContainer_Physical[pkg] -> SetTranslation(Translation_DriftCell_MasterContainer);



    G4cout << G4endl << "###### Leaving QweakSimVDC::SetVDC_RotationAngleInPhi() " << G4endl << G4endl;
}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_SubContainerMaterial

(

G4String

materialName

)

Definition at line 1245 of file QweakSimVDC.cc.

References VDC_SubContainer_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC SubContainer Material: Looking up Material  " << G4endl;
                VDC_SubContainer_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing VDC SubContainer Material:  Now the VDC SubContainer is made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC SubConrainer Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDC_WirePlaneMaterial

(

G4String

materialName

)

Definition at line 1296 of file QweakSimVDC.cc.

References VDC_WirePlane_Logical.

Referenced by QweakSimVDCMessenger::SetNewValue().

{
  // search the material by its name
  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
     {
  G4cout << "==== Changing VDC WirePlane Material: Looking up Material  " << G4endl;
                VDC_WirePlane_Logical->SetMaterial(pttoMaterial);
  G4cout << "==== Changing VDC WirePlane Material:  Now the VDC WirePlane is made of " << materialName << G4endl;
     }
  else {
      G4cerr << "==== ERROR: Changing VDC WirePlane Material failed" << G4endl;
  }

}

Here is the caller graph for this function:

void QweakSimVDC::SetVDCRotator ( QweakSimVDCRotator *  theRotator )

inline

Definition at line 138 of file QweakSimVDC.hh.

References myRotator.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{myRotator = theRotator;};

Here is the caller graph for this function:

Field Documentation

G4double QweakSimVDC::AluFrame_InnerLength

private

Definition at line 197 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::AluFrame_InnerWidth

private

Definition at line 198 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::AluFrame_OuterLength

private

Definition at line 195 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::AluFrame_OuterWidth

private

Definition at line 196 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::AluFrame_Thickness

private

Definition at line 194 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::DriftCell_FullHeight

private

Definition at line 217 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), SetVDC_DriftCellFullHeight(), and SetVDC_DriftCellGeometryUpdate().

G4double QweakSimVDC::DriftCell_FullThickness

private

Definition at line 218 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), GetDCFullThickness(), QweakSimVDC(), SetVDC_DriftCellFullThickness(), and SetVDC_DriftCellGeometryUpdate().

G4double QweakSimVDC::DriftCell_FullWidthOnFrame

private

Definition at line 216 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), GetDCWidthOnFrame(), QweakSimVDC(), SetVDC_DriftCellFullWidthOnFrame(), and SetVDC_DriftCellGeometryUpdate().

G4double QweakSimVDC::DriftCell_MasterContainer_FullHeight

private

Definition at line 223 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::DriftCell_MasterContainer_FullLength

private

Definition at line 222 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::DriftCell_MasterContainer_FullThickness

private

Definition at line 224 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4int QweakSimVDC::DriftCell_NumberPerPlane

private

Definition at line 215 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), SetVDC_DriftCellGeometryUpdate(), and SetVDC_DriftCellNumberPerPlane().

G4double QweakSimVDC::DriftCell_WireAngleBack

private

Definition at line 220 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), GetDCVPlaneWireAngle(), QweakSimVDC(), SetVDC_DriftCellBackWireAngle(), and SetVDC_DriftCellGeometryUpdate().

G4double QweakSimVDC::DriftCell_WireAngleFront

private

Definition at line 219 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), GetDCUPlaneWireAngle(), QweakSimVDC(), SetVDC_DriftCellFrontWireAngle(), and SetVDC_DriftCellGeometryUpdate().

G4VSensitiveDetector* QweakSimVDC::driftCellBackSD

private

Definition at line 236 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VSensitiveDetector* QweakSimVDC::driftCellFrontSD

private

Definition at line 235 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VSensitiveDetector* QweakSimVDC::driftChamberSD

private

Definition at line 234 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4double QweakSimVDC::fElectronCut

private

Definition at line 297 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

const G4bool QweakSimVDC::fEnablePAI = false

staticprivate

Definition at line 295 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4double QweakSimVDC::fGammaCut

private

Definition at line 296 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::fPositronCut

private

Definition at line 298 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4Region* QweakSimVDC::fRegGasDet

private

Definition at line 299 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::G10Frame_BorderWidthInX

private

Definition at line 191 of file QweakSimVDC.hh.

Referenced by QweakSimVDC().

G4double QweakSimVDC::G10Frame_BorderWidthInY

private

Definition at line 192 of file QweakSimVDC.hh.

Referenced by QweakSimVDC().

G4double QweakSimVDC::G10Frame_InnerLength

private

Definition at line 189 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::G10Frame_InnerWidth

private

Definition at line 190 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::G10Frame_OuterLength

private

Definition at line 187 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::G10Frame_OuterWidth

private

Definition at line 188 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::G10Frame_Thickness

private

Definition at line 186 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4double QweakSimVDC::MeanTrackAngle

private

Definition at line 157 of file QweakSimVDC.hh.

Referenced by QweakSimVDC(), SetVDC_BackVDC_CenterPosition(), and SetVDC_MeanTrackAngleInTheta().

QweakSimVDCRotator* QweakSimVDC::myRotator

private

Definition at line 142 of file QweakSimVDC.hh.

Referenced by GetVDCRotator(), QweakSimVDC(), and SetVDCRotator().

QweakSimTriggerScintillator* QweakSimVDC::myTriggerScintillator

private

Definition at line 147 of file QweakSimVDC.hh.

Referenced by SetTriggerScintillator().

QweakSimMaterial* QweakSimVDC::pMaterial

private

Definition at line 163 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

std::vector<G4RotationMatrix*> QweakSimVDC::Rotation_VDC_MasterContainer

private

Definition at line 154 of file QweakSimVDC.hh.

Referenced by PlaceVDC_DriftCellMasterContainers(), PlaceVDC_MasterContainers(), QweakSimVDC(), and SetVDC_RotationAngleInPhi().

G4VPhysicalVolume* QweakSimVDC::theMotherPV

private

Definition at line 165 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), PlaceVDC_DriftCellMasterContainers(), and PlaceVDC_MasterContainers().

G4VPhysicalVolume* QweakSimVDC::VDC_AluBottomFrame_Physical

private

Definition at line 260 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_AluFrame_Logical

private

Definition at line 258 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and SetVDC_AluFrameMaterial().

G4SubtractionSolid* QweakSimVDC::VDC_AluFrame_Solid

private

Definition at line 257 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VisAttributes* QweakSimVDC::VDC_AluFrame_VisAtt

private

Definition at line 284 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_AluLayer_Logical

private

Definition at line 264 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4double QweakSimVDC::VDC_AluLayer_Thickness

private

Definition at line 241 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4VisAttributes* QweakSimVDC::VDC_AluLayer_VisAtt

private

Definition at line 289 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VPhysicalVolume* QweakSimVDC::VDC_AluTopFrame_Physical

private

Definition at line 259 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_AM_FoilContainer_Logical

private

Definition at line 272 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VisAttributes* QweakSimVDC::VDC_AM_FoilContainer_VisAtt

private

Definition at line 287 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4LogicalVolume* QweakSimVDC::VDC_AMA_FoilContainer_Logical

private

Definition at line 271 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VisAttributes* QweakSimVDC::VDC_AMA_FoilContainer_VisAtt

private

Definition at line 286 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VPhysicalVolume* QweakSimVDC::VDC_BottomGasFoilContainer_Physical

private

Definition at line 279 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VPhysicalVolume* QweakSimVDC::VDC_BottomHVFoilContainer_Physical

private

Definition at line 278 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

std::vector<G4double> QweakSimVDC::VDC_CenterBack_XPos

private

Definition at line 204 of file QweakSimVDC.hh.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_BackVDC_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_CenterBack_YPos

private

Definition at line 205 of file QweakSimVDC.hh.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_BackVDC_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_CenterBack_ZPos

private

Definition at line 206 of file QweakSimVDC.hh.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_BackVDC_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_CenterFront_XPos

private

Definition at line 200 of file QweakSimVDC.hh.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_CenterFront_YPos

private

Definition at line 201 of file QweakSimVDC.hh.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_CenterFront_ZPos

private

Definition at line 202 of file QweakSimVDC.hh.

Referenced by PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_BackVDC_CenterPosition(), SetVDC_DriftCell_MasterContainer_CenterPosition(), and SetVDC_RotationAngleInPhi().

G4VPhysicalVolume* QweakSimVDC::VDC_CenterHVFoilContainer_Physical

private

Definition at line 277 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

std::vector<G4double> QweakSimVDC::VDC_DriftCell_MasterContainer_XPos

private

Definition at line 210 of file QweakSimVDC.hh.

Referenced by PlaceVDC_DriftCellMasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_DriftCell_MasterContainer_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_DriftCell_MasterContainer_YPos

private

Definition at line 211 of file QweakSimVDC.hh.

Referenced by PlaceVDC_DriftCellMasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_DriftCell_MasterContainer_CenterPosition(), and SetVDC_RotationAngleInPhi().

std::vector<G4double> QweakSimVDC::VDC_DriftCell_MasterContainer_ZPos

private

Definition at line 212 of file QweakSimVDC.hh.

Referenced by PlaceVDC_DriftCellMasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), SetVDC_DriftCell_MasterContainer_CenterPosition(), and SetVDC_RotationAngleInPhi().

G4LogicalVolume* QweakSimVDC::VDC_DriftCellBack_Logical

private

Definition at line 181 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellBack_LogicalVolume(), QweakSimVDC(), SetVDC_DriftCellGeometryUpdate(), and SetVDC_DriftCellMaterial().

G4VPhysicalVolume* QweakSimVDC::VDC_DriftCellBack_Physical

private

Definition at line 182 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellBack_PhysicalVolume(), QweakSimVDC(), and SetVDC_DriftCellGeometryUpdate().

G4Para* QweakSimVDC::VDC_DriftCellBack_Solid

private

Definition at line 180 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and SetVDC_DriftCellGeometryUpdate().

G4VisAttributes* QweakSimVDC::VDC_DriftCellBack_VisAtt

private

Definition at line 230 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and ~QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_DriftCellBackContainer_Logical

private

Definition at line 173 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellBackContainer_LogicalVolume(), QweakSimVDC(), and SetVDC_DriftCellGeometryUpdate().

G4VPhysicalVolume* QweakSimVDC::VDC_DriftCellBackContainer_Physical

private

Definition at line 174 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellBackContainer_PhysicalVolume(), and QweakSimVDC().

G4VisAttributes* QweakSimVDC::VDC_DriftCellBackContainer_VisAtt

private

Definition at line 228 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and ~QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_DriftCellFront_Logical

private

Definition at line 177 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellFront_LogicalVolume(), QweakSimVDC(), SetVDC_DriftCellGeometryUpdate(), and SetVDC_DriftCellMaterial().

G4VPhysicalVolume* QweakSimVDC::VDC_DriftCellFront_Physical

private

Definition at line 178 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellFront_PhysicalVolume(), QweakSimVDC(), and SetVDC_DriftCellGeometryUpdate().

G4Para* QweakSimVDC::VDC_DriftCellFront_Solid

private

Definition at line 176 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and SetVDC_DriftCellGeometryUpdate().

G4VisAttributes* QweakSimVDC::VDC_DriftCellFront_VisAtt

private

Definition at line 229 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and ~QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_DriftCellFrontContainer_Logical

private

Definition at line 170 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellFrontContainer_LogicalVolume(), QweakSimVDC(), and SetVDC_DriftCellGeometryUpdate().

G4VPhysicalVolume* QweakSimVDC::VDC_DriftCellFrontContainer_Physical

private

Definition at line 171 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellFrontContainer_PhysicalVolume(), and QweakSimVDC().

G4VisAttributes* QweakSimVDC::VDC_DriftCellFrontContainer_VisAtt

private

Definition at line 227 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and ~QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_DriftCellMasterContainer_Logical

private

Definition at line 167 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_DriftCellMasterContainer_LogicalVolume(), PlaceVDC_DriftCellMasterContainers(), and QweakSimVDC().

std::vector< G4VPhysicalVolume* > QweakSimVDC::VDC_DriftCellMasterContainer_Physical

private

Definition at line 168 of file QweakSimVDC.hh.

Referenced by getVDC_DriftCellMasterContainer_PhysicalVolume(), PlaceVDC_DriftCellMasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), and SetVDC_RotationAngleInPhi().

G4VisAttributes* QweakSimVDC::VDC_DriftCellMasterContainer_VisAtt

private

Definition at line 226 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and ~QweakSimVDC().

G4double QweakSimVDC::VDC_FrontBackDistance

private

Definition at line 208 of file QweakSimVDC.hh.

Referenced by QweakSimVDC(), and SetVDC_BackVDC_CenterPosition().

G4LogicalVolume* QweakSimVDC::VDC_G10Frame_Logical

private

Definition at line 254 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and SetVDC_G10FrameMaterial().

G4VPhysicalVolume* QweakSimVDC::VDC_G10Frame_Physical

private

Definition at line 255 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4SubtractionSolid* QweakSimVDC::VDC_G10Frame_Solid

private

Definition at line 253 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VisAttributes* QweakSimVDC::VDC_G10Frame_VisAtt

private

Definition at line 283 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_MA_FoilContainer_Logical

private

Definition at line 273 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VisAttributes* QweakSimVDC::VDC_MA_FoilContainer_VisAtt

private

Definition at line 288 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4LogicalVolume* QweakSimVDC::VDC_MasterContainer_Logical

private

Definition at line 246 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_LogicalVolume(), PlaceVDC_MasterContainers(), QweakSimVDC(), and SetVDC_MasterContainerMaterial().

G4VisAttributes* QweakSimVDC::VDC_MasterContainer_VisAtt

private

Definition at line 281 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

std::vector< G4VPhysicalVolume* > QweakSimVDC::VDC_MasterContainerBack_Physical

private

Definition at line 248 of file QweakSimVDC.hh.

Referenced by getVDCBack_PhysicalVolume(), PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), and SetVDC_RotationAngleInPhi().

std::vector< G4VPhysicalVolume* > QweakSimVDC::VDC_MasterContainerFront_Physical

private

Definition at line 247 of file QweakSimVDC.hh.

Referenced by getVDCFront_PhysicalVolume(), PlaceVDC_MasterContainers(), QweakSimVDC(), SetFrontVDC_CenterPositionInX(), SetFrontVDC_CenterPositionInY(), SetFrontVDC_CenterPositionInZ(), and SetVDC_RotationAngleInPhi().

std::vector< QweakSimVDCMessenger* > QweakSimVDC::VDC_Messenger

private

Definition at line 161 of file QweakSimVDC.hh.

Referenced by QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_MylarFoil_Logical

private

Definition at line 263 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and SetVDC_FoilMaterial().

G4double QweakSimVDC::VDC_MylarFoil_Thickness

private

Definition at line 242 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4VisAttributes* QweakSimVDC::VDC_MylarFoil_VisAtt

private

Definition at line 290 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4double QweakSimVDC::VDC_RotationAngleInPhi[2]

private

Definition at line 158 of file QweakSimVDC.hh.

Referenced by QweakSimVDC(), and SetVDC_RotationAngleInPhi().

G4LogicalVolume* QweakSimVDC::VDC_SubContainer_Logical

private

Definition at line 250 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), QweakSimVDC(), and SetVDC_SubContainerMaterial().

G4VPhysicalVolume* QweakSimVDC::VDC_SubContainer_Physical

private

Definition at line 251 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4VisAttributes* QweakSimVDC::VDC_SubContainer_VisAtt

private

Definition at line 282 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and QweakSimVDC().

G4VPhysicalVolume* QweakSimVDC::VDC_TopGasFoilContainer_Physical

private

Definition at line 275 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VPhysicalVolume* QweakSimVDC::VDC_TopHVFoilContainer_Physical

private

Definition at line 276 of file QweakSimVDC.hh.

Referenced by ConstructComponent().

G4VPhysicalVolume* QweakSimVDC::VDC_UPlane_Physical

private

Definition at line 267 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_UWirePlane_PhysicalVolume(), and QweakSimVDC().

G4VPhysicalVolume* QweakSimVDC::VDC_VPlane_Physical

private

Definition at line 268 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_VWirePlane_PhysicalVolume(), and QweakSimVDC().

G4LogicalVolume* QweakSimVDC::VDC_WirePlane_Logical

private

Definition at line 266 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), getVDC_WirePlane_LogicalVolume(), QweakSimVDC(), and SetVDC_WirePlaneMaterial().

G4VisAttributes* QweakSimVDC::VDC_WirePlane_VisAtt

private

Definition at line 291 of file QweakSimVDC.hh.

Referenced by ConstructComponent(), and ~QweakSimVDC().

---

The documentation for this class was generated from the following files:

• QweakSimVDC.hh
• QweakSimVDC.cc
