QweakSimVDCRotator Class Reference

Definition of the Support/Shielding of the Collimators. More...

#include <QweakSimVDCRotator.hh>

Collaboration diagram for QweakSimVDCRotator:

Public Member Functions
	QweakSimVDCRotator ()
	Constructor. More...
	~QweakSimVDCRotator ()
	Destructor. More...
void	SetMotherVolume (G4VPhysicalVolume *mv)
void	ConstructRotatorMasterContainer ()
void	ConstructRings ()
void	ConstructRails ()
void	ConstructMount ()
void	ConstructSliderSupport ()
void	PlacePVSliderSupport (int pkg)
void	PlacePVRails ()
void	PlacePVMount ()
void	SetRingMaterial (G4String)
void	SetRotationAngleInPhi (G4double vdc_phiangle)
G4LogicalVolume *	GetUpstreamRing_LogicalVolume ()
G4VPhysicalVolume *	GetUpstreamRing_PhysicalVolume ()

Private Attributes
QweakSimMaterial *	pMaterial
QweakSimVDC *	DualVDC
G4double	kAngle_GlobalRotation
G4VPhysicalVolume *	theMotherVolume
G4VPhysicalVolume *	RotatorMasterContainer_Physical
G4double	kRing_RadiusMin
G4double	kRing_RadiusMax
G4double	kRing_FullThickness
G4double	kRing_PhiAngleStart
G4double	kRing_PhiAngleEnd
G4LogicalVolume *	UpstreamRing_Logical
G4VPhysicalVolume *	UpstreamRing_Physical
G4double	UpstreamRing_CenterXPosition
G4double	UpstreamRing_CenterYPosition
G4double	UpstreamRing_CenterZPosition
G4LogicalVolume *	DownstreamRing_Logical
G4VPhysicalVolume *	DownstreamRing_Physical
G4double	DownstreamRing_CenterXPosition
G4double	DownstreamRing_CenterYPosition
G4double	DownstreamRing_CenterZPosition
G4double	kRail_FullLength_X
G4double	kRail_FullLength_Y
G4double	kRail_FullLength_Z
G4double	kRail_CenterPositionInR
G4double	kRail_CenterPositionInZ
G4ThreeVector	Translation_LeftRail
G4ThreeVector	Translation_RightRail
G4RotationMatrix *	Rotation_Rail
G4LogicalVolume *	Rail_Logical
G4VPhysicalVolume *	LeftRail_Physical
G4VPhysicalVolume *	RightRail_Physical
G4double	kRod_LR_RadiusMin
G4double	kRod_LR_RadiusMax
G4double	kRod_LR_FullThickness
G4double	kRod_LR_PhiAngleStart
G4double	kRod_LR_PhiAngleEnd
G4double	kRod_LR_StubLength
G4double	kRod_LR_Distance
G4double	kRod_LR_CenterPositionInR
std::vector< G4double >	kRod_LR_CenterPositionInX
std::vector< G4double >	kRod_LR_CenterPositionInY
std::vector< G4double >	kRod_LR_CenterPositionInZ
G4LogicalVolume *	Rod_LeftRight_Logical
std::vector< G4VPhysicalVolume * >	Rod_LeftRight_Physical
G4ThreeVector	Translation_RodLeftUpstream
G4ThreeVector	Translation_RodLeftDownstream
G4ThreeVector	Translation_RodRightUpstream
G4ThreeVector	Translation_RodRightDownstream
G4RotationMatrix *	Rotation_Rod_LR
G4double	kSliderSupport_FullLength_X
G4double	kSliderSupport_FullLength_Y
G4double	kSliderSupport_FullLength_Z
G4double	kSliderSupport_CenterPositionInX
G4double	kSliderSupport_CenterPositionInY
G4double	kSliderSupport_CenterPositionInZ
G4ThreeVector	Translation_LeftSliderSupport
G4ThreeVector	Translation_RightSliderSupport
G4RotationMatrix *	Rotation_SliderSupportLeft
G4RotationMatrix *	Rotation_SliderSupportRight
G4LogicalVolume *	SliderSupportLeft_Logical
std::vector< G4VPhysicalVolume * >	SliderSupportLeft_Physical
G4LogicalVolume *	SliderSupportRight_Logical
std::vector< G4VPhysicalVolume * >	SliderSupportRight_Physical
std::vector< G4SubtractionSolid * >	SliderSupportSubtraction_TempSolid

Detailed Description

Definition of the Support/Shielding of the Collimators.

Placeholder for a long explaination

Definition at line 75 of file QweakSimVDCRotator.hh.

Constructor & Destructor Documentation

QweakSimVDCRotator::QweakSimVDCRotator

(

)

Constructor.

Definition at line 52 of file QweakSimVDCRotator.cc.

References DownstreamRing_CenterXPosition, DownstreamRing_CenterYPosition, DownstreamRing_CenterZPosition, DownstreamRing_Logical, DownstreamRing_Physical, QweakSimMaterial::GetInstance(), kAngle_GlobalRotation, kRail_CenterPositionInR, kRail_CenterPositionInZ, kRail_FullLength_X, kRail_FullLength_Y, kRail_FullLength_Z, kRing_FullThickness, kRing_PhiAngleEnd, kRing_PhiAngleStart, kRing_RadiusMax, kRing_RadiusMin, kRod_LR_CenterPositionInX, kRod_LR_CenterPositionInY, kRod_LR_CenterPositionInZ, kRod_LR_Distance, kRod_LR_FullThickness, kRod_LR_PhiAngleEnd, kRod_LR_PhiAngleStart, kRod_LR_RadiusMax, kRod_LR_RadiusMin, kRod_LR_StubLength, kSliderSupport_CenterPositionInX, kSliderSupport_CenterPositionInY, kSliderSupport_CenterPositionInZ, kSliderSupport_FullLength_X, kSliderSupport_FullLength_Y, kSliderSupport_FullLength_Z, LeftRail_Physical, pMaterial, Rail_Logical, RightRail_Physical, Rod_LeftRight_Logical, Rod_LeftRight_Physical, Rotation_Rail, Rotation_Rod_LR, Rotation_SliderSupportLeft, Rotation_SliderSupportRight, SliderSupportLeft_Logical, SliderSupportLeft_Physical, SliderSupportRight_Logical, SliderSupportRight_Physical, SliderSupportSubtraction_TempSolid, theMotherVolume, UpstreamRing_CenterXPosition, UpstreamRing_CenterYPosition, UpstreamRing_CenterZPosition, UpstreamRing_Logical, and UpstreamRing_Physical.

{
    G4cout << G4endl << "###### Calling QweakSimVDCRotator::QweakCollimatorSupport() " << G4endl << G4endl;

    theMotherVolume = NULL;

  kAngle_GlobalRotation = 90.0*degree;

  // Upstream Ring
  UpstreamRing_Logical  = NULL;
  UpstreamRing_Physical = NULL;

  DownstreamRing_Logical  = NULL;
  DownstreamRing_Physical = NULL;

  kRing_RadiusMax      = 1168.0*mm;
  kRing_RadiusMin      = 1016.0*mm;
  kRing_FullThickness  =  2.0*2.54*cm;
  kRing_PhiAngleStart  =    0.0*degree;
  kRing_PhiAngleEnd    =  360.0*degree;

  UpstreamRing_CenterXPosition =  0.0*cm;
  UpstreamRing_CenterYPosition =  0.0*cm;
  UpstreamRing_CenterZPosition =  4310.36*mm;

  DownstreamRing_CenterXPosition =  0.0*cm;
  DownstreamRing_CenterYPosition =  0.0*cm;
  DownstreamRing_CenterZPosition =  5088.23*mm;

  //==========
  // Rails
  //==========

  Rail_Logical       = NULL;
  LeftRail_Physical  = NULL;
  RightRail_Physical = NULL;

  Rotation_Rail      = NULL;

  kRail_FullLength_X =   1.75*2.54*cm;
  kRail_FullLength_Y = 114.00*2.54*cm;
  kRail_FullLength_Z =   5.00*2.54*cm;

  kRail_CenterPositionInR = (49.1314*2.54*cm + 0.5*kRail_FullLength_X);
  kRail_CenterPositionInZ = 0.5*(DownstreamRing_CenterZPosition + UpstreamRing_CenterZPosition);



  //==================
  // Rods: Left/Right
  //==================

  Rod_LeftRight_Logical   = NULL;
  Rotation_Rod_LR         = NULL;

  kRod_LR_RadiusMin      = 0.0*cm;
  kRod_LR_RadiusMax      = 1.0220*2.54*cm;
  kRod_LR_FullThickness  = 2.8250*2.54*cm;
  kRod_LR_PhiAngleStart  =   0.0*degree;
  kRod_LR_PhiAngleEnd    = 360.0*degree;

  //----------------------
  // [0]: Upstream,Left    rod
  // [1]: Downstream,Left  rod
  // [2]: Upstream,Right   rod
  // [3]: Downstream,Right rod
   //----------------------
  kRod_LR_StubLength =  2.8250*2.54*cm;
  kRod_LR_Distance   = 12.5000*2.54*cm;

  kRod_LR_CenterPositionInX.clear();
  kRod_LR_CenterPositionInX.resize(4);
  kRod_LR_CenterPositionInX[0] = -1.0*(61.0371*2.54*cm - 0.5*kRod_LR_StubLength);
  kRod_LR_CenterPositionInX[1] = -1.0*(61.0371*2.54*cm - 0.5*kRod_LR_StubLength);
  kRod_LR_CenterPositionInX[2] =  1.0*(61.0371*2.54*cm - 0.5*kRod_LR_StubLength);
  kRod_LR_CenterPositionInX[3] =  1.0*(61.0371*2.54*cm - 0.5*kRod_LR_StubLength);

  kRod_LR_CenterPositionInY.clear();
  kRod_LR_CenterPositionInY.resize(4);
  kRod_LR_CenterPositionInY[0] = 111.7677*2.54*cm;
  kRod_LR_CenterPositionInY[1] = 111.7677*2.54*cm;
  kRod_LR_CenterPositionInY[2] = 111.7677*2.54*cm;
  kRod_LR_CenterPositionInY[3] = 111.7677*2.54*cm;

  kRod_LR_CenterPositionInZ.clear();
  kRod_LR_CenterPositionInZ.resize(4);
  kRod_LR_CenterPositionInZ[0] = 178.8866*2.54*cm;
  kRod_LR_CenterPositionInZ[1] = 178.8866*2.54*cm + kRod_LR_Distance;
  kRod_LR_CenterPositionInZ[2] = 178.8866*2.54*cm;
  kRod_LR_CenterPositionInZ[3] = 178.8866*2.54*cm + kRod_LR_Distance;

  //----------------------
  // [0]: Upstream    rod
  // [1]: Downstream  rod
  //----------------------
  //
  Rod_LeftRight_Physical.clear();
  Rod_LeftRight_Physical.resize(4);


  //===============
  // Slider Support
  //===============
  kSliderSupport_FullLength_X =  203.20*mm;
  kSliderSupport_FullLength_Y = 1930.40*mm;
  kSliderSupport_FullLength_Z =  356.97*mm;

  kSliderSupport_CenterPositionInX = 1343.49*mm;
  kSliderSupport_CenterPositionInY = 1714.95*mm;
  kSliderSupport_CenterPositionInZ = 4699.29*mm;

  Rotation_SliderSupportLeft  = NULL;
  Rotation_SliderSupportRight = NULL;

  SliderSupportLeft_Logical   = NULL;
  SliderSupportLeft_Physical.clear();
  SliderSupportLeft_Physical.resize(2);

  SliderSupportRight_Logical  = NULL;
  SliderSupportRight_Physical.clear();
  SliderSupportRight_Physical.resize(2);

  // needed for shaping
  SliderSupportSubtraction_TempSolid.clear();
  SliderSupportSubtraction_TempSolid.resize(16);


  //==================================
  // get access to material definition
  //==================================
  //
  pMaterial = QweakSimMaterial::GetInstance();

  G4cout << G4endl << "###### Leaving QweakSimVDCRotator::QweakCollimatorSupport() " << G4endl << G4endl;
}

Here is the call graph for this function:

QweakSimVDCRotator::~QweakSimVDCRotator

(

)

Destructor.

Definition at line 189 of file QweakSimVDCRotator.cc.

{ }

Member Function Documentation

void QweakSimVDCRotator::ConstructMount

(

)

Definition at line 427 of file QweakSimVDCRotator.cc.

References QweakSimMaterial::GetMaterial(), kRod_LR_FullThickness, kRod_LR_PhiAngleEnd, kRod_LR_PhiAngleStart, kRod_LR_RadiusMax, kRod_LR_RadiusMin, PlacePVMount(), pMaterial, and Rod_LeftRight_Logical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{

   G4cout << G4endl << "###### Calling QweakSimVDCRotator::ConstructMount() " << G4endl << G4endl;

   // assign material
   G4Material* Rod_LeftRight_Material = pMaterial->GetMaterial("StainlessSteel");



  //**********************************************************************************
  //Construct
  G4Tubs* Rod_LeftRight_Solid    = new G4Tubs("Rod_LR_Sol",
                   kRod_LR_RadiusMin ,
                   kRod_LR_RadiusMax ,
               0.5*kRod_LR_FullThickness,
                   kRod_LR_PhiAngleStart,
                   kRod_LR_PhiAngleEnd
             );

  //**********************************************************************************
  // Define UpstreamRing logical and physical volumes

  Rod_LeftRight_Logical  = new G4LogicalVolume(  Rod_LeftRight_Solid,
             Rod_LeftRight_Material,
             "Rod_LeftRight_Logical",
             0,
             0,0);

  //**********************************************************************************

  //Make it pretty...
  G4Colour  blue      (0.,0.,1.);
  G4Colour  mangenta  (237/255.,173/255.,255/255.);
  G4Colour  mangenta1 (104/255., 49/255., 94/255.);
  G4Colour  aluminum      ( 169/255. , 172/255. , 182/255.);
  G4Color   lightsteelblue ( 176/255. , 196/255. , 222/255.);
  //**********************************************************************************
  G4VisAttributes* Rod_LeftRight_VisAtt = new G4VisAttributes(mangenta);
  Rod_LeftRight_VisAtt  ->SetVisibility(true);
  Rod_LeftRight_Logical ->SetVisAttributes(Rod_LeftRight_VisAtt);
  //**********************************************************************************

  // Place the physical volume(s) into the MotherVolume
  PlacePVMount();

} // end of ConstructMount()

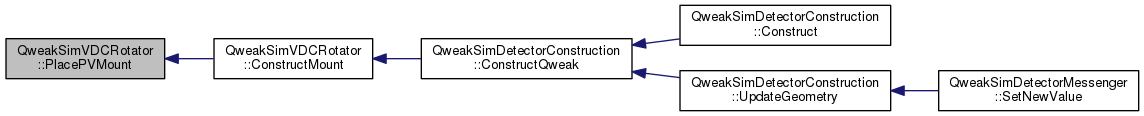

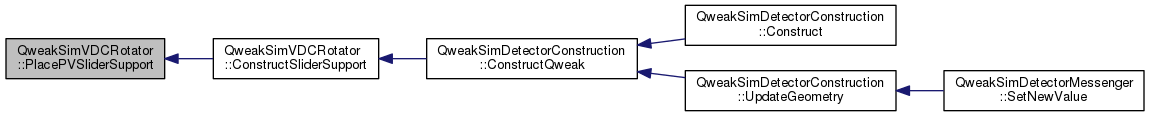

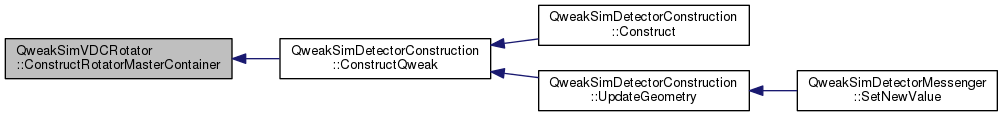

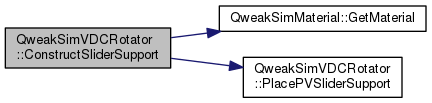

Here is the call graph for this function:

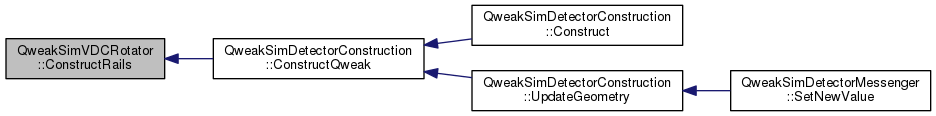

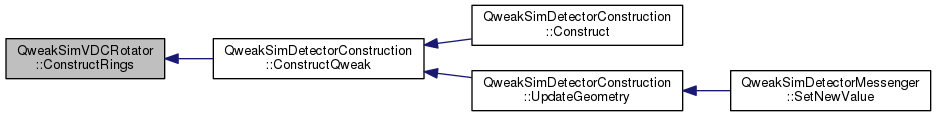

Here is the caller graph for this function:

void QweakSimVDCRotator::ConstructRails

(

)

Definition at line 334 of file QweakSimVDCRotator.cc.

References QweakSimMaterial::GetMaterial(), kRail_FullLength_X, kRail_FullLength_Y, kRail_FullLength_Z, PlacePVRails(), pMaterial, and Rail_Logical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
    G4cout << G4endl << "###### Calling QweakSimVDCRotator::ConstructRails() " << G4endl << G4endl;

   // assign material
   G4Material* Rail_Material = pMaterial->GetMaterial("StainlessSteel");


   G4Box* Rail_Solid = new G4Box("Rail_Solid",
         0.5 * kRail_FullLength_X ,
         0.5 * kRail_FullLength_Y ,
         0.5 * kRail_FullLength_Z );


   Rail_Logical  = new G4LogicalVolume(  Rail_Solid,
           Rail_Material,
           "Rail_Logical",
           0,
           0,0);

      //Make it pretty...
  G4Colour  blue      (0.,0.,1.);
  G4Colour  mangenta  (237/255.,173/255.,255/255.);
  G4Colour  mangenta1 (104/255., 49/255., 94/255.);
  G4Colour  aluminum      ( 169/255. , 172/255. , 182/255.);
  G4Color   lightsteelblue ( 176/255. , 196/255. , 222/255.);
  //**********************************************************************************
  G4VisAttributes* Rails_VisAtt = new G4VisAttributes(blue);
  Rails_VisAtt->SetVisibility(true);
  //  Rails_VisAtt->SetForceSolid(true);
  //  Ring_VisAtt->SetForceWireframe(true);
  Rail_Logical   ->SetVisAttributes(Rails_VisAtt);
  //**********************************************************************************

  // Place the physical volume of the rails into theMotherVolume
  PlacePVRails();

} // end of ConstructRails()

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDCRotator::ConstructRings

(

)

Definition at line 234 of file QweakSimVDCRotator.cc.

References DownstreamRing_CenterXPosition, DownstreamRing_CenterYPosition, DownstreamRing_CenterZPosition, DownstreamRing_Logical, DownstreamRing_Physical, QweakSimMaterial::GetMaterial(), kRing_FullThickness, kRing_PhiAngleEnd, kRing_PhiAngleStart, kRing_RadiusMax, kRing_RadiusMin, pMaterial, pSurfChk, theMotherVolume, UpstreamRing_CenterXPosition, UpstreamRing_CenterYPosition, UpstreamRing_CenterZPosition, UpstreamRing_Logical, and UpstreamRing_Physical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
    G4cout << G4endl << "###### Calling QweakSimVDCRotator::ConstructSupport() " << G4endl << G4endl;

  // assign material
  G4Material* Ring_Material = pMaterial->GetMaterial("StainlessSteel");


  //===============
  // Upstream Ring
  //===============
  G4ThreeVector positionUpstreamRing(UpstreamRing_CenterXPosition,
             UpstreamRing_CenterYPosition,
             UpstreamRing_CenterZPosition);

  //**********************************************************************************
  //Construct
  G4Tubs* UpstreamRing_Solid    = new G4Tubs("UpstreamRing_Sol",
                   kRing_RadiusMin ,
                   kRing_RadiusMax ,
               0.5*kRing_FullThickness,
                   kRing_PhiAngleStart,
                   kRing_PhiAngleEnd
             );

  //**********************************************************************************
  // Define UpstreamRing logical and physical volumes

  UpstreamRing_Logical  = new G4LogicalVolume( UpstreamRing_Solid,
                 Ring_Material,
                 "UpstreamRing_Log",
                 0,0,0);

  UpstreamRing_Physical   = new G4PVPlacement(0,
                positionUpstreamRing,
                "UpstreamRing",
                UpstreamRing_Logical,
                theMotherVolume,
                false,
                0,
                pSurfChk);

  //**********************************************************************************

  //===============
  // Downstream Ring
  //===============
  G4ThreeVector positionDownstreamRing(DownstreamRing_CenterXPosition,
               DownstreamRing_CenterYPosition,
               DownstreamRing_CenterZPosition);

  //**********************************************************************************
  //Construct
  G4Tubs* DownstreamRing_Solid    = new G4Tubs("DownstreamRing_Sol",
                   kRing_RadiusMin ,
                   kRing_RadiusMax ,
               0.5*kRing_FullThickness,
                   kRing_PhiAngleStart,
                   kRing_PhiAngleEnd
             );

  //**********************************************************************************
  // Define DownsreamRing logical and physical volumes

  DownstreamRing_Logical  = new G4LogicalVolume( DownstreamRing_Solid,
             Ring_Material,
             "DownstreamRing_Log",
             0,0,0);

  DownstreamRing_Physical   = new G4PVPlacement(0,
            positionDownstreamRing,
            "UpstreamRing",
            DownstreamRing_Logical,
            theMotherVolume,
            false,
            0,
            pSurfChk);

  //Make it pretty...
  G4Colour  blue      (0.,0.,1.);
  G4Colour  mangenta  (237/255.,173/255.,255/255.);
  G4Colour  mangenta1 (104/255., 49/255., 94/255.);
  G4Colour  aluminum      ( 169/255. , 172/255. , 182/255.);
  G4Color   lightsteelblue ( 176/255. , 196/255. , 222/255.);

   //**********************************************************************************
  G4VisAttributes* Ring_VisAtt = new G4VisAttributes(aluminum);
  Ring_VisAtt->SetVisibility(true);
  //  Ring_VisAtt->SetForceSolid(true);
  //  Ring_VisAtt->SetForceWireframe(true);
  UpstreamRing_Logical   ->SetVisAttributes(Ring_VisAtt);
  DownstreamRing_Logical ->SetVisAttributes(Ring_VisAtt);
  //**********************************************************************************


  G4cout << G4endl << "###### Leaving QweakSimVDCRotator::ConstructSupport() " << G4endl << G4endl;

}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimVDCRotator::ConstructRotatorMasterContainer

(

)

Definition at line 192 of file QweakSimVDCRotator.cc.

References QweakSimMaterial::GetMaterial(), kAngle_GlobalRotation, kRail_CenterPositionInR, kRail_CenterPositionInZ, kSliderSupport_FullLength_Z, pMaterial, pSurfChk, RotatorMasterContainer_Physical, and theMotherVolume.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
    G4cout << G4endl << "###### Calling QweakSimVDCRotator::RotatorMasterContainer() " << G4endl << G4endl;

   G4Box* RotatorMasterContainer_Solid = new G4Box("RotatorMasterContainer_Solid",
         0.5 * (6.6*m),
         0.5 * (2.0*kRail_CenterPositionInR+50.0*cm),
         0.5 * (kSliderSupport_FullLength_Z +2.0*cm ));

   G4LogicalVolume* RotatorMasterContainer_Logical  = new G4LogicalVolume(  RotatorMasterContainer_Solid,
           pMaterial->GetMaterial("Air"),
           "RotatorMasterContainer_Logical",
           0,
           0,0);

  G4Colour  aluminum      ( 169/255. , 172/255. , 182/255.);
  G4VisAttributes* RotatorMasterContainer_VisAtt = new G4VisAttributes(aluminum);
  RotatorMasterContainer_VisAtt->SetForceWireframe(true);
  RotatorMasterContainer_VisAtt->SetVisibility(false);
  RotatorMasterContainer_Logical->SetVisAttributes(RotatorMasterContainer_VisAtt);

  // Place the physical volume into theMotherVolume

   G4ThreeVector Translation_RotatorMasterContainer;
   Translation_RotatorMasterContainer.setZ(kRail_CenterPositionInZ);

   G4RotationMatrix* Rotation_RotatorMasterContainer = new G4RotationMatrix();
   Rotation_RotatorMasterContainer->rotateZ(kAngle_GlobalRotation);

   RotatorMasterContainer_Physical   = new G4PVPlacement(Rotation_RotatorMasterContainer,
             Translation_RotatorMasterContainer,
             "RotatorMasterContainer_Physical",
             RotatorMasterContainer_Logical,
             theMotherVolume,
             false,
             0,
             pSurfChk);

}

Here is the call graph for this function:

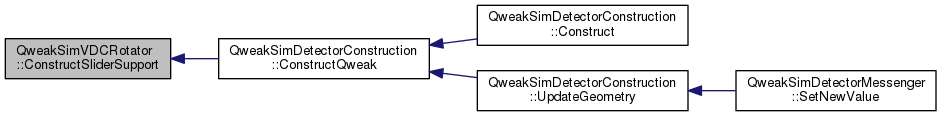

Here is the caller graph for this function:

void QweakSimVDCRotator::ConstructSliderSupport

(

)

Definition at line 577 of file QweakSimVDCRotator.cc.

References QweakSimMaterial::GetMaterial(), kSliderSupport_FullLength_X, kSliderSupport_FullLength_Y, kSliderSupport_FullLength_Z, PlacePVSliderSupport(), pMaterial, SliderSupportLeft_Logical, SliderSupportRight_Logical, and SliderSupportSubtraction_TempSolid.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
   G4cout << G4endl << "###### Calling QweakSimVDCRotator::ConstructSliderSupport() " << G4endl << G4endl;

   // assign material
   G4Material* SliderSupport_Material = pMaterial->GetMaterial("StainlessSteel");


   G4Box* SliderSupportLeft_Solid = new G4Box("SliderSupportLeft_Solid",
                0.5 * kSliderSupport_FullLength_X ,
                0.5 * kSliderSupport_FullLength_Y ,
                0.5 * kSliderSupport_FullLength_Z );

   G4Box* SliderSupportRight_Solid = new G4Box("SliderSupportRight_Solid",
                0.5 * kSliderSupport_FullLength_X ,
                0.5 * kSliderSupport_FullLength_Y ,
                0.5 * kSliderSupport_FullLength_Z );


   //-------------------------------------------------------------------------------------------------------------------------------

   G4Box* SubtractInnerBox_Solid  = new G4Box("SubtractInnerBox_Solid",
                0.5 * 2*4.00*2.54*cm,
                0.5 * kSliderSupport_FullLength_Y +0.1*mm,
                0.5 * 3.50*2.54*cm);


   std::vector< G4ThreeVector >  LocalTranslation_InnerBox_Subtract;
   LocalTranslation_InnerBox_Subtract.clear();
   LocalTranslation_InnerBox_Subtract.resize(4);

   // Left Slider: Upstream Inner Box
   LocalTranslation_InnerBox_Subtract[0].setX(-1.0*(0.5*203.20*mm));
   LocalTranslation_InnerBox_Subtract[0].setY(0.0*cm);
   LocalTranslation_InnerBox_Subtract[0].setZ(-1.0*(1.0+0.5*3.50)*2.54*cm);

   // Left Slider: Downstream Inner Box
   LocalTranslation_InnerBox_Subtract[1].setX(-1.0*(0.5*203.20*mm));
   LocalTranslation_InnerBox_Subtract[1].setY(0.0*cm);
   LocalTranslation_InnerBox_Subtract[1].setZ(+1.0*(1.0+0.5*3.50)*2.54*cm);


   // Right Slider: Upstream Inner Box
   LocalTranslation_InnerBox_Subtract[2].setX(+1.0*(0.5*203.20*mm));
   LocalTranslation_InnerBox_Subtract[2].setY(0.0*cm);
   LocalTranslation_InnerBox_Subtract[2].setZ(-1.0*(1.0+0.5*3.50)*2.54*cm);

   // Right Slider: Downstream Inner Box
   LocalTranslation_InnerBox_Subtract[3].setX(+1.0*(0.5*203.20*mm));
   LocalTranslation_InnerBox_Subtract[3].setY(0.0*cm);
   LocalTranslation_InnerBox_Subtract[3].setZ(+1.0*(1.0+0.5*3.50)*2.54*cm);


   // dummy rotation matrix
   G4RotationMatrix LocalRotation_InnerBox_Subtraction;

   G4Transform3D    Transform3D_InnerUpstreamSubtraction_LeftSlider(LocalRotation_InnerBox_Subtraction, LocalTranslation_InnerBox_Subtract[0] );
   //
   SliderSupportSubtraction_TempSolid[4] =  new G4SubtractionSolid ("SliderLeft-InnerUpstreamBox",
                    SliderSupportLeft_Solid,
                    //SliderSupportSubtraction_TempSolid[1],
                    SubtractInnerBox_Solid,
                    Transform3D_InnerUpstreamSubtraction_LeftSlider);

   G4Transform3D    Transform3D_InnerUpstreamSubtraction_RightSlider(LocalRotation_InnerBox_Subtraction, LocalTranslation_InnerBox_Subtract[2] );
   //
   SliderSupportSubtraction_TempSolid[5] =  new G4SubtractionSolid ("SliderRight-InnerUpstreamBox",
                    SliderSupportRight_Solid,
                    //SliderSupportSubtraction_TempSolid[1],
                    SubtractInnerBox_Solid,
                    Transform3D_InnerUpstreamSubtraction_RightSlider);


   G4Transform3D    Transform3D_InnerDownstreamSubtraction_LeftSlider(LocalRotation_InnerBox_Subtraction, LocalTranslation_InnerBox_Subtract[1] );
   //
   SliderSupportSubtraction_TempSolid[6] =  new G4SubtractionSolid ("SliderLeft-InnerDownstreamBox",
                    SliderSupportSubtraction_TempSolid[4],
                    SubtractInnerBox_Solid,
                    Transform3D_InnerDownstreamSubtraction_LeftSlider);

   G4Transform3D    Transform3D_InnerDownstreamSubtraction_RightSlider(LocalRotation_InnerBox_Subtraction, LocalTranslation_InnerBox_Subtract[3] );
   //
   SliderSupportSubtraction_TempSolid[7] =  new G4SubtractionSolid ("SliderRight-InnerDownstreamBox",
                    SliderSupportSubtraction_TempSolid[5],
                    SubtractInnerBox_Solid,
                    Transform3D_InnerDownstreamSubtraction_RightSlider);


  //-------------------------------------------------------------------------------------------------------------------------------
   G4Box* SubtractBottomBox_Solid  = new G4Box("SubtractBottomBox_Solid",
                 0.5 * 2*3.25*2.54*cm,
                 0.5 * kSliderSupport_FullLength_Y +0.1*mm,
                 0.5 * 9.00*2.54*cm);


   std::vector< G4ThreeVector >  LocalTranslation_BottomBox_Subtract;
   LocalTranslation_BottomBox_Subtract.clear();
   LocalTranslation_BottomBox_Subtract.resize(2);

   // Left Slider: Bottom Box
   LocalTranslation_BottomBox_Subtract[0].setX(+1.0*(0.5*203.20*mm));
   LocalTranslation_BottomBox_Subtract[0].setY(0.0*cm);
   LocalTranslation_BottomBox_Subtract[0].setZ(0.0*cm);

   // Right Slider: Bottom Box
   LocalTranslation_BottomBox_Subtract[1].setX(-1.0*(0.5*203.20*mm));
   LocalTranslation_BottomBox_Subtract[1].setY(0.0*cm);
   LocalTranslation_BottomBox_Subtract[1].setZ(0.0*cm);



   // dummy rotation matrix
   G4RotationMatrix LocalRotation_BottomBox_Subtraction;

   G4Transform3D    Transform3D_BottomSubtraction_LeftSlider(LocalRotation_BottomBox_Subtraction, LocalTranslation_BottomBox_Subtract[0] );
   //
   SliderSupportSubtraction_TempSolid[8] =  new G4SubtractionSolid ("SliderLeft-BottomBox",
                    //SliderSupportLeft_Solid,
                    SliderSupportSubtraction_TempSolid[6],
                    SubtractBottomBox_Solid,
                    Transform3D_BottomSubtraction_LeftSlider);

   G4Transform3D    Transform3D_BottomSubtraction_RightSlider(LocalRotation_BottomBox_Subtraction, LocalTranslation_BottomBox_Subtract[1] );
   //
   SliderSupportSubtraction_TempSolid[9] =  new G4SubtractionSolid ("SliderRight-BottomBox",
                    //SliderSupportRight_Solid,
                    SliderSupportSubtraction_TempSolid[7],
                    SubtractBottomBox_Solid,
                    Transform3D_BottomSubtraction_RightSlider);
   //-------------------------------------------------------------------------------------------------------------------------------
  G4Box* SubtractOuterBox_Solid  = new G4Box("SubtractOuterBox_Solid",
                0.5 * 6.82*2.54*cm + 0.1*mm,
                0.5 * kSliderSupport_FullLength_Y +0.1*mm,
                0.5 * (2*1.937)*2.54*cm);


   std::vector< G4ThreeVector >  LocalTranslation_OuterBox_Subtract;
   LocalTranslation_OuterBox_Subtract.clear();
   LocalTranslation_OuterBox_Subtract.resize(2);

   // Upstream Outer Box
   LocalTranslation_OuterBox_Subtract[0].setX(0.0*cm);
   LocalTranslation_OuterBox_Subtract[0].setY(0.0*cm);
   LocalTranslation_OuterBox_Subtract[0].setZ(-1.0*(4.50+2.527)*2.54*cm);

   // Downstream Outer Box
   LocalTranslation_OuterBox_Subtract[1].setX(0.0*cm);
   LocalTranslation_OuterBox_Subtract[1].setY(0.0*cm);
   LocalTranslation_OuterBox_Subtract[1].setZ(+1.0*(4.50+2.527)*2.54*cm);


   // dummy rotation matrix
   G4RotationMatrix LocalRotation_OuterBox_Subtraction;

   G4Transform3D    Transform3D_OuterUpstreamSubtraction(LocalRotation_OuterBox_Subtraction, LocalTranslation_OuterBox_Subtract[0] );

   SliderSupportSubtraction_TempSolid[0] =  new G4SubtractionSolid ("SliderLeft-OuterUpstreamBox",
                    //SliderSupportLeft_Solid,
                    SliderSupportSubtraction_TempSolid[8],
                    SubtractOuterBox_Solid,
                    Transform3D_OuterUpstreamSubtraction);

   SliderSupportSubtraction_TempSolid[1] =  new G4SubtractionSolid ("SliderRight-OuterUpstreamBox",
                     //SliderSupportRight_Solid,
                     SliderSupportSubtraction_TempSolid[9],
                     SubtractOuterBox_Solid,
                     Transform3D_OuterUpstreamSubtraction);

   G4Transform3D    Transform3D_OuterDownstreamSubtraction(LocalRotation_OuterBox_Subtraction, LocalTranslation_OuterBox_Subtract[1] );

   SliderSupportSubtraction_TempSolid[2] =  new G4SubtractionSolid ("SliderLeft-OuterDownstreamBox",
                    SliderSupportSubtraction_TempSolid[0],
                    SubtractOuterBox_Solid,
                    Transform3D_OuterDownstreamSubtraction);

   SliderSupportSubtraction_TempSolid[3] =  new G4SubtractionSolid ("SliderRight-OuterDownstreamBox",
                    SliderSupportSubtraction_TempSolid[1],
                    SubtractOuterBox_Solid,
                    Transform3D_OuterDownstreamSubtraction);


   //-------------------------------------------------------------------------------------------------------------------------------



   //==================================================================================================
   //                       Define final SliderSupport logical volume
   //==================================================================================================
    G4cout << G4endl << "###### QweakSimVDCRotator: Define SliderSupport_Logical " << G4endl << G4endl;

    SliderSupportLeft_Logical  = new G4LogicalVolume(  SliderSupportSubtraction_TempSolid[2],
                   SliderSupport_Material,
                   "SliderSupportLeft_Logical",
                   0,
                   0,0);

    SliderSupportRight_Logical  = new G4LogicalVolume(  SliderSupportSubtraction_TempSolid[3],
              SliderSupport_Material,
              "SliderSupportRight_Logical",
              0,
              0,0);
    //==================================================================================================

    //Make it pretty...
    G4Colour  blue      (0.,0.,1.);
    G4Colour  mangenta  (237/255.,173/255.,255/255.);
    G4Colour  mangenta1 (104/255., 49/255., 94/255.);
    G4Colour  aluminum      ( 169/255. , 172/255. , 182/255.);
    G4Color   lightsteelblue ( 176/255. , 196/255. , 222/255.);
    //**********************************************************************************
    G4VisAttributes* SliderSupport_VisAtt = new G4VisAttributes(lightsteelblue);
    SliderSupport_VisAtt       ->SetVisibility(true);
    SliderSupportLeft_Logical  ->SetVisAttributes(SliderSupport_VisAtt);
    SliderSupportRight_Logical ->SetVisAttributes(SliderSupport_VisAtt);
    //**********************************************************************************

    PlacePVSliderSupport(1);
    PlacePVSliderSupport(2);

} // end of ConstructSliderSupport()

Here is the call graph for this function:

Here is the caller graph for this function:

G4LogicalVolume* QweakSimVDCRotator::GetUpstreamRing_LogicalVolume ( )

inline

Definition at line 207 of file QweakSimVDCRotator.hh.

References UpstreamRing_Logical.

{return UpstreamRing_Logical;}

G4VPhysicalVolume* QweakSimVDCRotator::GetUpstreamRing_PhysicalVolume ( )

inline

Definition at line 208 of file QweakSimVDCRotator.hh.

References UpstreamRing_Physical.

{return UpstreamRing_Physical;}

void QweakSimVDCRotator::PlacePVMount

(

)

Definition at line 476 of file QweakSimVDCRotator.cc.

References kRod_LR_CenterPositionInX, kRod_LR_CenterPositionInY, pSurfChk, Rod_LeftRight_Logical, Rod_LeftRight_Physical, Rotation_Rod_LR, RotatorMasterContainer_Physical, Translation_RodLeftDownstream, Translation_RodLeftUpstream, Translation_RodRightDownstream, and Translation_RodRightUpstream.

Referenced by ConstructMount().

{

  G4ThreeVector* CenterRodLeftUpstream    = new G4ThreeVector();
  G4ThreeVector* CenterRodLeftDownstream  = new G4ThreeVector();

  G4ThreeVector* CenterRodRightUpstream    = new G4ThreeVector();
  G4ThreeVector* CenterRodRightDownstream  = new G4ThreeVector();


  CenterRodLeftUpstream->setX(kRod_LR_CenterPositionInX[0]);
  CenterRodLeftUpstream->setY(kRod_LR_CenterPositionInY[0]);
  //CenterRodLeftUpstream->setZ(kRod_LR_CenterPositionInZ[0]);
  //
  CenterRodLeftDownstream->setX(kRod_LR_CenterPositionInX[1]);
  CenterRodLeftDownstream->setY(kRod_LR_CenterPositionInY[1]);
  //CenterRodLeftDownstream->setZ(kRod_LR_CenterPositionInZ[1]);


  CenterRodRightUpstream->setX(kRod_LR_CenterPositionInX[2]);
  CenterRodRightUpstream->setY(kRod_LR_CenterPositionInY[2]);
  //CenterRodRightUpstream->setZ(kRod_LR_CenterPositionInZ[2]);
  //
  CenterRodRightDownstream->setX(kRod_LR_CenterPositionInX[3]);
  CenterRodRightDownstream->setY(kRod_LR_CenterPositionInY[3]);
  //CenterRodRightDownstream->setZ(kRod_LR_CenterPositionInZ[3]);



   // rotate center vectors of rails
//   CenterRodLeftUpstream    ->rotateZ(kAngle_GlobalRotation);
//   CenterRodLeftDownstream  ->rotateZ(kAngle_GlobalRotation);
//   CenterRodRightUpstream   ->rotateZ(kAngle_GlobalRotation);
//   CenterRodRightDownstream ->rotateZ(kAngle_GlobalRotation);


  Translation_RodLeftUpstream.setX( CenterRodLeftUpstream->y() );
  Translation_RodLeftUpstream.setY( CenterRodLeftUpstream->x() );
  //Translation_RodLeftUpstream.setZ( CenterRodLeftUpstream->z() );
  //
  Translation_RodLeftDownstream.setX( CenterRodLeftDownstream->y() );
  Translation_RodLeftDownstream.setY( CenterRodLeftDownstream->x() );
  //Translation_RodLeftDownstream.setZ( CenterRodLeftDownstream->z() );


  Translation_RodRightUpstream.setX( CenterRodRightUpstream->y() );
  Translation_RodRightUpstream.setY( CenterRodRightUpstream->x() );
  //Translation_RodRightUpstream.setZ( CenterRodRightUpstream->z() );
  //
  Translation_RodRightDownstream.setX( CenterRodRightDownstream->y() );
  Translation_RodRightDownstream.setY( CenterRodRightDownstream->x() );
  //Translation_RodRightDownstream.setZ( CenterRodRightDownstream->z() );



  Rotation_Rod_LR = new G4RotationMatrix();
  Rotation_Rod_LR->rotateY(90*degree);
  //Rotation_Rod_LR->rotateX(kAngle_GlobalRotation -90*degree);
  Rotation_Rod_LR->rotateX(-90*degree);



  Rod_LeftRight_Physical[0]   = new G4PVPlacement(Rotation_Rod_LR,
               Translation_RodLeftUpstream,
               "RodLR_LeftUpstream_Physical",
               Rod_LeftRight_Logical,
               RotatorMasterContainer_Physical,
               false,
               0,
               pSurfChk);

  Rod_LeftRight_Physical[1]   = new G4PVPlacement(Rotation_Rod_LR,
                Translation_RodRightUpstream,
                "RodLR_RightUpstream_Physical",
                Rod_LeftRight_Logical,
                RotatorMasterContainer_Physical,
                false,
                0,
                pSurfChk);

  Rod_LeftRight_Physical[2]   = new G4PVPlacement(Rotation_Rod_LR,
                Translation_RodLeftDownstream,
                "RodLR_LeftDownstream_Physical",
                Rod_LeftRight_Logical,
                RotatorMasterContainer_Physical,
                false,
                0,
                pSurfChk);

  Rod_LeftRight_Physical[3]   = new G4PVPlacement(Rotation_Rod_LR,
                Translation_RodRightDownstream,
                "RodLR_RightDownstream_Physical",
                Rod_LeftRight_Logical,
                RotatorMasterContainer_Physical,
                false,
                0,
                pSurfChk);

}  // end of PlacePVMount()

Here is the caller graph for this function:

void QweakSimVDCRotator::PlacePVRails

(

)

Definition at line 374 of file QweakSimVDCRotator.cc.

References kRail_CenterPositionInR, LeftRail_Physical, pSurfChk, Rail_Logical, RightRail_Physical, Rotation_Rail, RotatorMasterContainer_Physical, Translation_LeftRail, and Translation_RightRail.

Referenced by ConstructRails().

{

   G4ThreeVector* CenterRailLeft  = new G4ThreeVector();
   G4ThreeVector* CenterRailRight = new G4ThreeVector();

   CenterRailLeft->setX(-1.0*kRail_CenterPositionInR);
   CenterRailLeft->setY(0.0*cm);
   CenterRailLeft->setZ(0.0*cm);

   CenterRailRight->setX(1.0*kRail_CenterPositionInR);
   CenterRailRight->setY(0.0*cm);
   CenterRailRight->setZ(0.0*cm);

   // rotate center vectors of rails
   // CenterRailLeft  ->rotateZ(kAngle_GlobalRotation);
   // CenterRailRight ->rotateZ(kAngle_GlobalRotation);

   Translation_LeftRail.setX( CenterRailLeft->y() );
   Translation_LeftRail.setY( CenterRailLeft->x() );
   //Translation_LeftRail.setZ(kRail_CenterPositionInZ);

   Translation_RightRail.setX( CenterRailRight->y() );
   Translation_RightRail.setY( CenterRailRight->x() );
   //Translation_RightRail.setZ(kRail_CenterPositionInZ);

   // since the SingleCoil_ClampPlate_Logical is defined for a vertical orientation
   // but the translation assumes a horizontal orinetation, we have to subtract 90*deg
   Rotation_Rail = new G4RotationMatrix();
   //Rotation_Rail->rotateZ(kAngle_GlobalRotation -90*degree);
   Rotation_Rail->rotateZ( -90*degree);


   LeftRail_Physical   = new G4PVPlacement(Rotation_Rail,
             Translation_LeftRail,
             "LeftRail_Physical",
             Rail_Logical,
             RotatorMasterContainer_Physical,
             false,
             0,
             pSurfChk);

   RightRail_Physical   = new G4PVPlacement(Rotation_Rail,
              Translation_RightRail,
              "RightRail_Physical",
              Rail_Logical,
              RotatorMasterContainer_Physical,
              false,
              0,
              pSurfChk);
}

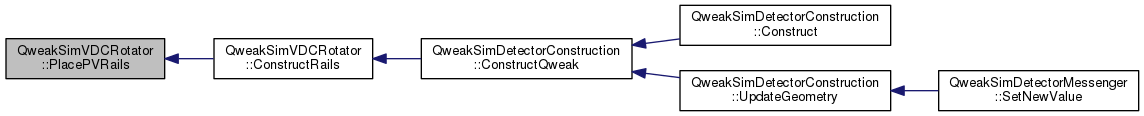

Here is the caller graph for this function:

void QweakSimVDCRotator::PlacePVSliderSupport

(

int

pkg

)

Definition at line 802 of file QweakSimVDCRotator.cc.

References kSliderSupport_CenterPositionInX, kSliderSupport_CenterPositionInY, pSurfChk, Rotation_SliderSupportLeft, Rotation_SliderSupportRight, RotatorMasterContainer_Physical, SliderSupportLeft_Logical, SliderSupportLeft_Physical, SliderSupportRight_Logical, SliderSupportRight_Physical, Translation_LeftSliderSupport, and Translation_RightSliderSupport.

Referenced by ConstructSliderSupport().

{

   G4ThreeVector* leftcenter  = new G4ThreeVector();
   G4ThreeVector* rightcenter = new G4ThreeVector();


   // set the vectors to the center of left and right slider support
   // located at 12 o'clock. Then rotate these vectors to the final
   // positions and extract the new vector components
   // This procedure is easier than the calculation by hand


     leftcenter->setX(-1.0*kSliderSupport_CenterPositionInX);
     leftcenter->setY(     kSliderSupport_CenterPositionInY);
     //leftcenter->setZ(     kSliderSupport_CenterPositionInZ);

     rightcenter->setX(    kSliderSupport_CenterPositionInX);
     rightcenter->setY(    kSliderSupport_CenterPositionInY);
     //rightcenter->setZ(    kSliderSupport_CenterPositionInZ);

     // rotate center vector to coils
     //leftcenter  ->rotateZ(kAngle_GlobalRotation);
     //rightcenter ->rotateZ(kAngle_GlobalRotation);


     double reverser = 1.0;
     if(pkg == 2)
       reverser = -1.0;

     Translation_LeftSliderSupport.setX( reverser*leftcenter->y() );
     Translation_LeftSliderSupport.setY( reverser*leftcenter->x() );
     //Translation_LeftSliderSupport.setZ( leftcenter->z() );

     Translation_RightSliderSupport.setX( reverser*rightcenter->y() );
     Translation_RightSliderSupport.setY( reverser*rightcenter->x() );
     //Translation_RightSliderSupport.setZ( rightcenter->z() );


     // since the SingleCoil_ClampPlate_Logical is defined for a vertical orientation
     // but the translation assumes a horizontal orinetation, we have to subtract 90*deg
     Rotation_SliderSupportLeft = new G4RotationMatrix();
     //Rotation_SliderSupportLeft->rotateZ(kAngle_GlobalRotation -90*degree + (pkg-1)*180.0*degree);
     Rotation_SliderSupportLeft->rotateZ( -90*degree + (pkg-1)*180.0*degree);

     Rotation_SliderSupportRight = new G4RotationMatrix();
     //Rotation_SliderSupportRight->rotateZ(kAngle_GlobalRotation -90*degree + (pkg-1)*180.0*degree);
     Rotation_SliderSupportRight->rotateZ( -90*degree + (pkg-1)*180.0*degree);


     //place sliders for package 1, 2

     SliderSupportLeft_Physical.at(pkg-1)   = new G4PVPlacement(Rotation_SliderSupportLeft,
                  Translation_LeftSliderSupport,
                  Form("SliderSupportLeft_Pkg%d_Physical",pkg),
                  SliderSupportLeft_Logical,
                  RotatorMasterContainer_Physical,
                  false,
                  0,
                  pSurfChk);

     SliderSupportRight_Physical.at(pkg-1)   = new G4PVPlacement(Rotation_SliderSupportRight,
                   Translation_RightSliderSupport,
                   Form("SliderSupportRight_Pkg%d_Physical",pkg),
                   SliderSupportRight_Logical,
                   RotatorMasterContainer_Physical,
                   false,
                   0,
                   pSurfChk);

}  // end of PlacePV_SliderSupport()

Here is the caller graph for this function:

void QweakSimVDCRotator::SetMotherVolume ( G4VPhysicalVolume *  mv )

inline

Definition at line 193 of file QweakSimVDCRotator.hh.

References theMotherVolume.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{ theMotherVolume = mv;}

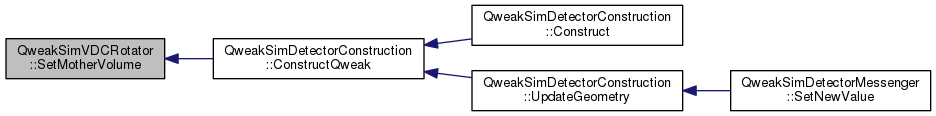

Here is the caller graph for this function:

void QweakSimVDCRotator::SetRingMaterial

(

G4String

materialName

)

Sets the material of the skider rings

Parameters

materialName

Name of the material defined in class QweakSimG4Material

Definition at line 875 of file QweakSimVDCRotator.cc.

References DownstreamRing_Logical, and UpstreamRing_Logical.

{
//---------------------------------------------------------------------------------------------
//! Sets the material of the skider rings
 /*!

 \param materialName Name of the material defined in class QweakSimG4Material

 */
//---------------------------------------------------------------------------------------------

  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);

  if (pttoMaterial)
      {
      UpstreamRing_Logical   ->SetMaterial(pttoMaterial);
      DownstreamRing_Logical ->SetMaterial(pttoMaterial);
  }
}

void QweakSimVDCRotator::SetRotationAngleInPhi

(

G4double

vdc_phiangle

)

Definition at line 896 of file QweakSimVDCRotator.cc.

References kAngle_GlobalRotation, and RotatorMasterContainer_Physical.

Referenced by QweakSimDetectorConstruction::ConstructQweak(), and QweakSimVDCMessenger::SetNewValue().

{
    G4cout << G4endl << "###### Calling QweakSimVDCRotator::SetRotationAngleInPhi() " << G4endl << G4endl;

    kAngle_GlobalRotation = vdc_phiangle -90.0*degree;

 G4RotationMatrix* Rotation_RotatorMasterContainer = new G4RotationMatrix();
 Rotation_RotatorMasterContainer->setPhi(vdc_phiangle);
 RotatorMasterContainer_Physical->SetRotation(Rotation_RotatorMasterContainer);

}

Here is the caller graph for this function:

Field Documentation

G4double QweakSimVDCRotator::DownstreamRing_CenterXPosition

private

Definition at line 108 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::DownstreamRing_CenterYPosition

private

Definition at line 109 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::DownstreamRing_CenterZPosition

private

Definition at line 110 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4LogicalVolume* QweakSimVDCRotator::DownstreamRing_Logical

private

Definition at line 105 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), QweakSimVDCRotator(), and SetRingMaterial().

G4VPhysicalVolume* QweakSimVDCRotator::DownstreamRing_Physical

private

Definition at line 106 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

QweakSimVDC* QweakSimVDCRotator::DualVDC

private

Definition at line 82 of file QweakSimVDCRotator.hh.

G4double QweakSimVDCRotator::kAngle_GlobalRotation

private

Definition at line 84 of file QweakSimVDCRotator.hh.

Referenced by ConstructRotatorMasterContainer(), QweakSimVDCRotator(), and SetRotationAngleInPhi().

G4double QweakSimVDCRotator::kRail_CenterPositionInR

private

Definition at line 117 of file QweakSimVDCRotator.hh.

Referenced by ConstructRotatorMasterContainer(), PlacePVRails(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRail_CenterPositionInZ

private

Definition at line 118 of file QweakSimVDCRotator.hh.

Referenced by ConstructRotatorMasterContainer(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRail_FullLength_X

private

Definition at line 114 of file QweakSimVDCRotator.hh.

Referenced by ConstructRails(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRail_FullLength_Y

private

Definition at line 115 of file QweakSimVDCRotator.hh.

Referenced by ConstructRails(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRail_FullLength_Z

private

Definition at line 116 of file QweakSimVDCRotator.hh.

Referenced by ConstructRails(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRing_FullThickness

private

Definition at line 92 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRing_PhiAngleEnd

private

Definition at line 94 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRing_PhiAngleStart

private

Definition at line 93 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRing_RadiusMax

private

Definition at line 91 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRing_RadiusMin

private

Definition at line 90 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_CenterPositionInR

private

Definition at line 140 of file QweakSimVDCRotator.hh.

std::vector< G4double > QweakSimVDCRotator::kRod_LR_CenterPositionInX

private

Definition at line 142 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount(), and QweakSimVDCRotator().

std::vector< G4double > QweakSimVDCRotator::kRod_LR_CenterPositionInY

private

Definition at line 143 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount(), and QweakSimVDCRotator().

std::vector< G4double > QweakSimVDCRotator::kRod_LR_CenterPositionInZ

private

Definition at line 144 of file QweakSimVDCRotator.hh.

Referenced by QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_Distance

private

Definition at line 138 of file QweakSimVDCRotator.hh.

Referenced by QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_FullThickness

private

Definition at line 133 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_PhiAngleEnd

private

Definition at line 135 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_PhiAngleStart

private

Definition at line 134 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_RadiusMax

private

Definition at line 132 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_RadiusMin

private

Definition at line 131 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kRod_LR_StubLength

private

Definition at line 137 of file QweakSimVDCRotator.hh.

Referenced by QweakSimVDCRotator().

G4double QweakSimVDCRotator::kSliderSupport_CenterPositionInX

private

Definition at line 165 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kSliderSupport_CenterPositionInY

private

Definition at line 166 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kSliderSupport_CenterPositionInZ

private

Definition at line 167 of file QweakSimVDCRotator.hh.

Referenced by QweakSimVDCRotator().

G4double QweakSimVDCRotator::kSliderSupport_FullLength_X

private

Definition at line 161 of file QweakSimVDCRotator.hh.

Referenced by ConstructSliderSupport(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kSliderSupport_FullLength_Y

private

Definition at line 162 of file QweakSimVDCRotator.hh.

Referenced by ConstructSliderSupport(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::kSliderSupport_FullLength_Z

private

Definition at line 163 of file QweakSimVDCRotator.hh.

Referenced by ConstructRotatorMasterContainer(), ConstructSliderSupport(), and QweakSimVDCRotator().

G4VPhysicalVolume* QweakSimVDCRotator::LeftRail_Physical

private

Definition at line 125 of file QweakSimVDCRotator.hh.

Referenced by PlacePVRails(), and QweakSimVDCRotator().

QweakSimMaterial* QweakSimVDCRotator::pMaterial

private

Definition at line 80 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), ConstructRails(), ConstructRings(), ConstructRotatorMasterContainer(), ConstructSliderSupport(), and QweakSimVDCRotator().

G4LogicalVolume* QweakSimVDCRotator::Rail_Logical

private

Definition at line 124 of file QweakSimVDCRotator.hh.

Referenced by ConstructRails(), PlacePVRails(), and QweakSimVDCRotator().

G4VPhysicalVolume* QweakSimVDCRotator::RightRail_Physical

private

Definition at line 126 of file QweakSimVDCRotator.hh.

Referenced by PlacePVRails(), and QweakSimVDCRotator().

G4LogicalVolume* QweakSimVDCRotator::Rod_LeftRight_Logical

private

Definition at line 146 of file QweakSimVDCRotator.hh.

Referenced by ConstructMount(), PlacePVMount(), and QweakSimVDCRotator().

std::vector< G4VPhysicalVolume* > QweakSimVDCRotator::Rod_LeftRight_Physical

private

Definition at line 148 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount(), and QweakSimVDCRotator().

G4RotationMatrix* QweakSimVDCRotator::Rotation_Rail

private

Definition at line 122 of file QweakSimVDCRotator.hh.

Referenced by PlacePVRails(), and QweakSimVDCRotator().

G4RotationMatrix* QweakSimVDCRotator::Rotation_Rod_LR

private

Definition at line 155 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount(), and QweakSimVDCRotator().

G4RotationMatrix* QweakSimVDCRotator::Rotation_SliderSupportLeft

private

Definition at line 172 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport(), and QweakSimVDCRotator().

G4RotationMatrix* QweakSimVDCRotator::Rotation_SliderSupportRight

private

Definition at line 173 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport(), and QweakSimVDCRotator().

G4VPhysicalVolume* QweakSimVDCRotator::RotatorMasterContainer_Physical

private

Definition at line 88 of file QweakSimVDCRotator.hh.

Referenced by ConstructRotatorMasterContainer(), PlacePVMount(), PlacePVRails(), PlacePVSliderSupport(), and SetRotationAngleInPhi().

G4LogicalVolume* QweakSimVDCRotator::SliderSupportLeft_Logical

private

Definition at line 175 of file QweakSimVDCRotator.hh.

Referenced by ConstructSliderSupport(), PlacePVSliderSupport(), and QweakSimVDCRotator().

std::vector<G4VPhysicalVolume*> QweakSimVDCRotator::SliderSupportLeft_Physical

private

Definition at line 176 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport(), and QweakSimVDCRotator().

G4LogicalVolume* QweakSimVDCRotator::SliderSupportRight_Logical

private

Definition at line 178 of file QweakSimVDCRotator.hh.

Referenced by ConstructSliderSupport(), PlacePVSliderSupport(), and QweakSimVDCRotator().

std::vector<G4VPhysicalVolume*> QweakSimVDCRotator::SliderSupportRight_Physical

private

Definition at line 179 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport(), and QweakSimVDCRotator().

std::vector< G4SubtractionSolid* > QweakSimVDCRotator::SliderSupportSubtraction_TempSolid

private

Definition at line 182 of file QweakSimVDCRotator.hh.

Referenced by ConstructSliderSupport(), and QweakSimVDCRotator().

G4VPhysicalVolume* QweakSimVDCRotator::theMotherVolume

private

Definition at line 86 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), ConstructRotatorMasterContainer(), QweakSimVDCRotator(), and SetMotherVolume().

G4ThreeVector QweakSimVDCRotator::Translation_LeftRail

private

Definition at line 120 of file QweakSimVDCRotator.hh.

Referenced by PlacePVRails().

G4ThreeVector QweakSimVDCRotator::Translation_LeftSliderSupport

private

Definition at line 169 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport().

G4ThreeVector QweakSimVDCRotator::Translation_RightRail

private

Definition at line 121 of file QweakSimVDCRotator.hh.

Referenced by PlacePVRails().

G4ThreeVector QweakSimVDCRotator::Translation_RightSliderSupport

private

Definition at line 170 of file QweakSimVDCRotator.hh.

Referenced by PlacePVSliderSupport().

G4ThreeVector QweakSimVDCRotator::Translation_RodLeftDownstream

private

Definition at line 151 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount().

G4ThreeVector QweakSimVDCRotator::Translation_RodLeftUpstream

private

Definition at line 150 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount().

G4ThreeVector QweakSimVDCRotator::Translation_RodRightDownstream

private

Definition at line 153 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount().

G4ThreeVector QweakSimVDCRotator::Translation_RodRightUpstream

private

Definition at line 152 of file QweakSimVDCRotator.hh.

Referenced by PlacePVMount().

G4double QweakSimVDCRotator::UpstreamRing_CenterXPosition

private

Definition at line 100 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::UpstreamRing_CenterYPosition

private

Definition at line 101 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4double QweakSimVDCRotator::UpstreamRing_CenterZPosition

private

Definition at line 102 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), and QweakSimVDCRotator().

G4LogicalVolume* QweakSimVDCRotator::UpstreamRing_Logical

private

Definition at line 97 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), GetUpstreamRing_LogicalVolume(), QweakSimVDCRotator(), and SetRingMaterial().

G4VPhysicalVolume* QweakSimVDCRotator::UpstreamRing_Physical

private

Definition at line 98 of file QweakSimVDCRotator.hh.

Referenced by ConstructRings(), GetUpstreamRing_PhysicalVolume(), and QweakSimVDCRotator().

---

The documentation for this class was generated from the following files:

• QweakSimVDCRotator.hh
• QweakSimVDCRotator.cc
