QweakSimBeamLine Class Reference

Definition of the BeamLine. More...

#include <QweakSimBeamLine.hh>

Collaboration diagram for QweakSimBeamLine:

Public Member Functions
	QweakSimBeamLine (QweakSimUserInformation *myUI)
	~QweakSimBeamLine ()
void	ConstructComponent (G4VPhysicalVolume *)
void	DestroyComponent ()
void	SetBeamLineCenterPositionInZ (G4double)
G4double	GetBeamLineCenterPositionInZ ()
void	SetBeamLineMaterial (G4String)
G4String	GetBeamLineMaterial ()

Private Attributes
QweakSimMaterial *	pMaterial
G4Material *	BeamPipe_Material
G4Material *	Shield_Material
G4LogicalVolume *	R1_Pipe_Logical
G4LogicalVolume *	R1_Flange_Logical
G4LogicalVolume *	DS_R1_Pipe_Logical
G4LogicalVolume *	DS_R1_Flange_Logical
G4LogicalVolume *	DS_R1_Bellow_Logical
G4LogicalVolume *	R2_Pipe_Logical
G4LogicalVolume *	R2_Flange_Logical
G4LogicalVolume *	DS_R2_Pipe_Logical
G4LogicalVolume *	R2_RotatorPipe_Logical
G4LogicalVolume *	R3_Pipe_Logical
G4LogicalVolume *	R3_Flange_Logical
G4LogicalVolume *	DS_R3_Pipe_Logical
G4LogicalVolume *	R3_US_Wall_Pipe_Logical
G4LogicalVolume *	Sub_LeadBox_in_Wall_Logical
G4LogicalVolume *	R3_Wall_Pipe_Logical
G4LogicalVolume *	Sub_LeadBox_Extent_Logical
G4LogicalVolume *	DS_18inch_Pipe1_Logical
G4LogicalVolume *	DS_18inch_Pipe2_Logical
G4LogicalVolume *	DS_24inch_Pipe_Logical
G4LogicalVolume *	DS_24inch_Pipe_Flange_Logical
G4double	beamline_ZPos
QweakSimBeamLineMessenger *	beamlineMessenger
QweakSimUserInformation *	myUserInfo

Detailed Description

Definition of the BeamLine.

Placeholder for a long explaination

Definition at line 60 of file QweakSimBeamLine.hh.

Constructor & Destructor Documentation

QweakSimBeamLine::QweakSimBeamLine

(

QweakSimUserInformation *

myUI

)

Definition at line 36 of file QweakSimBeamLine.cc.

References beamlineMessenger, BeamPipe_Material, DS_18inch_Pipe1_Logical, DS_18inch_Pipe2_Logical, DS_24inch_Pipe_Flange_Logical, DS_24inch_Pipe_Logical, DS_R1_Bellow_Logical, DS_R1_Flange_Logical, DS_R1_Pipe_Logical, DS_R2_Pipe_Logical, DS_R3_Pipe_Logical, QweakSimMaterial::GetInstance(), QweakSimMaterial::GetMaterial(), myUserInfo, pMaterial, QweakSimBeamLineMessenger::QweakSimBeamLineMessenger(), R1_Flange_Logical, R1_Pipe_Logical, R2_Flange_Logical, R2_Pipe_Logical, R2_RotatorPipe_Logical, R3_Flange_Logical, R3_Pipe_Logical, R3_US_Wall_Pipe_Logical, R3_Wall_Pipe_Logical, Shield_Material, Sub_LeadBox_Extent_Logical, and Sub_LeadBox_in_Wall_Logical.

{
    G4cout << G4endl << "###### Calling QweakSimBeamLine::QweakBeamLine() " << G4endl << G4endl;

    myUserInfo = myUI;

    //BeamLineContainer_Logical      = NULL;
    //BeamLineContainer_Physical     = NULL;

    R1_Pipe_Logical= NULL;
    R1_Flange_Logical= NULL;
    DS_R1_Pipe_Logical= NULL;
    DS_R1_Flange_Logical= NULL;
    DS_R1_Bellow_Logical= NULL;
    R2_Pipe_Logical= NULL;
    R2_Flange_Logical= NULL;
    DS_R2_Pipe_Logical= NULL;
    R2_RotatorPipe_Logical= NULL;
    R3_Pipe_Logical= NULL;
    R3_Flange_Logical= NULL;
    DS_R3_Pipe_Logical = NULL;
    R3_US_Wall_Pipe_Logical= NULL;
    Sub_LeadBox_in_Wall_Logical= NULL;
    R3_Wall_Pipe_Logical= NULL;
    Sub_LeadBox_Extent_Logical= NULL;
    DS_18inch_Pipe1_Logical= NULL;
    DS_18inch_Pipe2_Logical= NULL;
    DS_24inch_Pipe_Logical= NULL;
    DS_24inch_Pipe_Flange_Logical= NULL;

    pMaterial = QweakSimMaterial::GetInstance();

    //BeamLineContainer_Material      = pMaterial->GetMaterial("Vacuum");
    BeamPipe_Material               = pMaterial->GetMaterial("Aluminum");
    Shield_Material                 = pMaterial->GetMaterial("Lead");

    beamlineMessenger = new QweakSimBeamLineMessenger(this);
}

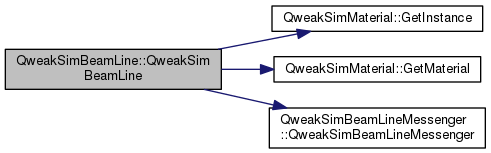

Here is the call graph for this function:

QweakSimBeamLine::~QweakSimBeamLine

(

)

Definition at line 76 of file QweakSimBeamLine.cc.

References beamlineMessenger.

{
    delete beamlineMessenger;
}

Member Function Documentation

void QweakSimBeamLine::ConstructComponent

(

G4VPhysicalVolume *

MotherVolume

)

Definition at line 83 of file QweakSimBeamLine.cc.

References BeamPipe_Material, DS_18inch_Pipe1_Logical, DS_18inch_Pipe2_Logical, DS_24inch_Pipe_Flange_Logical, DS_24inch_Pipe_Logical, DS_R1_Bellow_Logical, DS_R1_Flange_Logical, DS_R1_Pipe_Logical, DS_R2_Pipe_Logical, DS_R3_Pipe_Logical, pSurfChk, R1_Flange_Logical, R1_Pipe_Logical, R2_Flange_Logical, R2_Pipe_Logical, R2_RotatorPipe_Logical, R3_Flange_Logical, R3_Pipe_Logical, R3_US_Wall_Pipe_Logical, R3_Wall_Pipe_Logical, Shield_Material, Sub_LeadBox_Extent_Logical, and Sub_LeadBox_in_Wall_Logical.

{
    G4cout << G4endl << "###### Calling QweakSimBeamLine::ConstructComponent() " << G4endl << G4endl;


    // define BeamLine position
    G4ThreeVector positionBeamPipe = G4ThreeVector(0,0,0);

//--------------------------------------
    // define beampipe solid volume
    G4cout << G4endl << "###### QweakSimBeamLine: Define Beam Pipe" << G4endl << G4endl;

    // define R1 - GEM Region pipe
    G4double collimator_center = -422.0195*cm;
    G4Tubs* R1_Pipe_Solid    = new G4Tubs("R1_Pipe_Solid",
            2.0447*cm,
      2.413*cm,
            24.9174*cm,
            0,
            360*degree);

    R1_Pipe_Logical  = new G4LogicalVolume(R1_Pipe_Solid,
            BeamPipe_Material,
            "R1_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center-115.4186*cm),
            "R1_Pipe",
            R1_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R1 - GEM Region flange
    G4Tubs* R1_Flange_Solid    = new G4Tubs("R1_Flange_Solid",
            2.413*cm,
      4.445*cm,
            0.8*cm,
            0,
            360*degree);

    R1_Flange_Logical  = new G4LogicalVolume(R1_Flange_Solid,
            BeamPipe_Material,
            "R1_Flange_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center-139.636*cm),
            "R1_Flange",
            R1_Flange_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define Downstream R1 - GEM Region pipe
    G4Tubs* DS_R1_Pipe_Solid    = new G4Tubs("DS_R1_Pipe_Solid",
            3.8862*cm,
      4.445*cm,
            63.45085*cm,
            0,
            360*degree);

    DS_R1_Pipe_Logical  = new G4LogicalVolume(DS_R1_Pipe_Solid,
            BeamPipe_Material,
            "DS_R1_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center-27.15035*cm),
            "DS_R1_Pipe",
            DS_R1_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define Downstream R1 - GEM Region flange
    G4Tubs* DS_R1_Flange_Solid    = new G4Tubs("DS_R1_Flange_Solid",
            2.413*cm,
      4.445*cm,
            0.5588*cm,
            0,
            360*degree);

    DS_R1_Flange_Logical  = new G4LogicalVolume(DS_R1_Flange_Solid,
            BeamPipe_Material,
            "DS_R1_Flange_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center-90.0424*cm),
            "DS_R1_Flange",
            DS_R1_Flange_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define Downstream R1 - GEM Region bellow
    G4Tubs* DS_R1_Bellow_Solid    = new G4Tubs("DS_R1_Bellow_Solid",
            4.445*cm,
      13.5*cm,
            7.5*cm,
            0,
            360*degree);

    DS_R1_Bellow_Logical  = new G4LogicalVolume(DS_R1_Bellow_Solid,
            Shield_Material,
            "DS_R1_Bellow_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center+28.8*cm),
            "DS_R1_Bellow",
            DS_R1_Bellow_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R2 - inside primary collimator pipe
    G4Tubs* R2_Pipe_Solid    = new G4Tubs("R2_Pipe_Solid",
            10.0711*cm,
      10.9479*cm,
            7.5*cm,
            0,
            360*degree);

    R2_Pipe_Logical  = new G4LogicalVolume(R2_Pipe_Solid,
            BeamPipe_Material,
            "R2_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center+43.8005*cm),
            "R2_Pipe",
            R2_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R2 - inside primary collimator flange
    G4Tubs* R2_Flange_Solid    = new G4Tubs("R2_Flange_Solid",
            4.445*cm,
      10.9479*cm,
            0.4384*cm,
            0,
            360*degree);

    R2_Flange_Logical  = new G4LogicalVolume(R2_Flange_Solid,
            BeamPipe_Material,
            "R2_Flange_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center+43.8005*cm-7.0616*cm),
            "R2_Flange",
            R2_Flange_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define downstream R2 pipe
    G4Tubs* DS_R2_Pipe_Solid    = new G4Tubs("DS_R2_Pipe_Solid",
            10.0711*cm,
      10.9479*cm,
            49.43*cm,
            0,
            360*degree);

    DS_R2_Pipe_Logical  = new G4LogicalVolume(DS_R2_Pipe_Solid,
            BeamPipe_Material,
            "DS_R2_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center+100.7305*cm),
            "DS_R2_Pipe",
            DS_R2_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R2 - rotator pipe
    G4Tubs* R2_RotatorPipe_Solid    = new G4Tubs("R2_RotatorPipe_Solid",
            15.1613*cm,
      16.1925*cm,
            42.4307*cm,
            0,
            360*degree);

    R2_RotatorPipe_Logical  = new G4LogicalVolume(R2_RotatorPipe_Solid,
            BeamPipe_Material,
            "R2_RotatorPipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center+107.7298*cm),
            "R2_RotatorPipe",
            R2_RotatorPipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);


    // define R3 - inside collimator pipe
    G4Tubs* R3_Pipe_Solid    = new G4Tubs("R3_Pipe_Solid",
            10.0711*cm,
      10.9479*cm,
            5.615*cm,
            0,
            360*degree);

    R3_Pipe_Logical  = new G4LogicalVolume(R3_Pipe_Solid,
            BeamPipe_Material,
            "R3_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,collimator_center+155.7755*cm),
            "R3_Pipe",
            R3_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R3 - after collimator pipe
    G4Tubs* DS_R3_Pipe_Solid    = new G4Tubs("DS_R3_Pipe_Solid",
            12.7381*cm,
      13.6525*cm,
            256.8575*cm,
            0,
            360*degree);

    DS_R3_Pipe_Logical  = new G4LogicalVolume(DS_R3_Pipe_Solid,
            BeamPipe_Material,
            "DS_R3_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,-3.9065*cm),
            "DS_R3_Pipe",
            DS_R3_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R3 - flange
    G4Tubs* R3_Flange_Solid    = new G4Tubs("R3_Flange_Solid",
            13.6525*cm,
      22.86*cm,
            1.4224*cm,
            0,
            360*degree);

    R3_Flange_Logical  = new G4LogicalVolume(R3_Flange_Solid,
            BeamPipe_Material,
            "R3_Flange_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,251.5286*cm),
            "R3_Flange",
            R3_Flange_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R3 - before shield wall
    G4Tubs* R3_US_Wall_Pipe_Solid    = new G4Tubs("R3_US_Wall_Pipe_Solid",
            21.9075*cm,
      22.86*cm,
            23.5245*cm,
            0,
            360*degree);

    R3_US_Wall_Pipe_Logical  = new G4LogicalVolume(R3_US_Wall_Pipe_Solid,
            BeamPipe_Material,
            "R3_US_Wall_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,276.4755*cm),
            "R3_US_Wall_Pipe",
            R3_US_Wall_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define 2" lead box in the shield wall
    G4Box* LeadBox_in_Wall_Solid    = new G4Box("LeadBox_in_Wall_Solid",
            27.94*cm,
      27.94*cm,
            40*cm);

    G4Tubs* R3_Wall_Pipe_Vacuum_Solid    = new G4Tubs("R3_Wall_Pipe_Vacuum_Solid",
            0.0*cm,
      (22.86+0.1)*cm,
            (40.0+0.1)*cm,
            0,
            360*degree);

    G4SubtractionSolid* Sub_LeadBox_in_Wall_Solid = new G4SubtractionSolid("LeadBox_in_Wall_Solid - R3_Wall_Pipe_Vacuum_Solid",
                   LeadBox_in_Wall_Solid,
                   R3_Wall_Pipe_Vacuum_Solid);

    Sub_LeadBox_in_Wall_Logical  = new G4LogicalVolume(Sub_LeadBox_in_Wall_Solid,
            Shield_Material,
            "Sub_LeadBox_in_Wall_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,340.0*cm),
            "Sub_LeadBox_in_Wall",
            Sub_LeadBox_in_Wall_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define R3 - pipe in shield wall
    G4Tubs* R3_Wall_Pipe_Solid    = new G4Tubs("R3_Wall_Pipe_Solid",
            21.9075*cm,
      22.86*cm,
            40.0*cm,
            0,
            360*degree);

    R3_Wall_Pipe_Logical  = new G4LogicalVolume(R3_Wall_Pipe_Solid,
            BeamPipe_Material,
            "R3_Wall_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,340.0*cm),
            "R3_Wall_Pipe",
            R3_Wall_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define 2" lead box, extends only to Z=622.625
    G4Box* LeadBox_Extent_Solid    = new G4Box("LeadBox_Extent_Solid",
            27.94*cm,
      27.94*cm,
            121.3125*cm);

    G4Tubs* DS_18inch_Pipe1_Vacuum_Solid    = new G4Tubs("DS_18inch_Pipe1_Vacuum_Solid",
            0.0*cm,
      (22.86+0.1)*cm,
            (121.3125+0.1)*cm,
            0,
            360*degree);

    G4SubtractionSolid* Sub_LeadBox_Extent_Solid = new G4SubtractionSolid("LeadBox_Extent_Solid - DS_18inch_Pipe1_Vacuum_Solid",
                   LeadBox_Extent_Solid,
                   DS_18inch_Pipe1_Vacuum_Solid);

    Sub_LeadBox_Extent_Logical  = new G4LogicalVolume(Sub_LeadBox_Extent_Solid,
            Shield_Material,
            "Sub_LeadBox_Extent_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,501.3125*cm),
            "Sub_LeadBox_Extent",
            Sub_LeadBox_Extent_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);


    // define Downstream 18" pipe within lead box
    G4Tubs* DS_18inch_Pipe1_Solid    = new G4Tubs("DS_18inch_Pipe1_Solid",
            21.9075*cm,
      22.86*cm,
            121.3125*cm,
            0,
            360*degree);

    DS_18inch_Pipe1_Logical  = new G4LogicalVolume(DS_18inch_Pipe1_Solid,
            BeamPipe_Material,
            "DS_18inch_Pipe1_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,501.3125*cm),
            "DS_18inch_Pipe1",
            DS_18inch_Pipe1_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define Downstream 18" pipe after lead box
    G4Tubs* DS_18inch_Pipe2_Solid    = new G4Tubs("DS_18inch_Pipe2_Solid",
            21.9075*cm,
      22.86*cm,
            7.568*cm,
            0,
            360*degree);

    DS_18inch_Pipe2_Logical  = new G4LogicalVolume(DS_18inch_Pipe2_Solid,
            BeamPipe_Material,
            "DS_18inch_Pipe2_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,630.193*cm),
            "DS_18inch_Pipe2",
            DS_18inch_Pipe2_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define Downstream 24" pipe
    G4Tubs* DS_24inch_Pipe_Solid    = new G4Tubs("DS_24inch_Pipe_Solid",
            29.5275*cm,
      30.48*cm,
            31.1195*cm,
            0,
            360*degree);

    DS_24inch_Pipe_Logical  = new G4LogicalVolume(DS_24inch_Pipe_Solid,
            BeamPipe_Material,
            "DS_24inch_Pipe_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,668.8805*cm),
            "DS_24inch_Pipe",
            DS_24inch_Pipe_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

    // define Downstream 24" pipe flange
    G4Tubs* DS_24inch_Pipe_Flange_Solid    = new G4Tubs("DS_24inch_Pipe_Flange_Solid",
            22.86*cm,
            29.5275*cm,
      1.4224*cm,
            0,
            360*degree);

    DS_24inch_Pipe_Flange_Logical  = new G4LogicalVolume(DS_24inch_Pipe_Flange_Solid,
            BeamPipe_Material,
            "DS_24inch_Pipe_Flange_Log",
            0,0,0);

    new G4PVPlacement(0,
            G4ThreeVector(0,0,(637.761+1.4224)*cm),
            "DS_24inch_Pipe",
            DS_24inch_Pipe_Flange_Logical,
            MotherVolume,
            false,
            0,
            pSurfChk);

//--------------------------------------

    G4cout << G4endl << "###### QweakSimBeamLine: Setting Attributes " << G4endl << G4endl;

    G4Colour  red   (1.,0.,0.);
    G4Colour  orange    ( 255/255., 127/255.,   0/255.);
    G4Colour  blue      (   0/255.,   0/255., 255/255.);
    G4Colour  magenta   ( 255/255.,   0/255., 255/255.);
    G4Colour  grey      ( 127/255., 127/255., 127/255.);
    G4Colour  lightgrey (  220/255., 220/255., 220/255.);
    G4Colour  lightblue   ( 139/255., 208/255., 255/255.);
    G4Colour  lightorange ( 255/255., 189/255., 165/255.);
    G4Colour  khaki3    ( 205/255., 198/255., 115/255.);
    G4Colour  brown     (178/255., 102/255., 26/255.);



    G4VisAttributes* Shield_VisAtt = new G4VisAttributes(brown);
    Shield_VisAtt -> SetVisibility(true);
    //BeamPipe_VisAtt -> SetForceWireframe(true);
    DS_R1_Bellow_Logical -> SetVisAttributes(Shield_VisAtt);
    Sub_LeadBox_in_Wall_Logical->SetVisAttributes(Shield_VisAtt);
    Sub_LeadBox_Extent_Logical->SetVisAttributes(Shield_VisAtt);
    G4cout << G4endl << "###### Leaving QweakSimBeamLine::ConstructComponent() " << G4endl << G4endl;

    G4VisAttributes* Pipe_VisAtt = new G4VisAttributes(lightgrey);
    Pipe_VisAtt -> SetVisibility(true);
    R1_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R1_Flange_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_R1_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_R1_Flange_Logical->SetVisAttributes(Pipe_VisAtt);
    R2_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R2_Flange_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_R2_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R2_RotatorPipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R3_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R3_Flange_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_R3_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R3_US_Wall_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    R3_Wall_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_18inch_Pipe1_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_18inch_Pipe2_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_24inch_Pipe_Logical->SetVisAttributes(Pipe_VisAtt);
    DS_24inch_Pipe_Flange_Logical->SetVisAttributes(Pipe_VisAtt);

} // end of  QweakSimBeamLine::ConstructComponent()

void QweakSimBeamLine::DestroyComponent

(

)

Definition at line 642 of file QweakSimBeamLine.cc.

{
}

G4double QweakSimBeamLine::GetBeamLineCenterPositionInZ

(

)

Definition at line 656 of file QweakSimBeamLine.cc.

References beamline_ZPos.

{
    G4cout << G4endl << "###### Calling QweakSimBeamLine::GetBeamLineCenterPositionInZ() " << G4endl << G4endl;
    return beamline_ZPos;
}

G4String QweakSimBeamLine::GetBeamLineMaterial

(

)

void QweakSimBeamLine::SetBeamLineCenterPositionInZ

(

G4double

zPos

)

Definition at line 648 of file QweakSimBeamLine.cc.

References beamline_ZPos.

Referenced by QweakSimBeamLineMessenger::SetNewValue().

{
    G4cout << G4endl << "###### Calling QweakSimBeamLine::SetBeamLineCenterPositionInZ() " << G4endl << G4endl;

    beamline_ZPos = zPos;
    //BeamLineContainer_Physical->SetTranslation(G4ThreeVector(0.,0., zPos));
}

Here is the caller graph for this function:

void QweakSimBeamLine::SetBeamLineMaterial

(

G4String

materialName

)

Definition at line 605 of file QweakSimBeamLine.cc.

References DS_18inch_Pipe1_Logical, DS_18inch_Pipe2_Logical, DS_24inch_Pipe_Flange_Logical, DS_24inch_Pipe_Logical, DS_R1_Flange_Logical, DS_R1_Pipe_Logical, DS_R2_Pipe_Logical, DS_R3_Pipe_Logical, R1_Flange_Logical, R1_Pipe_Logical, R2_Flange_Logical, R2_Pipe_Logical, R2_RotatorPipe_Logical, R3_Flange_Logical, R3_Pipe_Logical, R3_US_Wall_Pipe_Logical, and R3_Wall_Pipe_Logical.

Referenced by QweakSimBeamLineMessenger::SetNewValue().

{
    // search the material by its name
    G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
    if (pttoMaterial)
    {
        G4cout << "==== Changing Beam Pipe Material: Looking up Material  " << G4endl;
        R1_Pipe_Logical->SetMaterial(pttoMaterial);
  R1_Flange_Logical->SetMaterial(pttoMaterial);
  DS_R1_Pipe_Logical->SetMaterial(pttoMaterial);
  DS_R1_Flange_Logical->SetMaterial(pttoMaterial);
  //DS_R1_Bellow_Logical->SetMaterial(pttoMaterial);
  R2_Pipe_Logical->SetMaterial(pttoMaterial);
  R2_Flange_Logical->SetMaterial(pttoMaterial);
  DS_R2_Pipe_Logical->SetMaterial(pttoMaterial);
  R2_RotatorPipe_Logical->SetMaterial(pttoMaterial);
  R3_Pipe_Logical->SetMaterial(pttoMaterial);
  R3_Flange_Logical->SetMaterial(pttoMaterial);
  DS_R3_Pipe_Logical->SetMaterial(pttoMaterial);
  R3_US_Wall_Pipe_Logical->SetMaterial(pttoMaterial);
  //Sub_LeadBox_in_Wall_Logical->SetMaterial(pttoMaterial);
  R3_Wall_Pipe_Logical->SetMaterial(pttoMaterial);
  //Sub_LeadBox_Extent_Logical->SetMaterial(pttoMaterial);
  DS_18inch_Pipe1_Logical->SetMaterial(pttoMaterial);
  DS_18inch_Pipe2_Logical->SetMaterial(pttoMaterial);
  DS_24inch_Pipe_Logical->SetMaterial(pttoMaterial);
  DS_24inch_Pipe_Flange_Logical->SetMaterial(pttoMaterial);
        G4cout << "==== Changing Beam Pipe Material:  Now the BeamLine is made of " << materialName << G4endl;
    }
    else {
        G4cerr << "==== ERROR: Changing Beam Pipe Material failed" << G4endl;
    }

}

Here is the caller graph for this function:

Field Documentation

G4double QweakSimBeamLine::beamline_ZPos

private

Definition at line 110 of file QweakSimBeamLine.hh.

Referenced by GetBeamLineCenterPositionInZ(), and SetBeamLineCenterPositionInZ().

QweakSimBeamLineMessenger* QweakSimBeamLine::beamlineMessenger

private

Definition at line 112 of file QweakSimBeamLine.hh.

Referenced by QweakSimBeamLine(), and ~QweakSimBeamLine().

G4Material* QweakSimBeamLine::BeamPipe_Material

private

Definition at line 86 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), and QweakSimBeamLine().

G4LogicalVolume* QweakSimBeamLine::DS_18inch_Pipe1_Logical

private

Definition at line 105 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_18inch_Pipe2_Logical

private

Definition at line 106 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_24inch_Pipe_Flange_Logical

private

Definition at line 108 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_24inch_Pipe_Logical

private

Definition at line 107 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_R1_Bellow_Logical

private

Definition at line 93 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), and QweakSimBeamLine().

G4LogicalVolume* QweakSimBeamLine::DS_R1_Flange_Logical

private

Definition at line 92 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_R1_Pipe_Logical

private

Definition at line 91 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_R2_Pipe_Logical

private

Definition at line 96 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::DS_R3_Pipe_Logical

private

Definition at line 100 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

QweakSimUserInformation* QweakSimBeamLine::myUserInfo

private

Definition at line 113 of file QweakSimBeamLine.hh.

Referenced by QweakSimBeamLine().

QweakSimMaterial* QweakSimBeamLine::pMaterial

private

Definition at line 80 of file QweakSimBeamLine.hh.

Referenced by QweakSimBeamLine().

G4LogicalVolume* QweakSimBeamLine::R1_Flange_Logical

private

Definition at line 90 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R1_Pipe_Logical

private

Definition at line 89 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R2_Flange_Logical

private

Definition at line 95 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R2_Pipe_Logical

private

Definition at line 94 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R2_RotatorPipe_Logical

private

Definition at line 97 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R3_Flange_Logical

private

Definition at line 99 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R3_Pipe_Logical

private

Definition at line 98 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R3_US_Wall_Pipe_Logical

private

Definition at line 101 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4LogicalVolume* QweakSimBeamLine::R3_Wall_Pipe_Logical

private

Definition at line 103 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), QweakSimBeamLine(), and SetBeamLineMaterial().

G4Material* QweakSimBeamLine::Shield_Material

private

Definition at line 87 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), and QweakSimBeamLine().

G4LogicalVolume* QweakSimBeamLine::Sub_LeadBox_Extent_Logical

private

Definition at line 104 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), and QweakSimBeamLine().

G4LogicalVolume* QweakSimBeamLine::Sub_LeadBox_in_Wall_Logical

private

Definition at line 102 of file QweakSimBeamLine.hh.

Referenced by ConstructComponent(), and QweakSimBeamLine().

---

The documentation for this class was generated from the following files:

• QweakSimBeamLine.hh
• QweakSimBeamLine.cc
