QweakSimCollimator Class Reference

Definition of the Collimators. More...

#include <QweakSimCollimator.hh>

Collaboration diagram for QweakSimCollimator:

Public Member Functions
	QweakSimCollimator ()
	Constructor. More...
	~QweakSimCollimator ()
	Destructor. More...
void	ConstructCollimator (G4VPhysicalVolume *)
void	DestroyComponent ()
void	SetCollimatorHousing_CenterPositionInZ (G4double zPos)
G4double	GetCollimatorHousing_CenterPositionInZ ()
void	SetCollimatorHousingMaterial (G4String)
void	SetCollimatorHousing_FullLengthInX (G4double dim)
void	SetCollimatorHousing_FullLengthInY (G4double dim)
void	SetCollimatorHousing_FullLengthInZ (G4double dim)
G4double	GetCollimatorHousing_FullLengthInX ()
G4double	GetCollimatorHousing_FullLengthInY ()
G4double	GetCollimatorHousing_FullLengthInZ ()
void	SetOctantCutOutFrontFullLength_X1 (G4double dim)
void	SetOctantCutOutFrontFullLength_X2 (G4double dim)
void	SetOctantCutOutFrontFullLength_Y (G4double dim)
void	SetOctantCutOutBackFullLength_X1 (G4double dim)
void	SetOctantCutOutBackFullLength_X2 (G4double dim)
void	SetOctantCutOutBackFullLength_Y (G4double dim)
void	SetOctantCutOutFrontInnerDiameter (G4double fid)
void	SetOctantCutOutFrontOuterDiameter (G4double fod)
void	SetOctantCutOutBackInnerDiameter (G4double bid)
void	SetOctantCutOutBackOuterDiameter (G4double bod)
void	SetOctantCutOutStartingPhiAngle (G4double spa)
void	SetOctantCutOutDeltaPhiAngle (G4double dpa)
void	SetOctantCutOutRadialOffset (G4double dpa)
void	SetBeamlineCutoutDiameter (G4double dia)
void	SetCollimatorNumber (G4int n)
G4int	GetCollimatorNumber ()
G4LogicalVolume *	getCollimatorHousingLogicalVolume ()
G4VPhysicalVolume *	getCollimatorHousingPhysicalVolume ()

Private Attributes
G4int	CollNum
QweakSimMaterial *	pMaterial
G4LogicalVolume *	CollimatorHousing_Logical
G4VPhysicalVolume *	CollimatorHousing_Physical
G4double	CollimatorHousing_FullLength_X
G4double	CollimatorHousing_FullLength_Y
G4double	CollimatorHousing_FullLength_Z
G4double	CollimatorHousing_CenterZPosition
G4double	OctantCutOutFrontFullLength_X1
G4double	OctantCutOutFrontFullLength_X2
G4double	OctantCutOutFrontFullLength_Y
G4double	OctantCutOutBackFullLength_X1
G4double	OctantCutOutBackFullLength_X2
G4double	OctantCutOutBackFullLength_Y
G4double	OctantCutOutFrontInnerDiameter
G4double	OctantCutOutFrontOuterDiameter
G4double	OctantCutOutBackInnerDiameter
G4double	OctantCutOutBackOuterDiameter
G4double	OctantCutOutStartingPhiAngle
G4double	OctantCutOutDeltaPhiAngle
G4double	OctantCutOutRadialOffset
G4double	BeamlineCutoutDiameter

Detailed Description

Definition of the Collimators.

Scans the input file for /Cerenkov/xyz commands.

Placeholder for a long explaination

Placeholder for a long explanation

Definition at line 51 of file QweakSimCollimator.hh.

Constructor & Destructor Documentation

QweakSimCollimator::QweakSimCollimator

(

)

Constructor.

Definition at line 29 of file QweakSimCollimator.cc.

References BeamlineCutoutDiameter, CollimatorHousing_CenterZPosition, CollimatorHousing_FullLength_X, CollimatorHousing_FullLength_Y, CollimatorHousing_FullLength_Z, CollimatorHousing_Logical, CollimatorHousing_Physical, QweakSimMaterial::GetInstance(), OctantCutOutBackFullLength_X1, OctantCutOutBackFullLength_X2, OctantCutOutBackFullLength_Y, OctantCutOutBackInnerDiameter, OctantCutOutBackOuterDiameter, OctantCutOutDeltaPhiAngle, OctantCutOutFrontFullLength_X1, OctantCutOutFrontFullLength_X2, OctantCutOutFrontFullLength_Y, OctantCutOutFrontInnerDiameter, OctantCutOutFrontOuterDiameter, OctantCutOutRadialOffset, OctantCutOutStartingPhiAngle, and pMaterial.

{
  CollimatorHousing_Logical  = NULL;
  CollimatorHousing_Physical = NULL;


  CollimatorHousing_CenterZPosition = -575.375*cm;//default US collimator location
  CollimatorHousing_FullLength_X    = 120.0*cm;//should be update to 86.36*cm
  CollimatorHousing_FullLength_Y    = 120.0*cm;//86.36*cm
  CollimatorHousing_FullLength_Z    = 15.24*cm;

  BeamlineCutoutDiameter            = 8.3*cm;//8.0*cm

  OctantCutOutFrontFullLength_Y     = 5.04*cm;//3.28*cm
  OctantCutOutFrontFullLength_X1    = 6.38*cm;//7.66*cm
  OctantCutOutFrontFullLength_X2    = 6.38*cm;//7.66*cm
  OctantCutOutBackFullLength_Y      = 5.83*cm;//6.25*cm
  OctantCutOutBackFullLength_X1     = 7.30*cm;//7.66*cm
  OctantCutOutBackFullLength_X2     = 7.30*cm;//7.66*cm
  OctantCutOutFrontInnerDiameter    = 10.42*cm;//10.0*cm
  OctantCutOutFrontOuterDiameter    = 21.38*cm;//26.14*cm
  OctantCutOutBackInnerDiameter     = 14.06*cm;//12.40*cm
  OctantCutOutBackOuterDiameter     = 25.26*cm;//26.14*cm
  OctantCutOutStartingPhiAngle      = (-16.61 + 90.0)*degree;//(-16.344+90)*degree
  OctantCutOutDeltaPhiAngle         = 2.0*16.61*degree;//2.0*16.344*degree
  OctantCutOutRadialOffset          = 0.0*cm;

  // get access to material definition
  pMaterial = QweakSimMaterial::GetInstance();
}

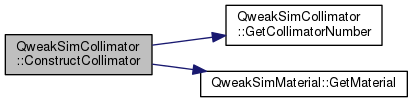

Here is the call graph for this function:

QweakSimCollimator::~QweakSimCollimator

(

)

Destructor.

Definition at line 61 of file QweakSimCollimator.cc.

{ }

Member Function Documentation

void QweakSimCollimator::ConstructCollimator

(

G4VPhysicalVolume *

MotherVolume

)

Creates a Collimator with 8 cutouts

Parameters

MotherVolume

The physical volume in which the collimator will be placed

Definition at line 69 of file QweakSimCollimator.cc.

References BeamlineCutoutDiameter, CollimatorHousing_CenterZPosition, CollimatorHousing_FullLength_X, CollimatorHousing_FullLength_Y, CollimatorHousing_FullLength_Z, CollimatorHousing_Logical, CollimatorHousing_Physical, GetCollimatorNumber(), QweakSimMaterial::GetMaterial(), OctantCutOutBackFullLength_X1, OctantCutOutBackFullLength_X2, OctantCutOutBackFullLength_Y, OctantCutOutBackInnerDiameter, OctantCutOutBackOuterDiameter, OctantCutOutDeltaPhiAngle, OctantCutOutFrontFullLength_X1, OctantCutOutFrontFullLength_X2, OctantCutOutFrontFullLength_Y, OctantCutOutFrontInnerDiameter, OctantCutOutFrontOuterDiameter, OctantCutOutRadialOffset, OctantCutOutStartingPhiAngle, pMaterial, and pSurfChk.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{

  //---------------------------------------------------------------------------------------------
  //! Creates a Collimator with 8 cutouts
  /**

   \param MotherVolume The physical volume in which the collimator will be placed

   */
  //---------------------------------------------------------------------------------------------

  G4double PI                                = 3.14159265359;     //probably defined
                                                                    //somewhere else, but
                                                                    //what the heck

  // assign material
  G4Material* CollimatorHousing_Material = pMaterial->GetMaterial("PBA");


  std::vector< G4SubtractionSolid* >  Solids;
  Solids.clear();
  Solids.resize(17); //1 for beamline 2*8 for acceptance cutouts
  G4ThreeVector positionCollimatorHousing;


  //**********************************************************************************
  //Construct collimator main volume
  G4Box* CollimatorHousing_Solid    = new G4Box("CollimatorHousing_Sol",
            0.5 * CollimatorHousing_FullLength_X - 0.05*cm,
            0.5 * CollimatorHousing_FullLength_Y - 0.05*cm,
            0.5 * CollimatorHousing_FullLength_Z - 0.05*cm);
  //**********************************************************************************




  //**********************************************************************************
  //Construct beam line cutout
  G4Tubs* BeamlimeHole = new G4Tubs("Beamline_cut",0.0*cm,
            BeamlineCutoutDiameter/2.0,
            0.5*CollimatorHousing_FullLength_Z,
            0.0*degree,360.0*degree);
  //**********************************************************************************



  //**********************************************************************************
  //Construct the pie shape cutout for collimator acceptance
  G4double zPlanes[2] = {-1.0*CollimatorHousing_FullLength_Z/2.0,
       CollimatorHousing_FullLength_Z/2.0};
  G4double rInner[2]  = {OctantCutOutFrontInnerDiameter/2.0,
       OctantCutOutBackInnerDiameter/2.0};
  G4double rOuter[2]  = {OctantCutOutFrontOuterDiameter/2.0,
       OctantCutOutBackOuterDiameter/2.0};
  G4Polyhedra *Octant1Acceptance_p1 = new G4Polyhedra("Oct1Accept_p1",
                  OctantCutOutStartingPhiAngle,
                  OctantCutOutDeltaPhiAngle,
                  1,2,zPlanes,rInner,rOuter);
  //**********************************************************************************





  //**********************************************************************************
  //Construct weired shape cutout on top of pie, for collimator acceptance

 // G4double theta  = std::atan((OctantCutOutBackFullLength_Y-
//             OctantCutOutFrontFullLength_Y)/
//            CollimatorHousing_FullLength_Z/2.0)*180/PI*degree;

  G4double theta  = std::atan((OctantCutOutBackFullLength_Y-OctantCutOutFrontFullLength_Y                            +OctantCutOutBackOuterDiameter-OctantCutOutFrontOuterDiameter)/
            CollimatorHousing_FullLength_Z/2.0)*180/PI*degree;
  //Theta here should be defined as the polar angle of the line joining the centres of the faces at +/-Dz of the trapezoid - corrected by Jie Pan 2009/06/17

  G4double phi    = 90.0*degree;
  G4double alpha1 = 0.0*degree;
  G4double alpha2 = 0.0*degree;

  G4double radLoc = (OctantCutOutRadialOffset - 0.01*cm +
         (OctantCutOutFrontOuterDiameter+
          OctantCutOutFrontFullLength_Y +
          std::tan(theta)*CollimatorHousing_FullLength_Z)/2.0);

  //   Keep this to cuddle up to on rainy days...
  //
  //   G4Trap *Octant1Acceptance_p2 = new G4Trap("Oct1Accept_p2",
  //              OctantCutOutFrontFullLength_X,
  //              CollimatorHousing_FullLength_Z+0.2*mm,
  //              OctantCutOutBackFullLength_Y,
  //              OctantCutOutFrontFullLength_Y); //must rotate around z by 90 degrees

  G4Trap *Octant1Acceptance_p2 = new G4Trap("Oct1Accept_p2",
              CollimatorHousing_FullLength_Z/2.0,
              theta,phi,
              OctantCutOutFrontFullLength_Y/2.0,
              OctantCutOutFrontFullLength_X1/2.0,
              OctantCutOutFrontFullLength_X2/2.0,
              alpha1,
              OctantCutOutBackFullLength_Y/2.0,
              OctantCutOutBackFullLength_X1/2.0,
              OctantCutOutBackFullLength_X2/2.0,
              alpha2);
  //**********************************************************************************




  //**********************************************************************************
  //**********************************************************************************
  //Place cutouts w.r.t. main collimator volume and subtract

  //**********************************************************************************
  //Do Beamline first
  Solids[0] =  new G4SubtractionSolid("Beamline_Hole",
              CollimatorHousing_Solid,
              BeamlimeHole);
  //**********************************************************************************


  //**********************************************************************************
  //Cutouts
  char              Name[50];
  int               cnt = 0;
  G4ThreeVector     Translation;
  G4RotationMatrix *Rotation[16];

  printf("Octant   Rotation1   Solid1   Rotation2   Solid2\n\n");

  for(int oct = 0; oct < 8; oct++){
    G4double zRot = (oct*45.0)*degree;

    Translation.setX(std::sin(zRot)*OctantCutOutRadialOffset);
    Translation.setY(std::cos(zRot)*OctantCutOutRadialOffset);
    Translation.setZ(0.0*cm-0.01*cm);
    Rotation[2*oct] = new G4RotationMatrix();
    Rotation[2*oct]->rotateZ(zRot);

    sprintf(Name,"Coll_%d_Oct_%d_1",GetCollimatorNumber(),oct+1);
    Solids[2*oct+1] =  new G4SubtractionSolid(Name,Solids[2*oct],Octant1Acceptance_p1,
                Rotation[2*oct],Translation);


    Translation.setX(std::sin(zRot)*radLoc);
    Translation.setY(std::cos(zRot)*radLoc);
    Translation.setZ(0.0*cm+0.01*cm);
    Rotation[2*oct+1] = new G4RotationMatrix();
    Rotation[2*oct+1]->rotateZ(zRot);

    sprintf(Name,"Coll_%d_Oct_%d_2",GetCollimatorNumber(),oct+1);
    Solids[2*oct+2] =  new G4SubtractionSolid(Name,Solids[2*oct+1],Octant1Acceptance_p2,
                Rotation[2*oct+1],Translation);
//     printf("Octant    Rotation1    Solid1     Rotation2      Solid2\n\n");
    printf("     %d          %02d      %02d          %02d        %02d\n",oct,2*oct,2*oct+1,2*oct+1,2*oct+2);
    cnt++;
  }
  //End cutouts
  //**********************************************************************************



  //**********************************************************************************
  // Define collimator logical and physical volumes

  CollimatorHousing_Logical  = new G4LogicalVolume(Solids[2*cnt],
               CollimatorHousing_Material,
               "CollimatorHousing_Log",
               0,0,0);

  positionCollimatorHousing = G4ThreeVector(0,0,CollimatorHousing_CenterZPosition);
  CollimatorHousing_Physical   = new G4PVPlacement(0,
               positionCollimatorHousing,
               "CollimatorHousing",
               CollimatorHousing_Logical,
               MotherVolume,
               false,
               0,
                     pSurfChk);

  //**********************************************************************************
  //Make it pretty...
  G4Colour  red   (1.,0.,0.);
  G4Colour  blue      (0.,0.,1.);
  G4Colour  mangenta  (237/255.,173/255.,255/255.);
  G4Colour  mangenta1 (104/255., 49/255., 94/255.);

  G4VisAttributes* CollimatorHousingVisAtt = new G4VisAttributes(mangenta1);
  CollimatorHousingVisAtt->SetVisibility(true);
  //CollimatorHousingVisAtt->SetForceSolid(true);//comment out by Jie
  //CollimatorHousingVisAtt->SetForceWireframe(true);
  CollimatorHousing_Logical->SetVisAttributes(CollimatorHousingVisAtt);

}

Here is the call graph for this function:

Here is the caller graph for this function:

void QweakSimCollimator::DestroyComponent

(

)

Definition at line 64 of file QweakSimCollimator.cc.

{
}

G4double QweakSimCollimator::GetCollimatorHousing_CenterPositionInZ ( )

inline

Definition at line 99 of file QweakSimCollimator.hh.

References CollimatorHousing_CenterZPosition.

Referenced by QweakSimCollimatorSupport::QweakSimCollimatorSupport().

{ return CollimatorHousing_CenterZPosition;}

Here is the caller graph for this function:

G4double QweakSimCollimator::GetCollimatorHousing_FullLengthInX ( )

inline

Definition at line 107 of file QweakSimCollimator.hh.

References CollimatorHousing_FullLength_X.

Referenced by QweakSimCollimatorSupport::QweakSimCollimatorSupport().

{return CollimatorHousing_FullLength_X;}

Here is the caller graph for this function:

G4double QweakSimCollimator::GetCollimatorHousing_FullLengthInY ( )

inline

Definition at line 108 of file QweakSimCollimator.hh.

References CollimatorHousing_FullLength_Y.

Referenced by QweakSimCollimatorSupport::QweakSimCollimatorSupport().

{return CollimatorHousing_FullLength_Y;}

Here is the caller graph for this function:

G4double QweakSimCollimator::GetCollimatorHousing_FullLengthInZ ( )

inline

Definition at line 109 of file QweakSimCollimator.hh.

References CollimatorHousing_FullLength_Z.

{return CollimatorHousing_FullLength_Z;}

G4LogicalVolume* QweakSimCollimator::getCollimatorHousingLogicalVolume ( )

inline

Definition at line 132 of file QweakSimCollimator.hh.

References CollimatorHousing_Logical.

{return CollimatorHousing_Logical;}

G4VPhysicalVolume* QweakSimCollimator::getCollimatorHousingPhysicalVolume ( )

inline

Definition at line 133 of file QweakSimCollimator.hh.

References CollimatorHousing_Physical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{return CollimatorHousing_Physical;}

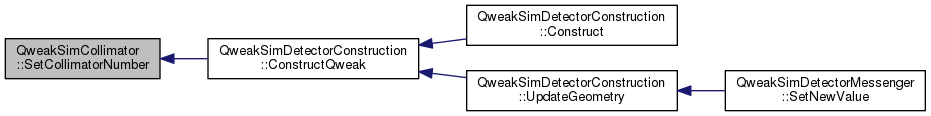

Here is the caller graph for this function:

G4int QweakSimCollimator::GetCollimatorNumber ( )

inline

Definition at line 130 of file QweakSimCollimator.hh.

References CollNum.

Referenced by ConstructCollimator().

{return CollNum;}

Here is the caller graph for this function:

void QweakSimCollimator::SetBeamlineCutoutDiameter ( G4double  dia )

inline

Definition at line 127 of file QweakSimCollimator.hh.

References BeamlineCutoutDiameter.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{BeamlineCutoutDiameter         = dia;}

Here is the caller graph for this function:

void QweakSimCollimator::SetCollimatorHousing_CenterPositionInZ

(

G4double

zPos

)

Sets the Z position of the Collimator Housing Center

Parameters

zPos	Z position along beam line

Definition at line 284 of file QweakSimCollimator.cc.

References CollimatorHousing_CenterZPosition, and CollimatorHousing_Physical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
//---------------------------------------------------------------------------------------------
//! Sets the Z position of the Collimator Housing Center
 /*!

 \param zPos Z position along beam line

 */
//---------------------------------------------------------------------------------------------

 CollimatorHousing_CenterZPosition = zPos;

 CollimatorHousing_Physical->SetTranslation(G4ThreeVector(0.,0., CollimatorHousing_CenterZPosition));
}

Here is the caller graph for this function:

void QweakSimCollimator::SetCollimatorHousing_FullLengthInX ( G4double  dim )

inline

Definition at line 103 of file QweakSimCollimator.hh.

References CollimatorHousing_FullLength_X.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{       CollimatorHousing_FullLength_X = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetCollimatorHousing_FullLengthInY ( G4double  dim )

inline

Definition at line 104 of file QweakSimCollimator.hh.

References CollimatorHousing_FullLength_Y.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{       CollimatorHousing_FullLength_Y = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetCollimatorHousing_FullLengthInZ ( G4double  dim )

inline

Definition at line 105 of file QweakSimCollimator.hh.

References CollimatorHousing_FullLength_Z.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{       CollimatorHousing_FullLength_Z = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetCollimatorHousingMaterial

(

G4String

materialName

)

Sets the material of the Collimator Housing

Parameters

materialName

Name of the material defined in class QweakSimG4Material

Definition at line 265 of file QweakSimCollimator.cc.

References CollimatorHousing_Logical.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{
//---------------------------------------------------------------------------------------------
//! Sets the material of the Collimator Housing
 /*!

 \param materialName Name of the material defined in class QweakSimG4Material

 */
//---------------------------------------------------------------------------------------------



  G4Material* pttoMaterial = G4Material::GetMaterial(materialName);
  if (pttoMaterial)
    CollimatorHousing_Logical->SetMaterial(pttoMaterial);
}

Here is the caller graph for this function:

void QweakSimCollimator::SetCollimatorNumber ( G4int  n )

inline

Definition at line 129 of file QweakSimCollimator.hh.

References CollNum.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{       CollNum = n;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutBackFullLength_X1 ( G4double  dim )

inline

Definition at line 116 of file QweakSimCollimator.hh.

References OctantCutOutBackFullLength_X1.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutBackFullLength_X1  = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutBackFullLength_X2 ( G4double  dim )

inline

Definition at line 117 of file QweakSimCollimator.hh.

References OctantCutOutBackFullLength_X2.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutBackFullLength_X2  = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutBackFullLength_Y ( G4double  dim )

inline

Definition at line 118 of file QweakSimCollimator.hh.

References OctantCutOutBackFullLength_Y.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutBackFullLength_Y   = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutBackInnerDiameter ( G4double  bid )

inline

Definition at line 122 of file QweakSimCollimator.hh.

References OctantCutOutBackInnerDiameter.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutBackInnerDiameter  = bid;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutBackOuterDiameter ( G4double  bod )

inline

Definition at line 123 of file QweakSimCollimator.hh.

References OctantCutOutBackOuterDiameter.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutBackOuterDiameter  = bod;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutDeltaPhiAngle ( G4double  dpa )

inline

Definition at line 125 of file QweakSimCollimator.hh.

References OctantCutOutDeltaPhiAngle.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutDeltaPhiAngle      = dpa;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutFrontFullLength_X1 ( G4double  dim )

inline

Definition at line 113 of file QweakSimCollimator.hh.

References OctantCutOutFrontFullLength_X1.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutFrontFullLength_X1 = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutFrontFullLength_X2 ( G4double  dim )

inline

Definition at line 114 of file QweakSimCollimator.hh.

References OctantCutOutFrontFullLength_X2.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutFrontFullLength_X2 = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutFrontFullLength_Y ( G4double  dim )

inline

Definition at line 115 of file QweakSimCollimator.hh.

References OctantCutOutFrontFullLength_Y.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutFrontFullLength_Y  = dim;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutFrontInnerDiameter ( G4double  fid )

inline

Definition at line 120 of file QweakSimCollimator.hh.

References OctantCutOutFrontInnerDiameter.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutFrontInnerDiameter = fid;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutFrontOuterDiameter ( G4double  fod )

inline

Definition at line 121 of file QweakSimCollimator.hh.

References OctantCutOutFrontOuterDiameter.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutFrontOuterDiameter = fod;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutRadialOffset ( G4double  dpa )

inline

Definition at line 126 of file QweakSimCollimator.hh.

References OctantCutOutRadialOffset.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutRadialOffset       = dpa;}

Here is the caller graph for this function:

void QweakSimCollimator::SetOctantCutOutStartingPhiAngle ( G4double  spa )

inline

Definition at line 124 of file QweakSimCollimator.hh.

References OctantCutOutStartingPhiAngle.

Referenced by QweakSimDetectorConstruction::ConstructQweak().

{OctantCutOutStartingPhiAngle   = spa;}

Here is the caller graph for this function:

Field Documentation

G4double QweakSimCollimator::BeamlineCutoutDiameter

private

Definition at line 83 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetBeamlineCutoutDiameter().

G4double QweakSimCollimator::CollimatorHousing_CenterZPosition

private

Definition at line 67 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), GetCollimatorHousing_CenterPositionInZ(), QweakSimCollimator(), and SetCollimatorHousing_CenterPositionInZ().

G4double QweakSimCollimator::CollimatorHousing_FullLength_X

private

Definition at line 63 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), GetCollimatorHousing_FullLengthInX(), QweakSimCollimator(), and SetCollimatorHousing_FullLengthInX().

G4double QweakSimCollimator::CollimatorHousing_FullLength_Y

private

Definition at line 64 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), GetCollimatorHousing_FullLengthInY(), QweakSimCollimator(), and SetCollimatorHousing_FullLengthInY().

G4double QweakSimCollimator::CollimatorHousing_FullLength_Z

private

Definition at line 65 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), GetCollimatorHousing_FullLengthInZ(), QweakSimCollimator(), and SetCollimatorHousing_FullLengthInZ().

G4LogicalVolume* QweakSimCollimator::CollimatorHousing_Logical

private

Definition at line 60 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), getCollimatorHousingLogicalVolume(), QweakSimCollimator(), and SetCollimatorHousingMaterial().

G4VPhysicalVolume* QweakSimCollimator::CollimatorHousing_Physical

private

Definition at line 61 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), getCollimatorHousingPhysicalVolume(), QweakSimCollimator(), and SetCollimatorHousing_CenterPositionInZ().

G4int QweakSimCollimator::CollNum

private

Definition at line 56 of file QweakSimCollimator.hh.

Referenced by GetCollimatorNumber(), and SetCollimatorNumber().

G4double QweakSimCollimator::OctantCutOutBackFullLength_X1

private

Definition at line 72 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutBackFullLength_X1().

G4double QweakSimCollimator::OctantCutOutBackFullLength_X2

private

Definition at line 73 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutBackFullLength_X2().

G4double QweakSimCollimator::OctantCutOutBackFullLength_Y

private

Definition at line 74 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutBackFullLength_Y().

G4double QweakSimCollimator::OctantCutOutBackInnerDiameter

private

Definition at line 78 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutBackInnerDiameter().

G4double QweakSimCollimator::OctantCutOutBackOuterDiameter

private

Definition at line 79 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutBackOuterDiameter().

G4double QweakSimCollimator::OctantCutOutDeltaPhiAngle

private

Definition at line 81 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutDeltaPhiAngle().

G4double QweakSimCollimator::OctantCutOutFrontFullLength_X1

private

Definition at line 69 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutFrontFullLength_X1().

G4double QweakSimCollimator::OctantCutOutFrontFullLength_X2

private

Definition at line 70 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutFrontFullLength_X2().

G4double QweakSimCollimator::OctantCutOutFrontFullLength_Y

private

Definition at line 71 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutFrontFullLength_Y().

G4double QweakSimCollimator::OctantCutOutFrontInnerDiameter

private

Definition at line 76 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutFrontInnerDiameter().

G4double QweakSimCollimator::OctantCutOutFrontOuterDiameter

private

Definition at line 77 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutFrontOuterDiameter().

G4double QweakSimCollimator::OctantCutOutRadialOffset

private

Definition at line 82 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutRadialOffset().

G4double QweakSimCollimator::OctantCutOutStartingPhiAngle

private

Definition at line 80 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), QweakSimCollimator(), and SetOctantCutOutStartingPhiAngle().

QweakSimMaterial* QweakSimCollimator::pMaterial

private

Definition at line 58 of file QweakSimCollimator.hh.

Referenced by ConstructCollimator(), and QweakSimCollimator().

---

The documentation for this class was generated from the following files:

• QweakSimCollimator.hh
• QweakSimCollimator.cc
